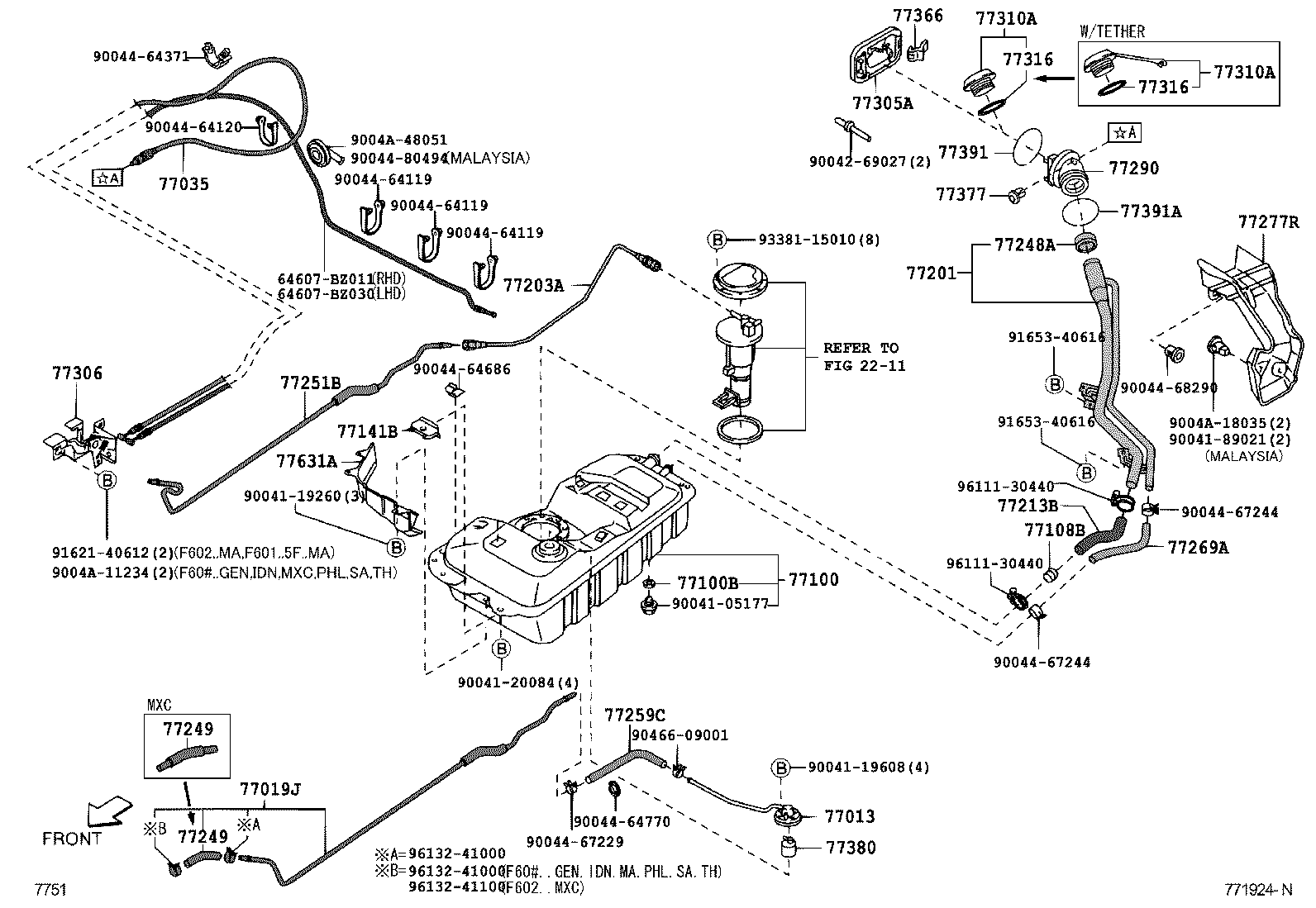

F602RM-GQMFJT (2006)
Toyota Avanza
(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-BZ050 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-BZ010 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-BZ020 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-BZ020 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B0010 |
F602..MXC,TH |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20030 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95331-04015 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 95331-04015 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-B0010 |
F602..MXC,TH |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-BZ012 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77277-BZ011 |
F60# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77293-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-B0030 |
F60# |
1 | ||
| 77305-BZ050 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-BZ010 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
F602..MXC,TH |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
F602..MXC,TH |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-0K010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77391-B0010 |
F60# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-BZ040 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77391-B0020 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| Common parts | ||||
| 64607-BZ011 | ||||
| 64607-BZ030 | ||||
| 90041-05177 | ||||
| 90041-19260 | ||||
| 90041-19608 | ||||
| 90041-20084 | ||||
| 90041-89021 | ||||
| 90042-69027 | ||||
| 90044-64119 | ||||
| 90044-64120 | ||||
| 90044-64371 | ||||
| 90044-64686 | ||||
| 90044-64770 | ||||
| 90044-67229 | ||||
| 90044-67244 | ||||
| 90044-68290 | ||||
| 90044-80494 | ||||
| 9004A-11234 | ||||
| 9004A-18035 | ||||
| 9004A-48051 | ||||
| 90466-09001 | ||||
| 91621-40612 | ||||
| 91653-40616 | ||||
| 93381-15010 | ||||
| 96111-30440 | ||||
| 96132-41000 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
(0608- )

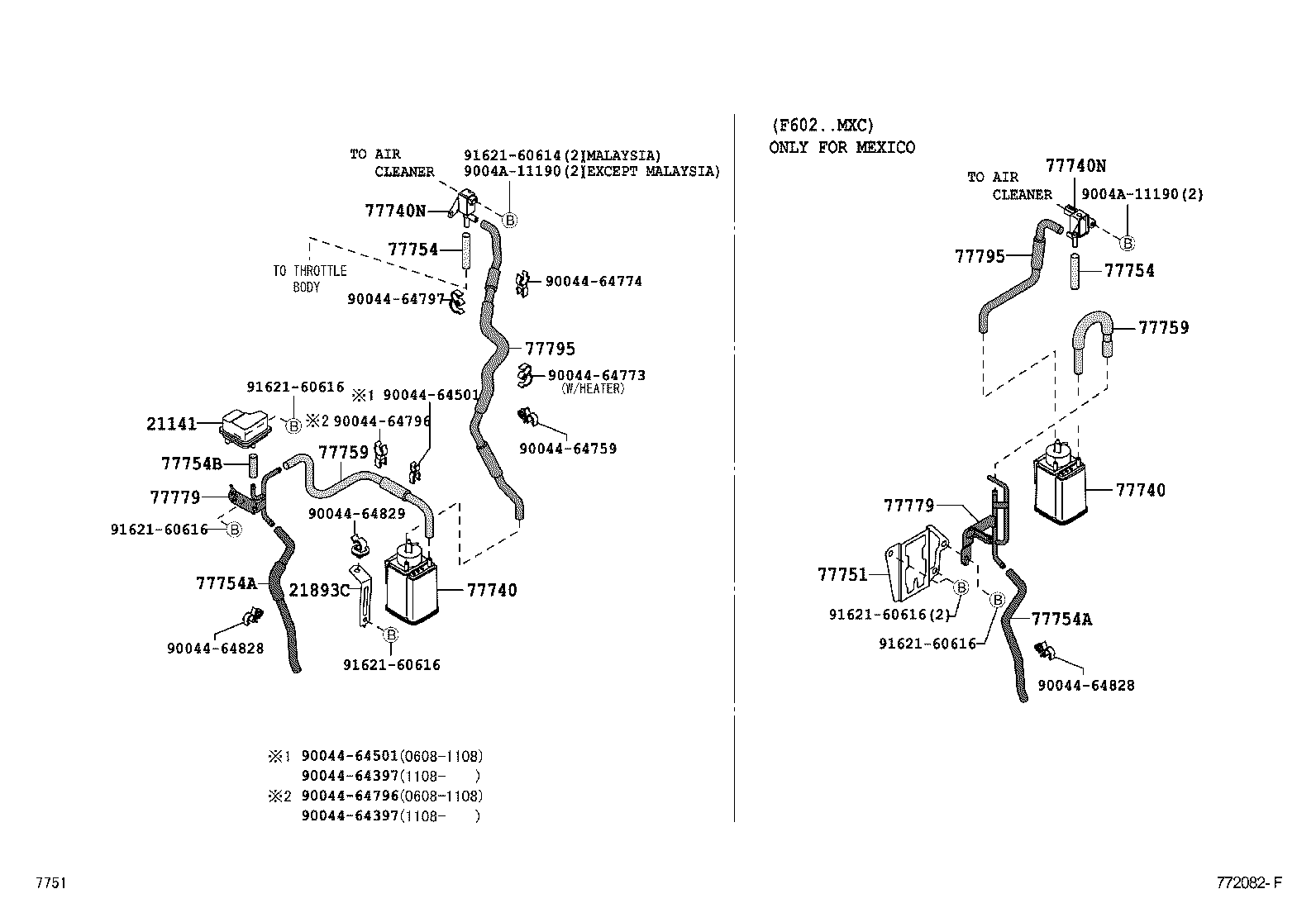

CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21141 - CHAMBER, SUCTION | ||||
| 21141-B0020 |
K3VE,3SZVE..F60#..GEN,IDN,PHL,SA,TH |
1 | ||
| 21141-BZ040 |
K3VE,3SZVE..F60#..GEN,IDN,PHL,SA,TH |
1 | ||
| 21893C - BRACKET | ||||
| 21893-BZ030 |
K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA;3SZVE..F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-BZ020 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-BZ020 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 17650-97207 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 17650-97207 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-BZ040 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA L=90 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-BZ040 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA L=90 |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77759-BZ030 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77759-BZ030 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77759-BZ040 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-BZ020 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH L=133 |
1 | ||
| 77759-BZ021 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH L=133 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-BZ020 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH L=133 |
1 | ||
| 77759-BZ021 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH L=133 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-BZ010 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-BZ010 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-BZ050 |
F602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA,TH);F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-BZ050 |
F602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA,TH);F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| Common parts | ||||
| 90044-64397 | ||||
| 90044-64501 | ||||
| 90044-64759 | ||||
| 90044-64773 | ||||
| 90044-64774 | ||||
| 90044-64796 | ||||
| 90044-64797 | ||||
| 90044-64828 | ||||
| 90044-64829 | ||||
| 9004A-11190 | ||||
| 91621-60614 | ||||
| 91621-60616 | ||||
