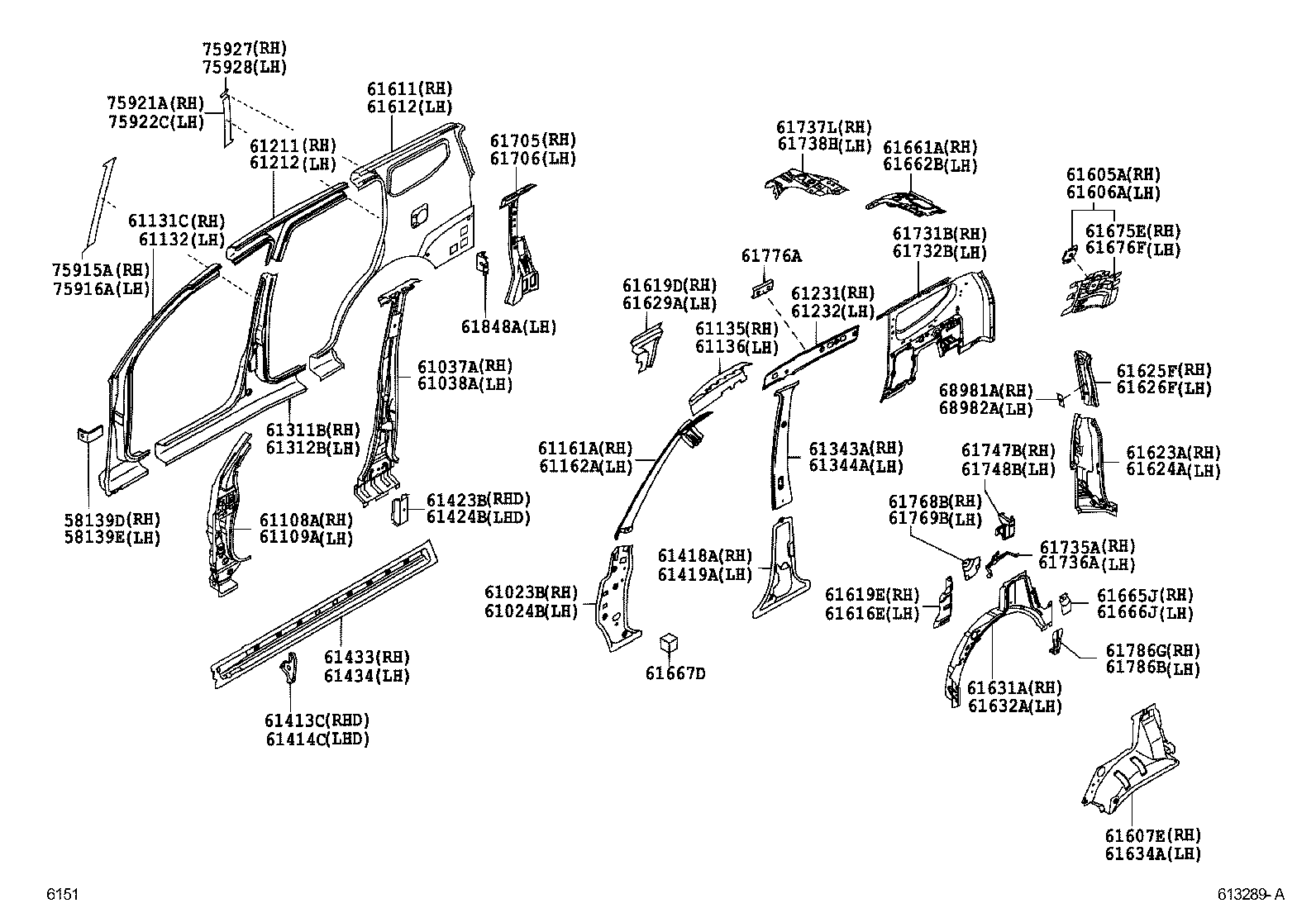

F602RM-GQMFJT (2006)
Toyota Avanza
(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58139D - BRACKET, HARNESS CLAMP | ||||
| 58139-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58139-BZ060 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58139E - BRACKET, HARNESS CLAMP | ||||
| 58139-BZ060 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58139-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-BZ250 |
F60#..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 61023-BZ021 |
F60#..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-BZ010 |
F60#..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 61024-BZ210 |
F60#..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-BZ160 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61037-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-BZ050 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61038-BZ190 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-BZ120 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61108-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61109-BZ110 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-BZ021 |
F60#..(CTM,DLX,E,GL,J,STD)..(SA,TH) |
1 | ||
| 61131-BZ031 |
F602..S..TH |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-BZ021 |
F60#..(CTM,DLX,E,GL,J,STD)..(SA,TH) |
1 | ||
| 61132-BZ031 |
F602..S..TH |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61161A - PILLAR, FRONT BODY, INNER RH | ||||
| 61161-BZ011 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 61161-BZ180 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61161-BZ010 |
F60# |
1 | ||
| 61162A - PILLAR, FRONT BODY, INNER LH | ||||
| 61162-BZ010 |
F60#..RHD |
1 | ||
| 61162-BZ011 |
F601..G;F602..(E,GL,J,S)..(GEN,IDN,SA,TH) |
1 | ||
| 61162-BZ190 |
F60#..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-BZ021 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-BZ021 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-BZ011 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 61231-BZ220 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61231-BZ010 |
F60# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-BZ010 |
F60# |
1 | ||
| 61232-BZ011 |
F601..G;F602..(E,GL,J,S)..(GEN,IDN,SA,TH) |
1 | ||
| 61232-BZ150 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-BZ031 |
F602..S..TH |
1 | ||
| 61311-BZ021 |
F601..CTM,DLX,STD;F602..(DLX,E,G,GL,J)..(GEN,MXC,SA,TH) |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-BZ021 |
F601..CTM,DLX,STD;F602..(DLX,E,G,GL,J)..(GEN,MXC,SA,TH) |
1 | ||
| 61312-BZ031 |
F602..S..TH |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-BZ020 |
F602;F601..5F..MA;F601..(DLX,E,G,J,STD,XI)..(GEN,IDN,PHL,SA) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-BZ020 |
F60#..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,MXC,PHL,SA,TH) |
1 | ||
| 61344-BZ140 |
F60#..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,MXC,PHL,SA,TH) |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-BZ010 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61419-BZ011 |
F601..G;F602..(E,GL,J,S)..(GEN,IDN,SA,TH) |
1 | ||
| 61419-BZ010 |
F60# |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-BZ010 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 61433 - PANEL, ROCKER, INNER RH | ||||
| 61433-BZ100 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61433-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61434 - PANEL, ROCKER, INNER LH | ||||
| 61434-BZ090 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61434-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-BZ020 |
F601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-BZ031 |
F602..S..TH |
1 | ||
| 61611-BZ021 |
F601..CTM,DLX,STD;F602..(DLX,E,G,GL,J)..(GEN,MXC,SA,TH) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-BZ021 |
F601..CTM,DLX,STD;F602..(DLX,E,G,GL,J)..(GEN,MXC,SA,TH) |
1 | ||
| 61612-BZ031 |
F602..S..TH |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61616-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61619E - REINFORCEMENT, QUARTER PANEL | ||||
| 61615-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61623-BZ130 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-BZ020 |
F602..G..GEN;F60#..MXC,SA,TH |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-BZ020 |
F602..G..GEN;F60#..MXC,SA,TH |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-BZ020 |
F601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH) |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61665J - PLATE, SEAT BELT ANCHORAGE, RH | ||||
| 61665-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61666J - PLATE, SEAT BELT ANCHORAGE, LH | ||||
| 61666-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 61675E - REINFORCEMENT, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61675-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61676F - REINFORCEMENT, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61676-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-BZ011 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,J,STD |
1 | ||
| 61705-BZ010 |
F602;F601..G..GEN;F601..IDN,MA,PHL,SA |
1 | ||
| 61705-BZ030 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-BZ010 |
F602;F601..G..GEN;F601..IDN,MA,PHL,SA |
1 | ||
| 61706-BZ030 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 61706-BZ011 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,J,STD |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-BZ020 |
F602..G..GEN;F60#..(DLX,E,GL,J,S,STD)..(MXC,SA,TH) |
1 | ||
| 61731-BZ170 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-BZ160 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 61732-BZ020 |
F602..G..GEN;F60#..(DLX,E,GL,J,S,STD)..(MXC,SA,TH) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61737L - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61738H - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61747B - REINFORCEMENT, ROOF SIDE, INNER REAR, RH | ||||
| 61747-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61748-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-BZ010 |
F602;F601..IDN,PHL,SA;F601..RHD..5F..(GEN,MA) |
1 | ||
| 61776A - NUT, W/PLATE | ||||
| 61776-BZ010 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 61776-BZ020 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 61786B - BRACKET, REAR BUMPER SIDE, LH | ||||
| 61786-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61786G - BRACKET, REAR BUMPER SIDE | ||||
| 61786-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 68981-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 68981-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 75915A - TAPE, BLACK OUT CENTER PILLAR, RH | ||||
| 75915-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75916A - TAPE, BLACK OUT CENTER PILLAR, LH | ||||
| 75916-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75921A - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75922C - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75927 - TAPE, BLACK OUT, NO.4 RH | ||||
| 75923-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 75928 - TAPE, BLACK OUT, NO.4 LH | ||||
| 75924-BZ010 |
F601..RHD..(GEN,IDN);F602..(G,GL,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
