F602RM-GMSFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

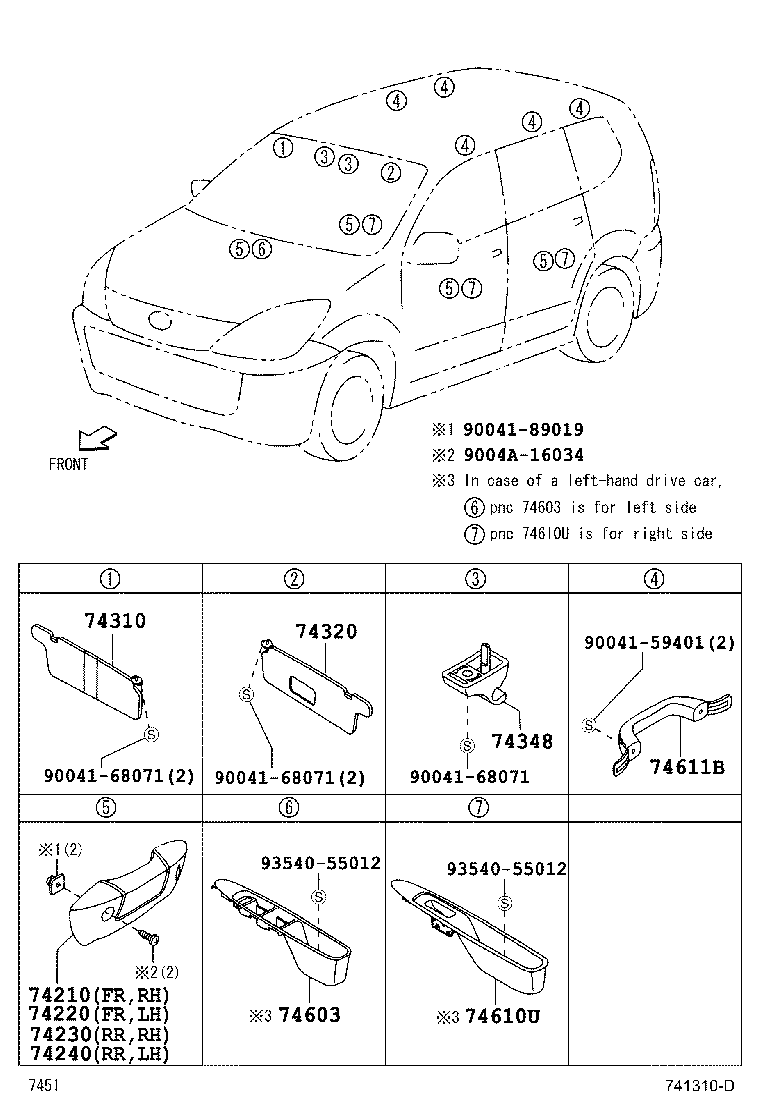

Click highlighted areas on diagram

diagram 74210 74220 74230 74240 74310 74320 74348 74603 74610U 74611B 9004159401 9004168071 9004168071 9004168071 9004189019 9004A16034 9354055012 9354055012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-BZ010A0

F602..E,J;F601..E,G,STD;F602..S..(GEN,IDN)

IVORY,TRIM0#

 1
74310-BZ010E0

F602..E,J;F601..5F..MA;F60#..RHD..(GEN,IDN)

GREGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-BZ020A0

F602..E,J;F601..G..IDN;F602..S..(GEN,IDN);F601..RHD..(GEN,MA)

IVORY,TRIM0#

 1
74320-BZ110E0

F602..G..GEN

GREGE,TRIM4#

 1
74320-BZ020E0

F602..E,J;F601..5F..MA;F60#..RHD..(G,S)..(GEN,IDN)

GREGE,TRIM4#

 1
74320-BZ020B0

F602..RHD..(DLX,G,GL)

LT.GRAY,TRIM1#

 1
74320-BZ110A0

F602..G..GEN

IVORY,TRIM0#

 1
74348 - HOLDER, VISOR
74348-87Z01A0

F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)

IVORY,TRIM0#

 2
74348-87Z01E0

F601..5F..MA;F602..(E,GL,J)..(MA,MXC,TH);F60#..(E,G,S,XI)..(GEN,IDN,PHL)

GREGE,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74641-BZ010E0

F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)

SANDAL WOOD,TRIM0#,DRIVER.

 1
74641-BZ010E1

F602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)

ASH BROWN,TRIM4#,DRIVER.

 1
74610U - GRIP ASSY, ASSIST
74642-BZ010E0

F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)

SANDAL WOOD,TRIM0#

 3
74642-BZ010E1

F602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)

ASH BROWN,TRIM4#

 3
74611B - GRIP, ASSIST
74611-BZ060A0

F601..G..IDN;F602..S..(GEN,IDN);F60#..(E,G,GL,J)..(GEN,MA,MXC,SA,TH)

IVORY,TRIM0#

 5
74611-BZ060E0

F601..G;F601..5F..MA;F602..S..(GEN,IDN,MA);F602..(E,G,GL,J)..(GEN,MA,MXC,TH)

GREGE,TRIM4#

 5
Common parts
90041-59401
90041-68071
90041-89019
9004A-16034
93540-55012
