F602RM-GMSFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

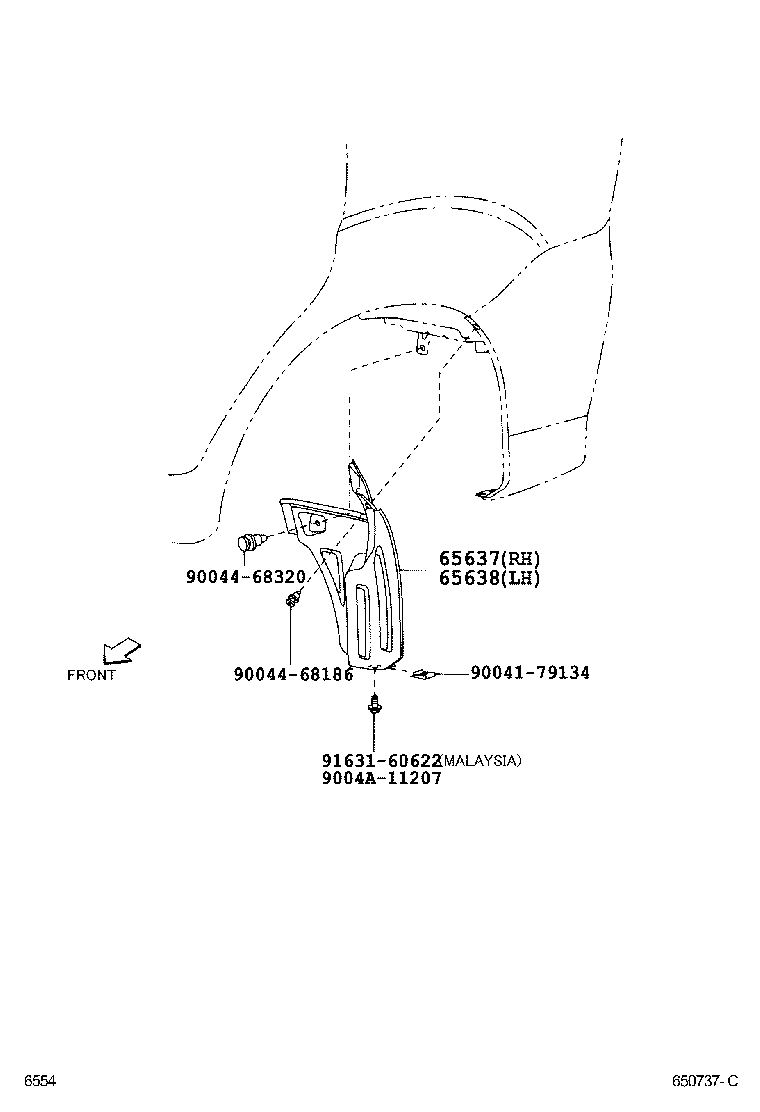

Click highlighted areas on diagram

diagram 65637 65638 9004179134 9004468186 9004468320 9004A11207 9163160622
Part # Description Qty Price
65637 - LINER, REAR WHEEL HOUSE, RH
65637-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
Common parts
90041-79134
90044-68186
90044-68320
9004A-11207
91631-60622
