F602RM-GMDFJT (2006)
Toyota Avanza
(0608- )

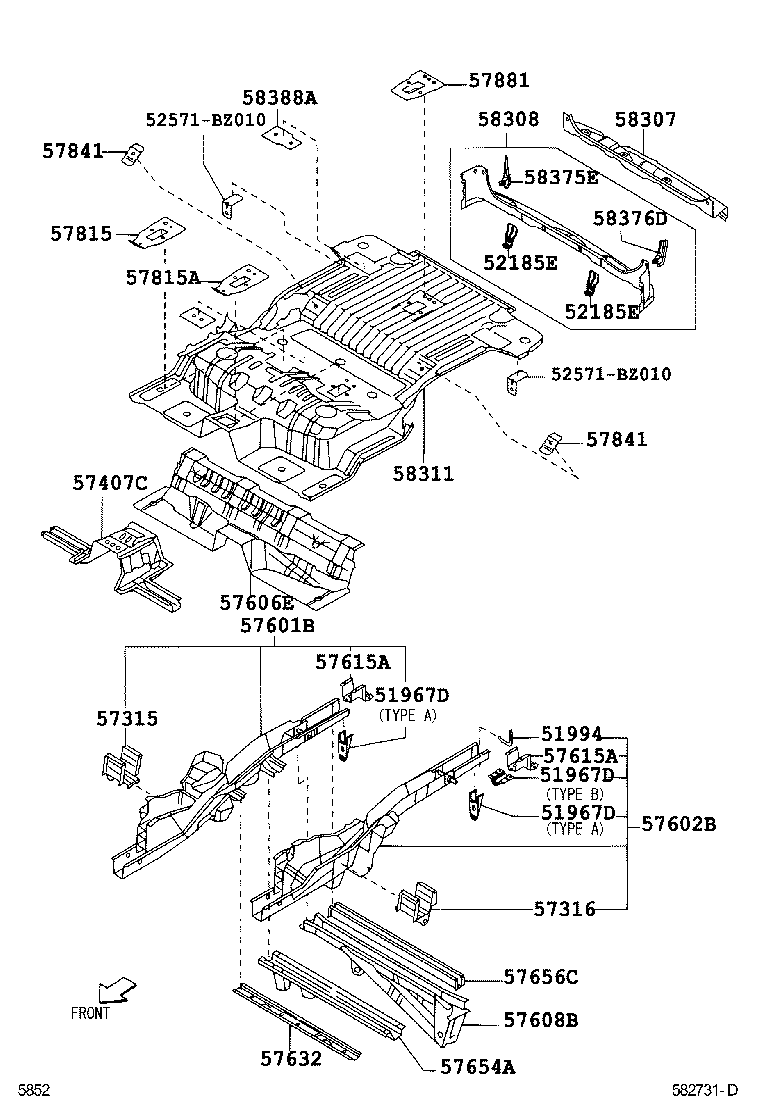

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51096-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE A |
2 | ||
| 51095-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE B |
1 | ||
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51096-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE A |
2 | ||
| 51095-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE B |
1 | ||
| 51967D - HOOK SUB-ASSY,REAR | ||||
| 51096-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE A |
2 | ||
| 51095-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA TYPE B |
1 | ||
| 51994 - HANGER, EXHAUST PIPE, NO.4 | ||||
| 51994-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 52185-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 52185E - BRACKET, REAR BUMPER SIDE MOUNTIN, RH | ||||
| 52185-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 52185-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-BZ021 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57315-BZ022 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57315-BZ140 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-BZ021 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57316-BZ130 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57316-BZ022 |
F602..G..GEN;F602..MXC,SA,TH;F601..CTM,DLX,STD |
1 | ||
| 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 | ||||
| 57407-BZ040 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 57407-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 57601B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH | ||||
| 57601-BZ021 |
F60#..SA,TH |
1 | ||
| 57601-BZ024 |
F60#..SA,TH |
1 | ||
| 57601-BZ023 |
F60#..SA,TH |
1 | ||
| 57602B - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH | ||||
| 57602-BZ021 |
F60#..SA,TH |
1 | ||
| 57602-BZ023 |
F60#..SA,TH |
1 | ||
| 57602-BZ024 |
F60#..SA,TH |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-BZ032 |
F602..PHL;F601..4AT..G;F602..RHD..(GEN,IDN,SA,TH);F601..(CTM,DLX,J,STD,XI)..(IDN,PHL,SA) |
1 | ||
| 57606-BZ130 |
F602..PHL;F601..G..GEN;F601..IDN,PHL,SA;F602..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-BZ021 |
F601..CTM,STD;F60#..(DLX,GL,J)..(GEN,MXC,TH) |
1 | ||
| 57608-BZ031 |
F602..G..GEN;F60#..(DLX,E,GL,S)..(SA,TH) |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
2 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-BZ010 |
F602..RHD;F601..5F..MA;F602..MXC,PHL;F601..GEN,IDN,PHL,SA |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-BZ010 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-BZ010 |
F602..RHD;F601..5F..MA;F602..MXC,PHL;F601..GEN,IDN,PHL,SA |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-BZ021 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 57815A - REINFORCEMENT, BELT ANCHOR, RH | ||||
| 57807-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-BZ040 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57841-BZ030 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57841-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-BZ040 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57841-BZ030 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57841-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 57881 - REINFORCEMENT, BELT ANCHOR, NO.3 | ||||
| 57881-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-BZ020 |
F602..PHL;F60#..RHD..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,SA,TH) |
1 | ||
| 58308-BZ170 |
F602..PHL;F60#..RHD..(DLX,E,G,GL,J,S,STD,XI)..(GEN,IDN,SA,TH) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-BZ040 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58311-BZ041 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58375E - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58375-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58375-BZ100 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58376D - REINFORCEMENT, BODY LOWER BACK, LH | ||||
| 58376-BZ010 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 58376-BZ080 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 52571-BZ010 | ||||
