F602RM-GMDFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )CTM,DLX,E,G,GL,J,S,STD

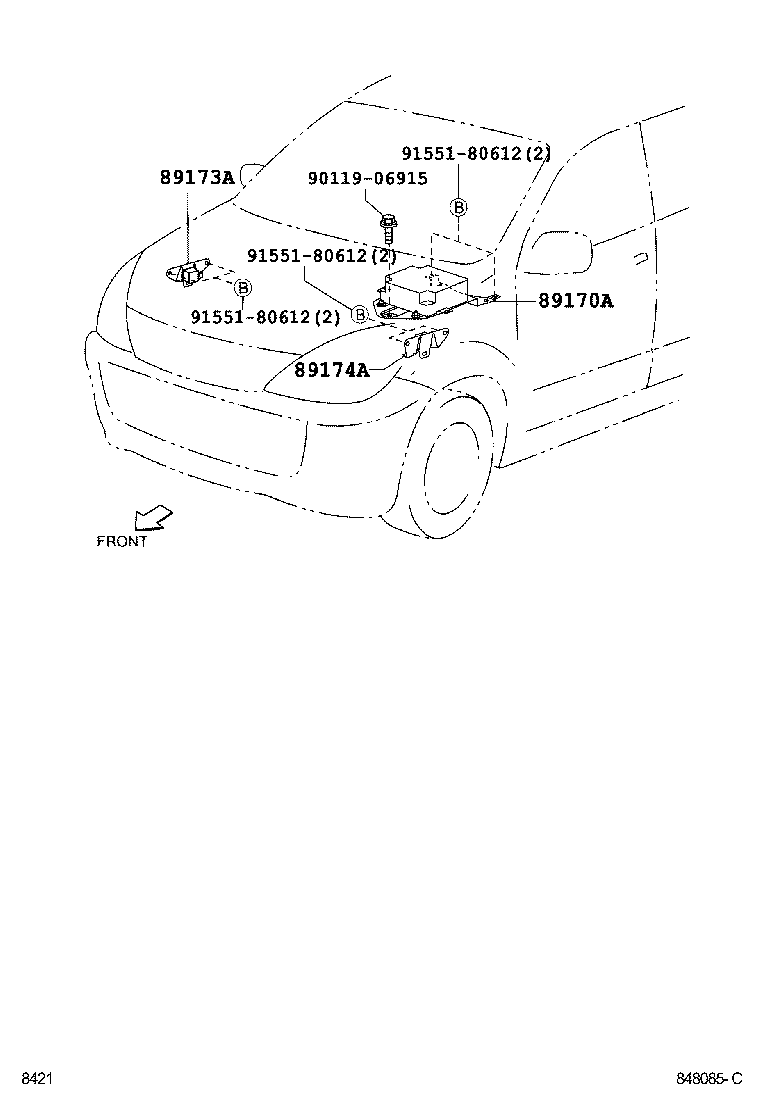

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 9011906915 9155180612 9155180612 9155180612
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-BZ030

F601..DLX..SA;F602..(DLX,G,GL)..(GEN,SA)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-BZ010

F602..G..GEN;F60#..(DLX,G,GL,S)..(MXC,PHL,SA,TH)

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-BZ020

F602..G..GEN;F60#..(DLX,G,GL,S)..(MXC,PHL,SA,TH)

 1
Common parts
90119-06915
91551-80612
