F602LM-GMMFJ (2006)

Toyota Avanza

Production Oct 2006 - Sep 9999
Engine 3SZVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

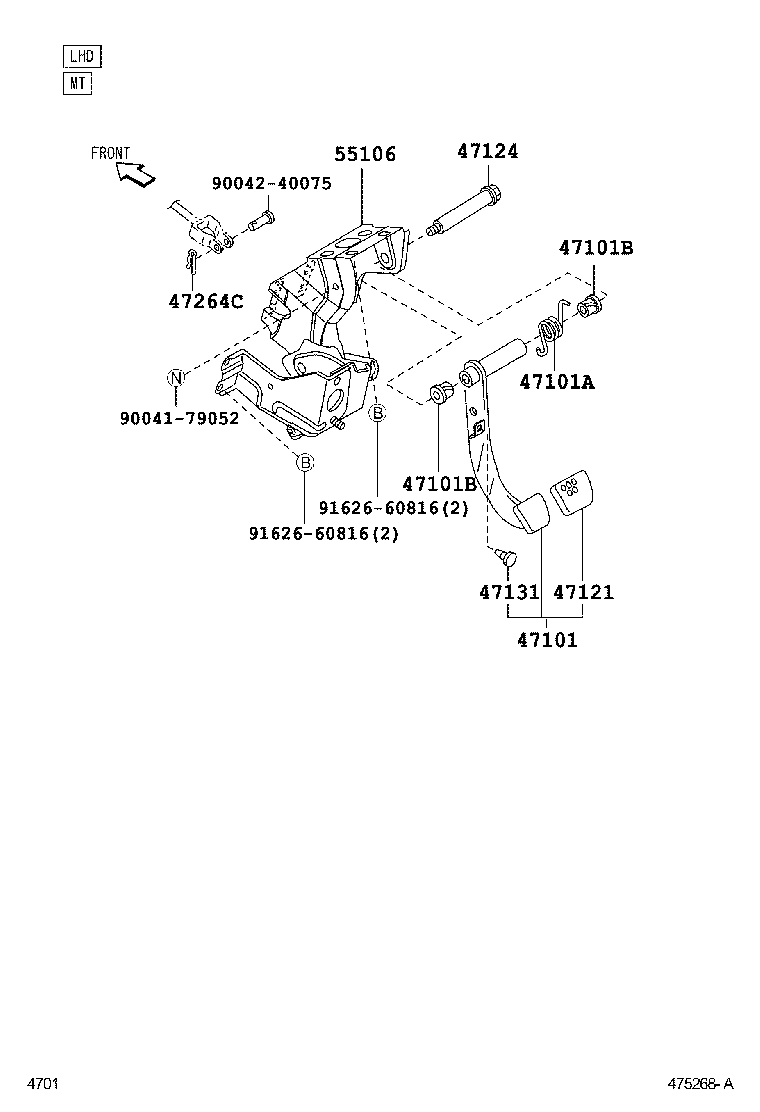

ILLUST NO. 5 OF 6(0610- )F602..LHD..5F

Click highlighted areas on diagram

LHD MT

diagram 47101 47101A 47101B 47101B 47121 47124 47131 47264C 55106 9004179052 9004240075 9162660816 9162660816
Part # Description Qty Price
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-BZ090

F602..LHD..5F

 1
Common parts
90041-79052
90042-40075
91626-60816
