F601RM-GQMFJT (2004)
Toyota Avanza
Production
Apr 2004
-
Aug 2006
Engine
K3VE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0404-0608)WVVT

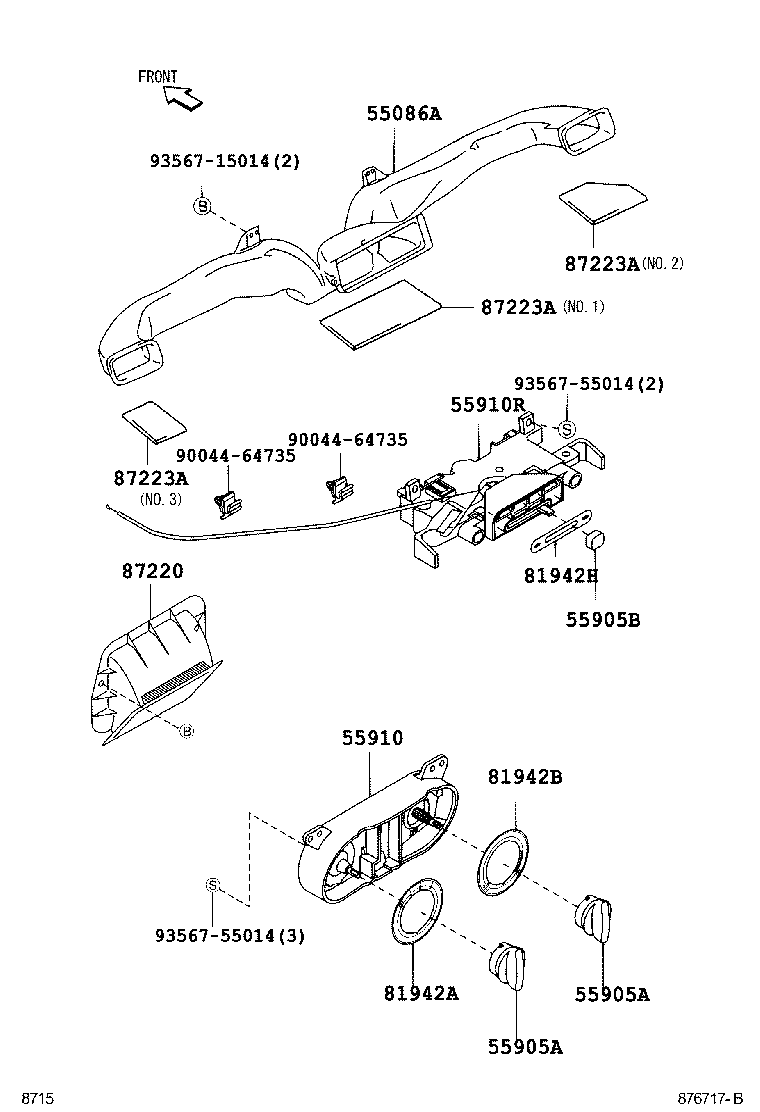

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-BZ010 |
F601 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D040 |
F601 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-0D040 |
F601 |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-BZ010 |
F601..WVVT |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-BZ010 |
F601 |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-BZ020 |
F601..WVVT |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-BZ010 |
F601 |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-BZ020 |
F601 |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81942-BZ030 |
F601..WVVT |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-BZ010 |
F601..WVVT |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| 87223A - PAD, AIR DUCT | ||||
| 87223-BZ020 |
F601 NO.1 |
1 | ||
| 87223-BZ010 |
F601 NO.3 |
1 | ||
| 87223-BZ030 |
F601 NO.2 |
1 | ||
| Common parts | ||||
| 90044-64735 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
