F601RM-GQMFJT (2004)

Toyota Avanza

Production Apr 2004 - Aug 2006
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0404-0608)TH

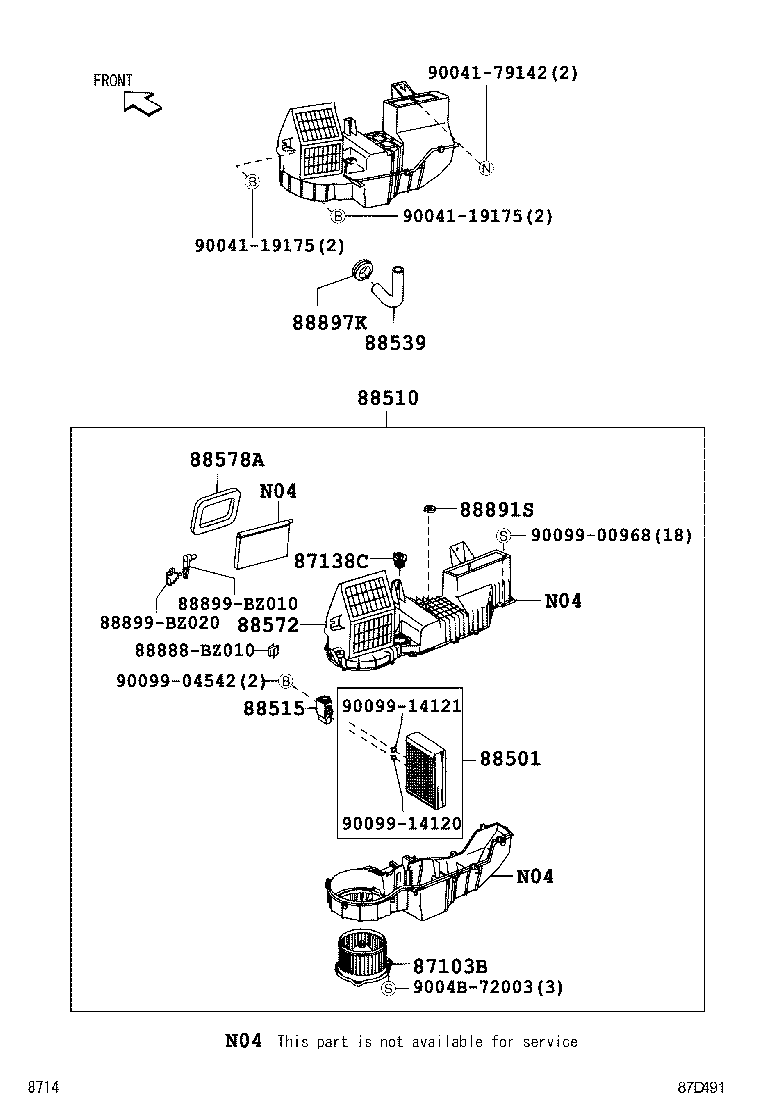

Click highlighted areas on diagram

L/HEATER

diagram 87103B 87138C 88501 88510 88515 88539 88572 88578A 88888BZ010 88891S 88897K 88899BZ010 88899BZ020 9004119175 9004119175 9004179142 9004B72003 9009900968 9009904542 9009914120 9009914121
Part # Description Qty Price
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-BZ020

F601..WVVT

 1
87138C - RESISTOR, BLOWER
87138-87401

F601..WVVT

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-BZ011

F601..WVVT

 1
88510 - UNIT ASSY, COOLER
88510-BZ020

F601..WVVT..(BRU,IDN,TH)

 1
88515 - VALVE, COOLER EXPANSION
88515-52020

F601..WVVT..(BRU,IDN,TH)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-BZ010

F601..BRU,IDN,TH

 1
88572 - CASE, COOLER AIR OUTLET
88521-BZ010

F601..WVVT

 1
88578A - PACKING, COOLER STABILIZER AMPLIFIER
9004B-54002

F601..WVVT

 1
88891S - COVER, COOLER, NO.1
88891-50060

F601..WVVT

 1
88897K - GROMMET, (FOR COOLER PIPE)
88897-87Z13

F601..BRU,IDN,TH

 1
Common parts
88888-BZ010
88899-BZ010
88899-BZ020
90041-19175
90041-79142
9004B-72003
90099-00968
90099-04542
90099-14120
90099-14121

(0404-0608)TH

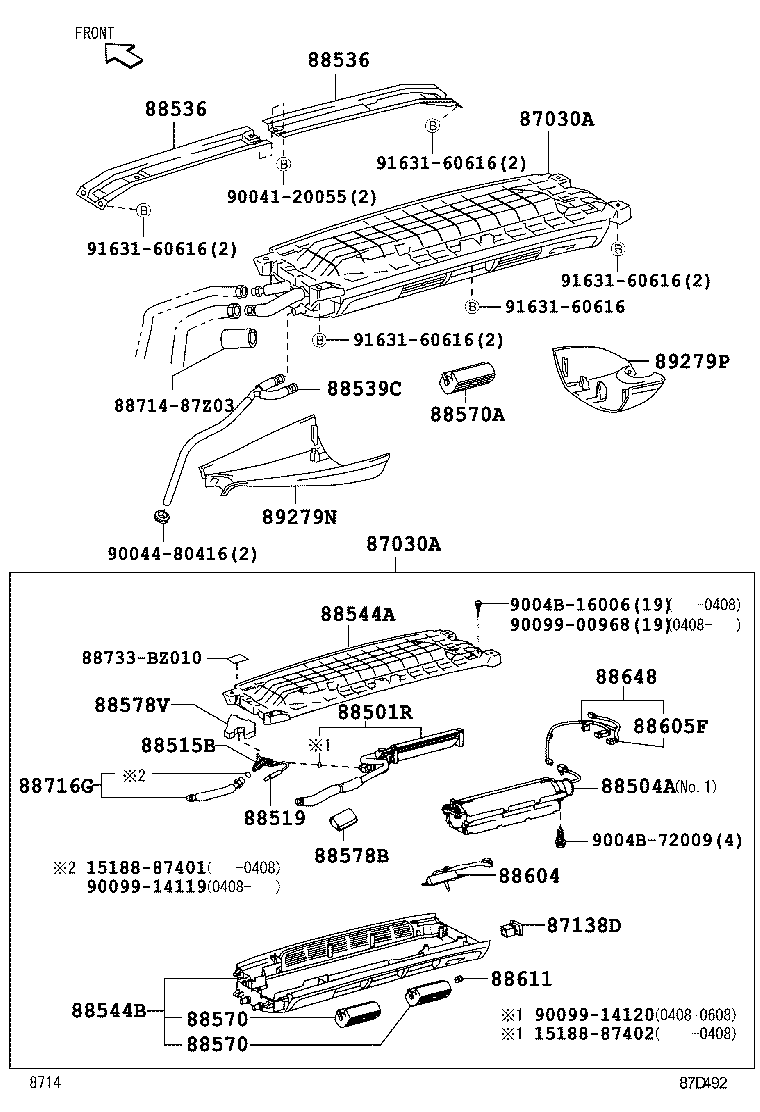

Click highlighted areas on diagram

DUAL AIR-CON

diagram 1518887401 1518887402 87030A 87030A 87138D 88501R 88504A 88515B 88519 88536 88536 88539C 88544A 88544B 88570 88570 88570A 88578B 88578V 88604 88605F 88611 88648 8871487Z03 88716G 88733BZ010 89279N 89279P 9004120055 9004480416 9004B16006 9004B72009 9009900968 9009914119 9009914120 9163160616 9163160616 9163160616 9163160616 9163160616
Part # Description Qty Price
87030A - UNIT ASSY, COOLING, REAR
87030-BZ010

F601..TH

 1
87030-BZ030

F601..TH

 1
87030A - UNIT ASSY, COOLING, REAR
87030-BZ010

F601..TH

 1
87030-BZ030

F601..TH

 1
87138D - RESISTOR, BLOWER (REAR)
88635-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-BZ010

F601..TH

 1
88304-BZ020

F601..WVVT..(BRU,IDN,TH)

 1
88504A - CASE SUB-ASSY, BLOWER
88504-BZ010

F601..5F..TH;F601..4AT..(MA,TH);F601..5F..(G,GL)..(IDN,MA)

NO.1

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88519 - HOLDER, REMOTE BULB
88519-87701

F601..E..TH;F601..G,GL,LIMD,S

 1
88536 - BRACKET, COOLING UNIT, NO.1
88688-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 2
88536 - BRACKET, COOLING UNIT, NO.1
88688-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 2
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-BZ020

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88544A - CASE, COOLER BLOWER, UPPER
88502-BZ040

F601..E..TH;F601..G,GL,LIMD,S

 1
88544B - CASE, COOLER BLOWER, LOWER
88502-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 2
88570A - GRILLE ASSY, AIR OUTLET
87125-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-12100

F601..E..TH;F601..G,GL,LIMD,S

 1
88578V - PACKING, COOLING UNIT, NO.3
88619-BZ080

F601..WVVT..(BRU,IDN,TH)

 2
88604 - PANEL SUB-ASSY, COOLER CONTROL
88604-BZ010

F601..E..TH;F601..G,GL,LIMD,S

 1
88605F - FUSE(FOR COOLER WIRING HARNESS)
82606-B0010

F601..TH;F601..G..LVVT

 1
88611 - KNOB, COOLER CONTROL SWITCH
88611-BZ070

F601..E..TH;F601..G,GL,LIMD,S

 1
88648 - WIRING, COOLER, NO.1
88605-BZ040

F601..E..TH;F601..G,GL,LIMD,S

 1
88716G - PIPE, COOLER REFRIGERANT LIQUID, G
9004B-91001

F601..E..TH;F601..G,GL,LIMD,S

 1
89279N - COVER
89279-BZ010

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
89279-BZ011B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

LT.GRAY,TRIM1#

 1
89279P - COVER
89279-BZ020

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

 1
89279-BZ021B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

LT.GRAY,TRIM1#

 1
Common parts
15188-87401
15188-87402
88714-87Z03
88733-BZ010
90041-20055
90044-80416
9004B-16006
9004B-72009
90099-00968
90099-14119
90099-14120
91631-60616
