F601RM-GMRFJN (2006)
Toyota Avanza

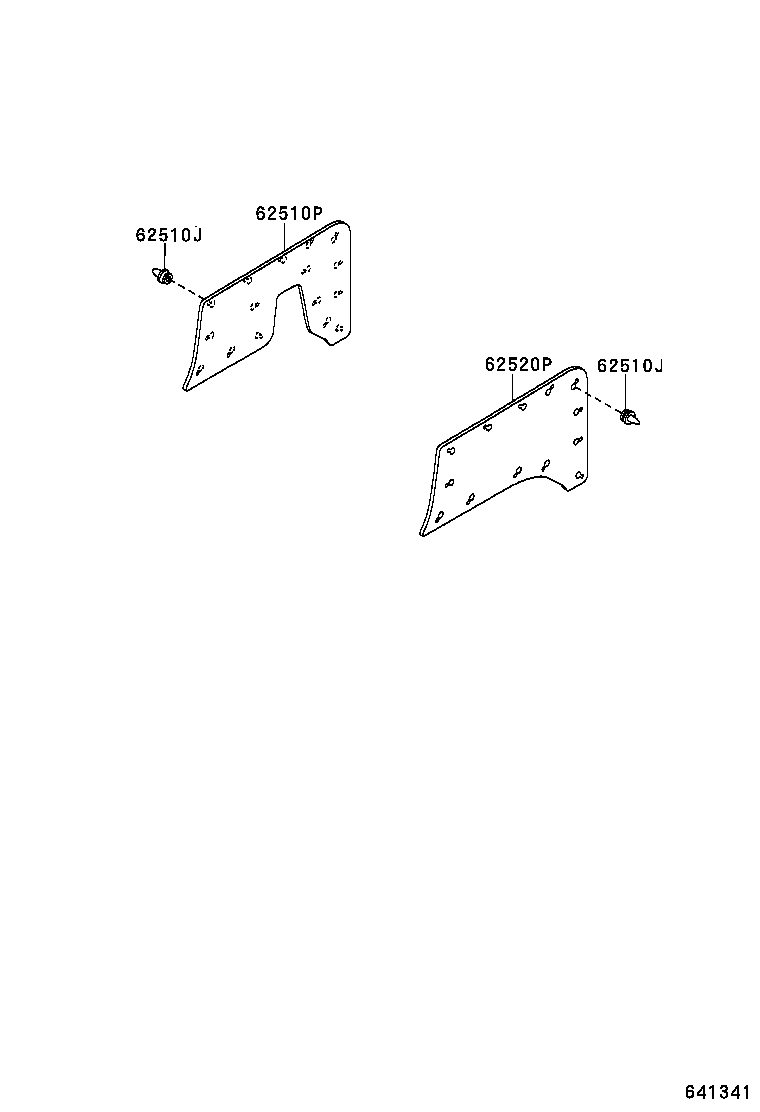

(0608- )DLX..GEN ; (0608- )F601..CTM,J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-87707 |
F601..CTM,J;F601..DLX..GEN |
30 | ||
| 67771-BZ060 |
F601..CTM,J;F601..DLX..GEN |
30 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-87707 |
F601..CTM,J;F601..DLX..GEN |
30 | ||
| 67771-BZ060 |
F601..CTM,J;F601..DLX..GEN |
30 | ||

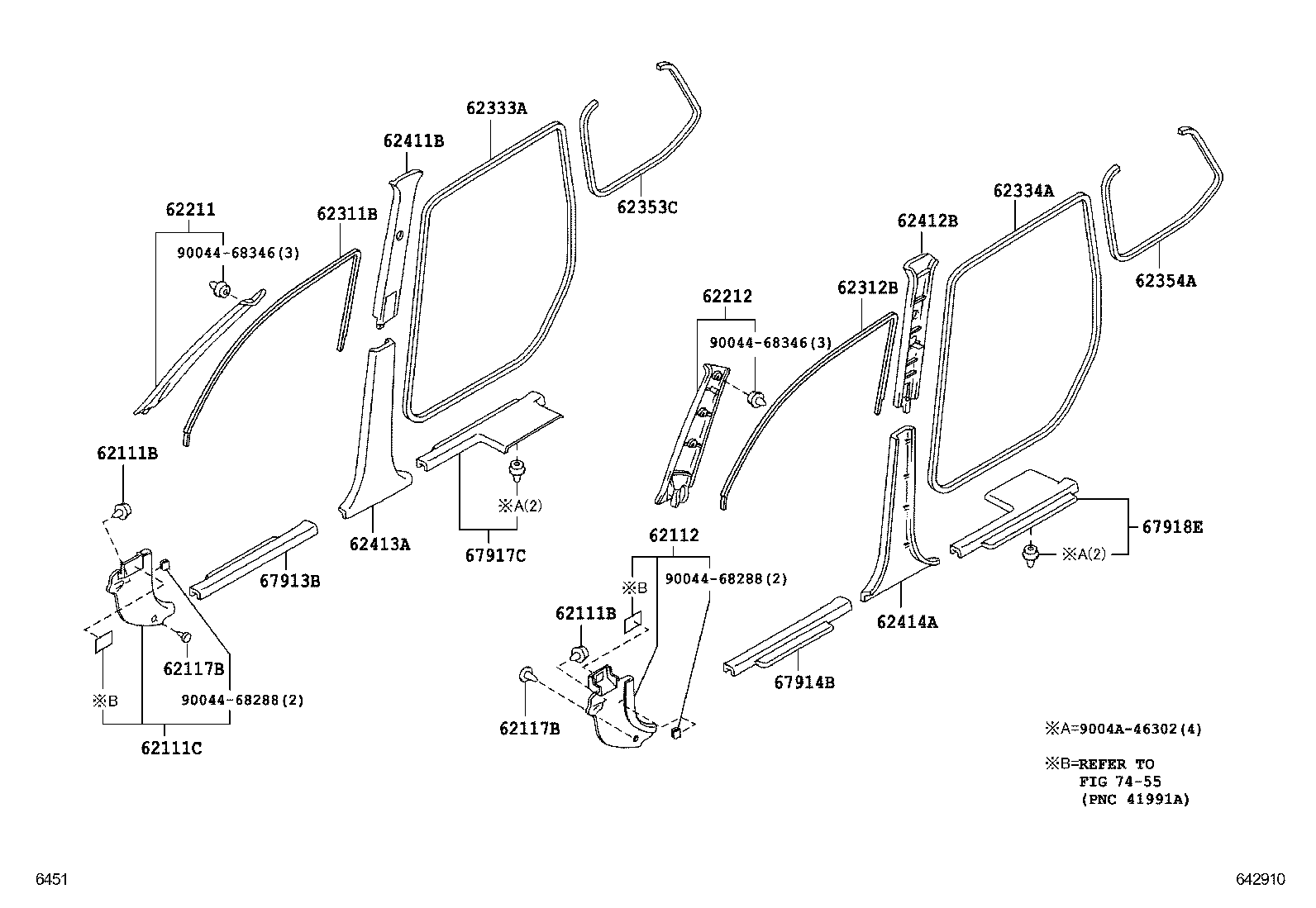

(0608-1108)DLX..GEN ; (0608-1108)F601..CTM,J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ010B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ011B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ010B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62211-BZ010B1 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ010B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ011B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-BZ010B1 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ010B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62212-BZ011B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ020B0 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62333-BZ110 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ020B0 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62333-BZ110 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62353C - TRIM, QUARTER WINDOW INSIDE, RH | ||||
| 62353-B0010 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62354A - TRIM, QUARTER WINDOW INSIDE, LH | ||||
| 62353-B0010 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ020A0 |
F602..MXC;F60#..(DLX,E,STD)..(IDN,SA) IVORY,TRIM0# |
1 | ||
| 62411-BZ010B1 |
F601..E..TH;F601..G,GL,LIMD,S LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ020B1 |
F60#..DLX,STD LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010B1 |
F601..E..TH;F601..G,GL,LIMD,S LT.GRAY,TRIM1# |
1 | ||
| 62412-BZ020A0 |
F602..MXC;F60#..(DLX,E,STD)..(IDN,SA) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62412-BZ020B1 |
F60#..DLX,STD LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62413-BZ020B0 |
F602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ020B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020B0 |
F602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67913-BZ010B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ010B0 |
F60#..(DLX,GL,STD)..SA DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ020B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ010B0 |
F60#..(DLX,GL,STD)..SA DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ011B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ020B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 7455 | ||||

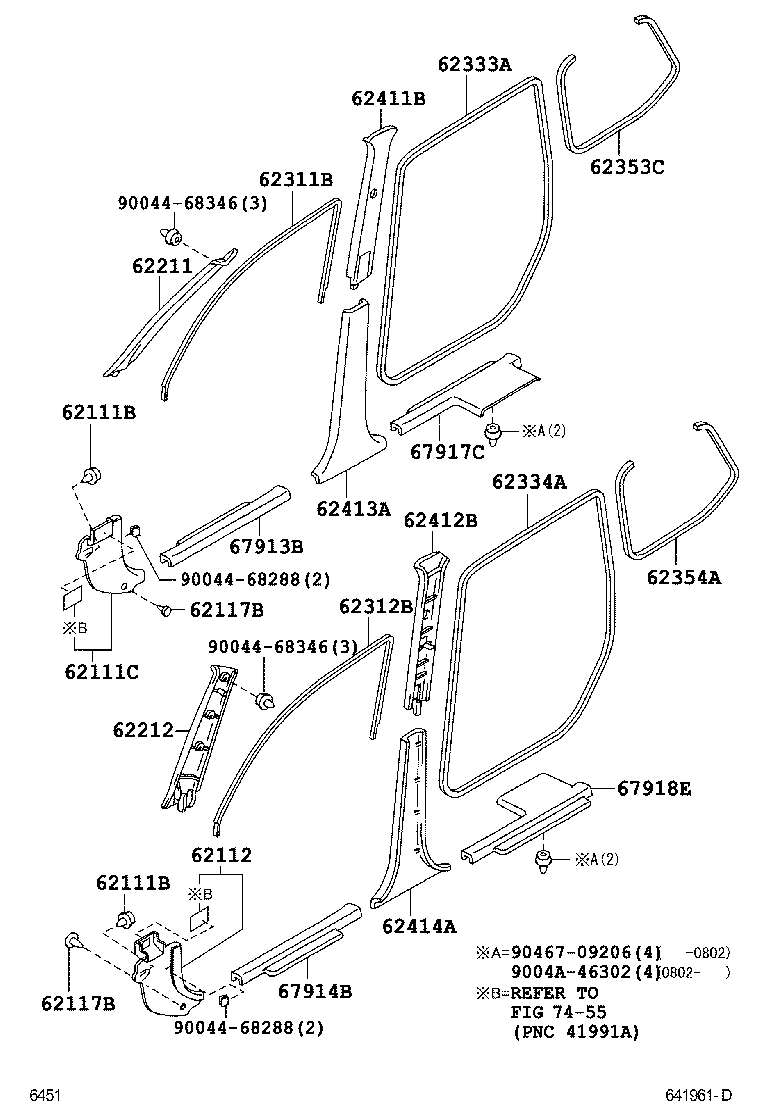

(1108- )DLX..GEN ; (1108- )F601..CTM,J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 9004A-46131B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46131A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46131B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62111-BZ011B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62111-BZ010B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ010A0 |
F602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD) IVORY,TRIM0# |
1 | ||
| 62112-BZ011B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62112-BZ010B0 |
F60#..(CTM,DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 9004A-46132A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
2 | ||
| 9004A-46132B0 |
F601 DK.GRAY,TRIM1# |
2 | ||
| 9004A-46132B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62211-BZ010B1 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ010B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62211-BZ011B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-BZ010B1 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ010B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62212-BZ010A0 |
F602..DLX,E,G,GL,J;F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62212-BZ011B1 |
F601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH) LT.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-BZ011 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62333-BZ020B0 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62333-BZ110 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62333-BZ020B0 |
F601 LT.GRAY,TRIM1# |
1 | ||
| 62333-BZ120 |
F602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 62333-BZ110 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62353C - TRIM, QUARTER WINDOW INSIDE, RH | ||||
| 62353-B0010 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62354A - TRIM, QUARTER WINDOW INSIDE, LH | ||||
| 62353-B0010 |
F601..CTM,J;F601..DLX..GEN |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-BZ020A0 |
F602..MXC;F60#..(DLX,E,STD)..(IDN,SA) IVORY,TRIM0# |
1 | ||
| 62411-BZ010B1 |
F601..E..TH;F601..G,GL,LIMD,S LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ020B1 |
F60#..DLX,STD LT.GRAY,TRIM1# |
1 | ||
| 62411-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-BZ010B1 |
F601..E..TH;F601..G,GL,LIMD,S LT.GRAY,TRIM1# |
1 | ||
| 62412-BZ020A0 |
F602..MXC;F60#..(DLX,E,STD)..(IDN,SA) IVORY,TRIM0# |
1 | ||
| 62412-BZ010E0 |
F601..G;F602..E,G,J;F601..5F..MA;F602..S..(GEN,IDN,MA) GREGE,TRIM4# |
1 | ||
| 62412-BZ020B1 |
F60#..DLX,STD LT.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62413-BZ020B0 |
F602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 62413-BZ020B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-BZ020B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 62414-BZ020A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 62414-BZ020B0 |
F602..MA,SA;F602..S..TH;F601..5F..(DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67913-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67913-BZ010B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67914-BZ010A0 |
F602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD) IVORY,TRIM0# |
1 | ||
| 67914-BZ010B0 |
F602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) DK.GRAY,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67917-BZ011B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ010B0 |
F60#..(DLX,GL,STD)..SA DK.GRAY,TRIM1# |
1 | ||
| 67917-BZ020B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-BZ010B0 |
F601 DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ010A0 |
F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 67918-BZ010B0 |
F60#..(DLX,GL,STD)..SA DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ011B0 |
F60#..(DLX,GL,S,STD)..(SA,TH) DK.GRAY,TRIM1# |
1 | ||
| 67918-BZ020B0 |
F601..CTM,J;F601..DLX..GEN GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90044-68288 | ||||
| 90044-68346 | ||||
| 9004A-46302 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
