F601RM-GMRFJN (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

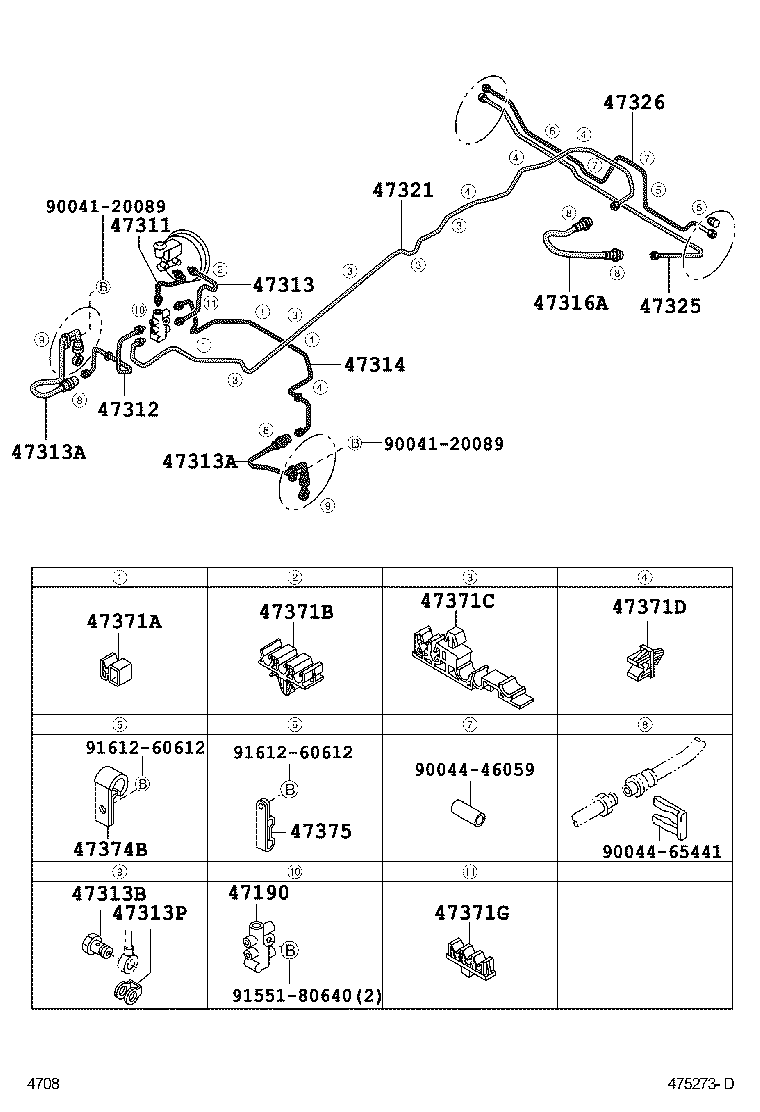

Click highlighted areas on diagram

L/ABS

diagram 47190 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47316A 47321 47325 47326 47371A 47371B 47371C 47371D 47371G 47374B 47375 9004120089 9004120089 9004446059 9004465441 9155180640 9161260612 9161260612
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-B0010

F601..5F;F601..4AT..MA

 1
47190-B0010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47311-BZ010

F601..5F;F601..4AT..MA

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ010

F601..5F;F601..4AT..MA

 1
47312-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ010

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47313-BZ010

F601..5F;F601..4AT..MA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
9004A-94041

F601

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
9004A-94041

F601

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

F601

 2
90044-01079

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

F601

 2
47389-97201

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ010

F601..5F;F601..4AT..MA

 1
47314-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
9004A-94040

F601..5F;F601..4AT..MA

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ070

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47321-BZ010

F601..5F;F601..4AT..MA

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-BZ010

F601..5F;F601..4AT..MA

 1
47325-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47326-BZ010

F601..5F;F601..4AT..MA

 1
47371A - CLAMP, BRAKE TUBE, NO.1
9004A-46299

F602..J;F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 4
90044-64655

F60#..RHD..5F..(CTM,E,G,J,STD)..(GEN,IDN,SA,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
9004A-46290

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
90044-64742

F601..5F;F601..4AT..MA

 1
90044-64742

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64716

F601..5F;F601..4AT..MA

 5
90044-64716

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 5
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64299

F602..J;F601..CTM,E,G,STD

 4
90044-64299

F601..5F;F601..4AT..MA

 4
9004A-46296

F602..J;F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 4
47374B - CLAMP, BRAKE TUBE, NO.4
96221-30705

F601..5F;F601..4AT..MA

 2
96221-30705

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
9004A-46094

F601..5F;F601..4AT..MA

L/ABS

 1
9004A-46094

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

L/ABS

 1
90044-64668

F601..DLX,J;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MXC,PHL,SA,TH)

 2
Common parts
90041-20089
90044-46059
90044-65441
91551-80640
91612-60612

(0608- )F602 ; (0608- )F601..5F..G ; (0608- )F601..CTM,DLX,E,J,STD

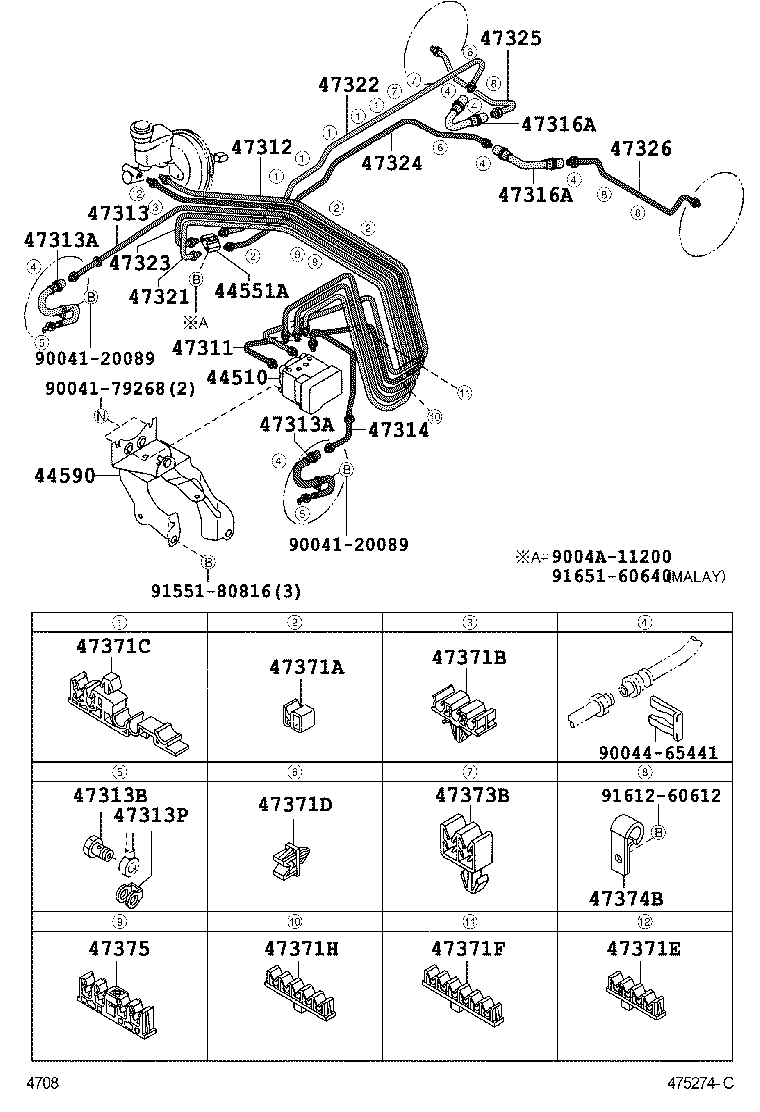

Click highlighted areas on diagram

W/ABS

diagram 44510 44551A 44590 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47316A 47316A 47321 47322 47323 47324 47325 47326 47371A 47371B 47371C 47371D 47371E 47371F 47371H 47373B 47374B 47375 9004120089 9004120089 9004179268 9004465441 9004A11200 9155180816 9161260612 9165160640
Part # Description Qty Price
44551A - WAY, NO.1(FOR BRAKE ACTUATOR)
44589-B2010

F601..DLX,J;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MXC,PHL,SA,TH)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47311-BZ010

F601..5F;F601..4AT..MA

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ010

F601..5F;F601..4AT..MA

 1
47312-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ010

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47313-BZ010

F601..5F;F601..4AT..MA

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
9004A-94041

F601

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94041

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
9004A-94041

F601

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

F601

 2
90044-01079

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

F601

 2
47389-97201

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ010

F601..5F;F601..4AT..MA

 1
47314-BZ080

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
9004A-94040

F601..5F;F601..4AT..MA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94040

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
9004A-94040

F601..5F;F601..4AT..MA

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-BZ070

F602..E..MA;F60#..5F..(MA,TH);F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47321-BZ010

F601..5F;F601..4AT..MA

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ011

F601..DLX,J;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MXC,PHL,SA,TH)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-BZ010

F601..5F;F601..4AT..MA

 1
47325-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-BZ010

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47326-BZ010

F601..5F;F601..4AT..MA

 1
47371A - CLAMP, BRAKE TUBE, NO.1
9004A-46299

F602..J;F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 4
90044-64655

F60#..RHD..5F..(CTM,E,G,J,STD)..(GEN,IDN,SA,TH)

 4
47371B - CLAMP, BRAKE TUBE, NO.6
9004A-46290

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
90044-64742

F601..5F;F601..4AT..MA

 1
90044-64742

F60#..GEN,IDN,MXC,PHL,SA,TH

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64716

F601..5F;F601..4AT..MA

 5
90044-64716

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 5
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64299

F602..J;F601..CTM,E,G,STD

 4
90044-64299

F601..5F;F601..4AT..MA

 4
9004A-46296

F602..J;F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 4
47374B - CLAMP, BRAKE TUBE, NO.4
96221-30705

F601..5F;F601..4AT..MA

 2
96221-30705

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
9004A-46094

F601..5F;F601..4AT..MA

L/ABS

 1
9004A-46094

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

L/ABS

 1
90044-64668

F601..DLX,J;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,MXC,PHL,SA,TH)

 2
Common parts
90041-20089
90041-79268
90044-65441
9004A-11200
91551-80816
91612-60612
91651-60640
