F601RM-GMMFJ (2006)
Toyota Avanza
(0608- )

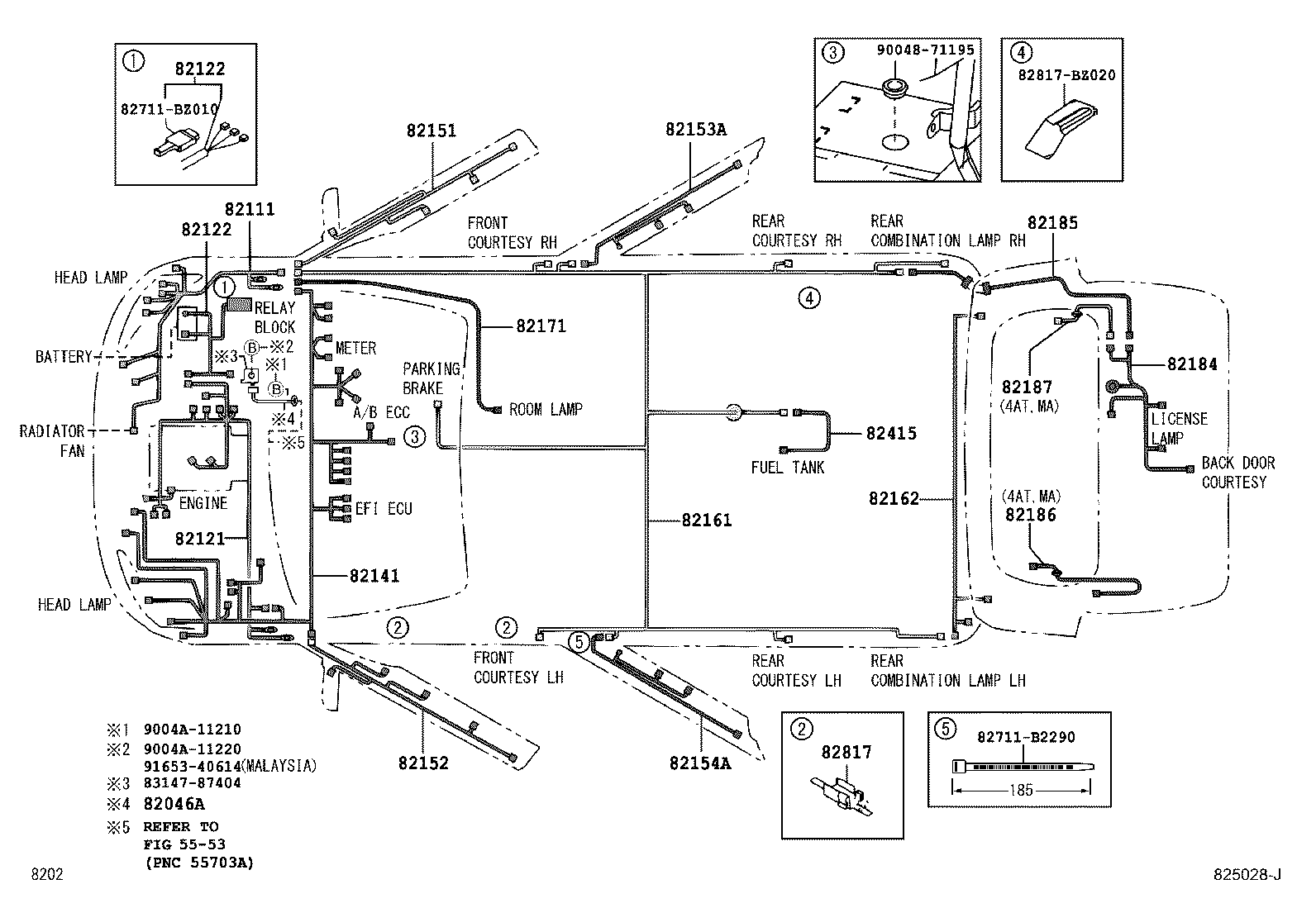

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-BZ030 |
F602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-BZ240 |
F60#..RHD..(CTM,J,STD) |
1 | ||
| 82111-BZ210 |
F601..5F..G |
1 | ||
| 82111-BZ241 |
F60#..RHD..(CTM,J,STD) |
1 | ||
| 82111-BZ211 |
F601..5F..G |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-BZ180 |
F601..RHD..5F..(GEN,IDN) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-BZ100 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-BZ100 |
F601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-BZ290 |
F601..5F..G |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-BZ020 |
F602..E,J;F60#..RHD..(G,S)..(GEN,IDN) |
1 | ||
| 82151-BZ021 |
F602..(E,J)..TH;F60#..RHD..(G,S)..(GEN,IDN) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-BZ020 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 82152-BZ440 |
F601..RHD..(DLX,G,STD);F602..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 82152-BZ020 |
F601..RHD..(DLX,G,STD);F602..RHD..(GEN,IDN,SA,TH) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-BZ210 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 82153-BZ010 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-BZ010 |
F602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA) |
1 | ||
| 82154-BZ100 |
F601..G;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-BZ220 |
F601..G |
1 | ||
| 82161-BZ240 |
F60#..RHD..(J,STD) |
1 | ||
| 82161-BZ221 |
F601..5F..G |
1 | ||
| 82161-BZ241 |
F60#..RHD..(J,STD) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-BZ020 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 82171-BZ100 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 82171-BZ090 |
F602..MXC;F60#..(CTM,DLX,E,STD,XI)..(GEN,IDN,SA) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-BZ020 |
F601..(CTM,E,G,J,XI)..(GEN,IDN,PHL,SA) |
1 | ||
| 82184-BZ030 |
F602..GEN,IDN,MA,PHL,SA,TH;F601..5F..(DLX,E,STD)..(GEN,MA,SA) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-BZ030 |
F601..G |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-BZ010 |
F601 |
1 | ||
| 82415-BZ070 |
F601..CTM,DLX,J,STD;F602..5F..(DLX,G,GL,J) |
1 | ||
| 82415-BZ060 |
F602..LHD..4AT;F60#..RHD..(E,G,S,XI)..(GEN,IDN,TH) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-B2050 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 82817-B2050 |
F601 |
2 | ||
| 82817-BZ050 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| Common parts | ||||
| 82711-B2290 | ||||
| 82711-BZ010 | ||||
| 82817-BZ020 | ||||
| 83147-87404 | ||||
| 90048-71195 | ||||
| 9004A-11210 | ||||
| 9004A-11220 | ||||
| 91653-40614 | ||||
| Linked diagrams | ||||
| 5553 | ||||

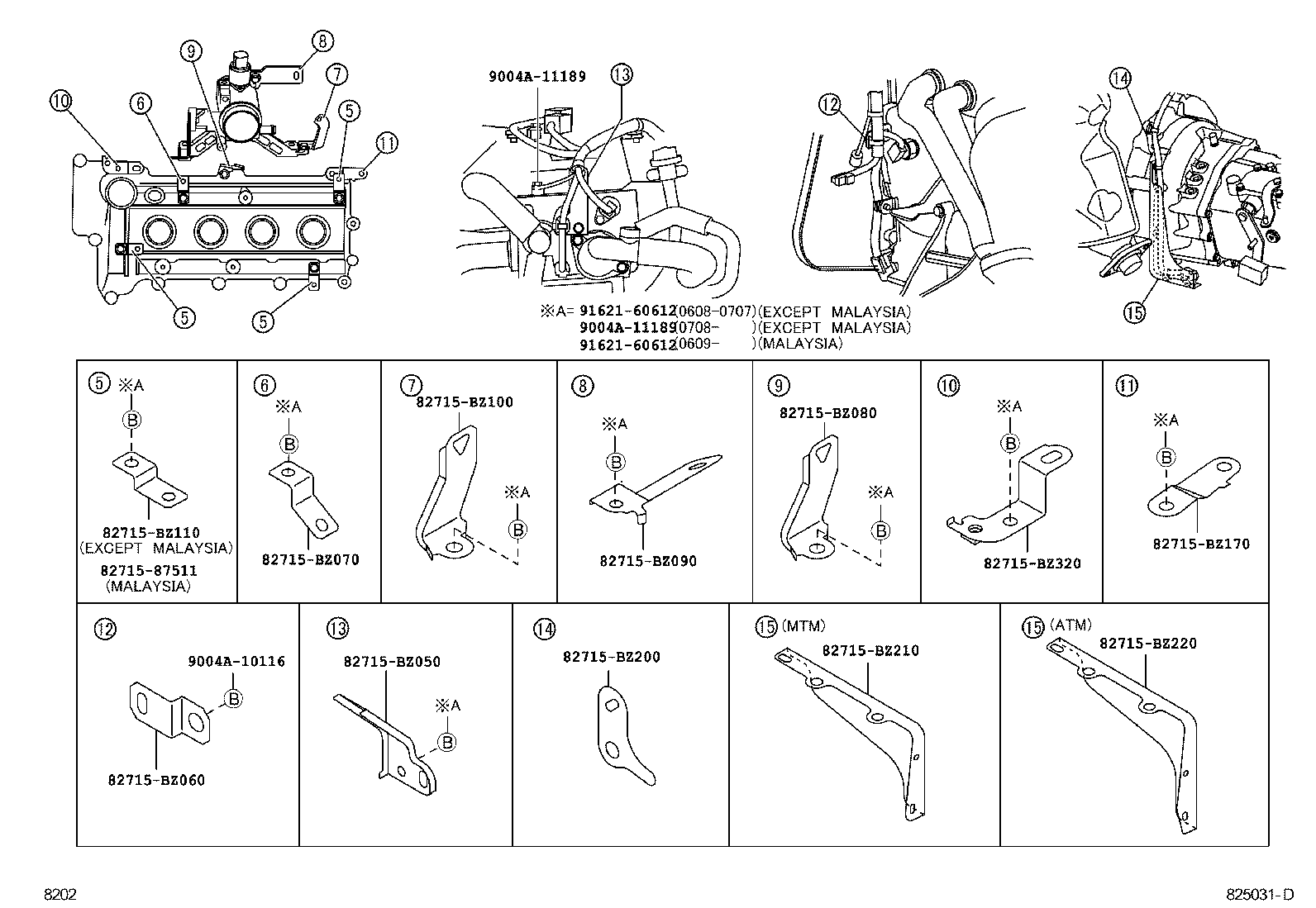

(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-87511 | ||||
| 82715-BZ050 | ||||
| 82715-BZ060 | ||||
| 82715-BZ070 | ||||
| 82715-BZ080 | ||||
| 82715-BZ090 | ||||
| 82715-BZ100 | ||||
| 82715-BZ110 | ||||
| 82715-BZ170 | ||||
| 82715-BZ200 | ||||
| 82715-BZ210 | ||||
| 82715-BZ220 | ||||
| 82715-BZ320 | ||||
| 9004A-10116 | ||||
| 9004A-11189 | ||||
| 91621-60612 | ||||

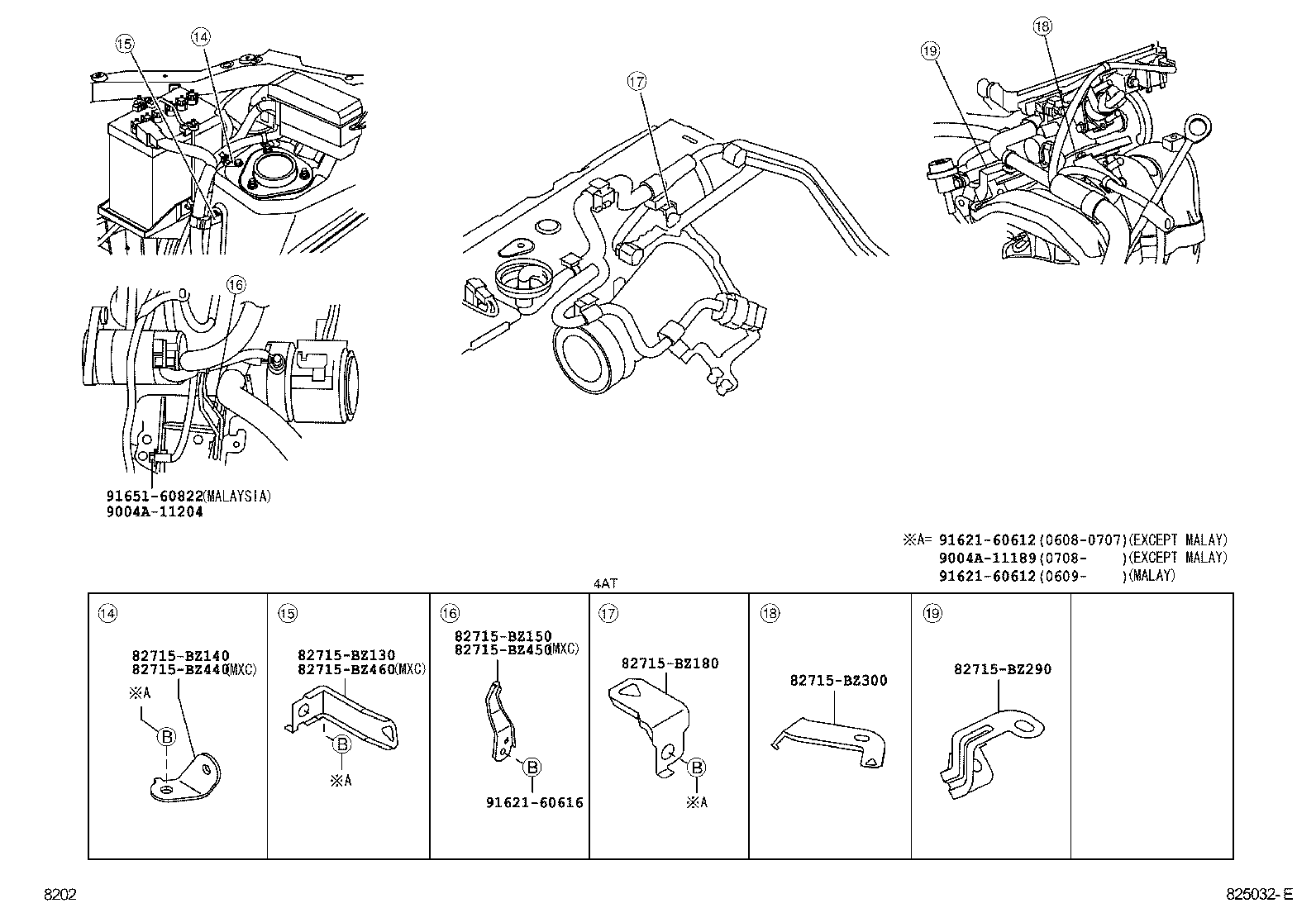

(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-BZ130 | ||||
| 82715-BZ140 | ||||
| 82715-BZ150 | ||||
| 82715-BZ180 | ||||
| 82715-BZ290 | ||||
| 82715-BZ300 | ||||
| 82715-BZ440 | ||||
| 82715-BZ450 | ||||
| 82715-BZ460 | ||||
| 9004A-11189 | ||||
| 9004A-11204 | ||||
| 91621-60612 | ||||
| 91621-60616 | ||||
| 91651-60822 | ||||
