F601RM-GMMFJ (2006)
Toyota Avanza

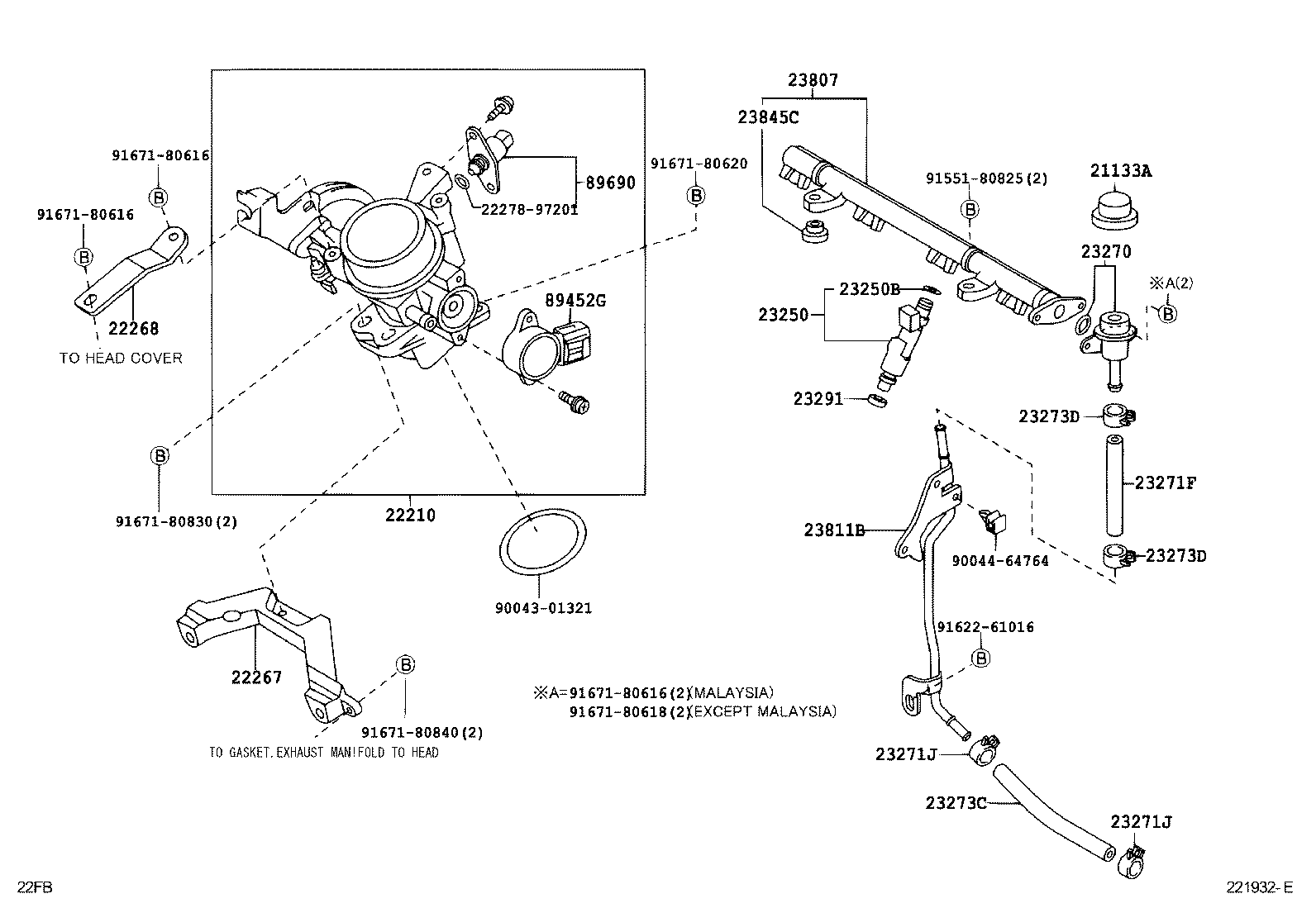

ILLUST NO. 1 OF 2(0608- )
K3,3SZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21133A - COVER, DUST | ||||
| 21133-B0010 |
K3#..F601 |
1 | ||
| 21133-B0010 |
K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 21133-BZ020 |
K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-BZ080 |
3SZVE..F602..PHL;K3VE..F601..5F..MA;3SZVE..F602..RHD..(GEN,IDN,MA,TH);K3VE..F601..(E,G,J,XI)..(GEN,IDN,PHL) |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-BZ010 |
K3#..F601 |
1 | ||
| 22267-BZ020 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 22268 - BRACKET, THROTTLE BODY, NO.2 | ||||
| 22268-BZ010 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 22268-BZ010 |
K3#..F601 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-BZ010 |
K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90043-01136 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-97501 |
K3#..F601 |
1 | ||
| 23270-97501 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-B0020 |
K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA L=95 OD=14.3 ID=7.5 |
1 | ||
| 23271-B0020 |
K3#..F601 L=95 OD=14.3 ID=7.5 |
1 | ||
| 23271J - CLAMP, NO.2(FOR FUEL HOSE) | ||||
| 90044-67234 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
2 | ||
| 90044-67190 |
K3#..F601 |
2 | ||
| 23271J - CLAMP, NO.2(FOR FUEL HOSE) | ||||
| 90044-67234 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
2 | ||
| 90044-67190 |
K3#..F601 |
2 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-B0021 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23273-B0020 |
K3#..F601 |
1 | ||
| 23273-B0020 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90044-67190 |
K3#..F601 |
2 | ||
| 90044-67234 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
2 | ||
| 23273D - CLIP(FOR FUEL HOSE NO.2) | ||||
| 90044-67190 |
K3#..F601 |
2 | ||
| 90044-67234 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-BZ010 |
K3#..F601 |
4 | ||
| 23291-BZ010 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-BZ030 |
K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 23811B - PIPE, FUEL, NO.1 | ||||
| 23811-BZ020 |
K3#..F601 |
1 | ||
| 23811-BZ071 |
K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23811-BZ070 |
K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23845C - INSULATOR, FUEL PIPE | ||||
| 23845-BZ010 |
K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH |
2 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-97401 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| 89452-87Z01 |
F60# |
1 | ||
| 89690 - ACTUATOR ASSY, IDLE SPEED CONTROL | ||||
| 89690-97202 |
F602;F601..5F..MA;F601..GEN,IDN,PHL,SA |
1 | ||
| Common parts | ||||
| 22278-97201 | ||||
| 90043-01321 | ||||
| 90044-64764 | ||||
| 91551-80825 | ||||
| 91622-61016 | ||||
| 91671-80616 | ||||
| 91671-80618 | ||||
| 91671-80620 | ||||
| 91671-80830 | ||||
| 91671-80840 | ||||

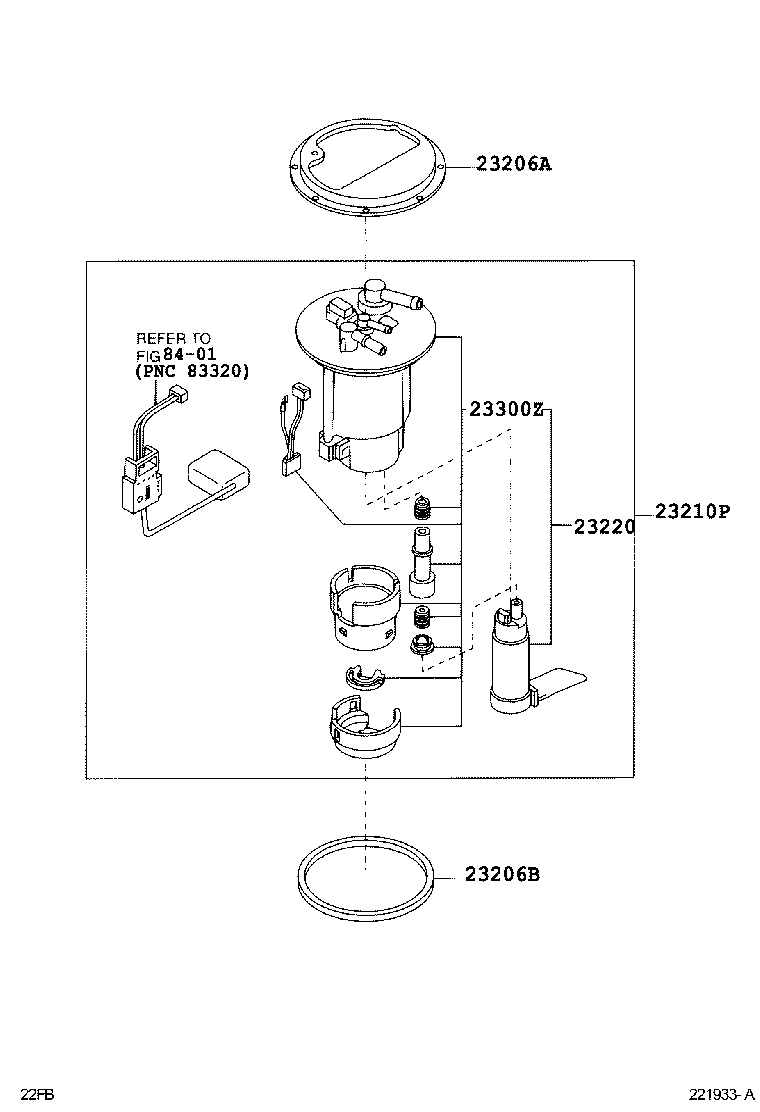

ILLUST NO. 2 OF 2(0608- )
K3,3SZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23265-BZ010 |
K3#..F601 |
1 | ||
| 23265-BZ010 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 23232-BZ010 |
K3#..F601 |
1 | ||
| 23232-BZ010 |
3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA |
1 | ||
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-BZ070 |
K3VE..F601..CTM,DLX,J,STD;3SZVE..F602..5F..(DLX,G,GL,J) |
1 | ||
| 23210-BZ100 |
3SZVE..F602..LHD..4AT;K3VE,3SZVE..F60#..RHD..(E,G,S,XI)..(GEN,IDN,TH) |
1 | ||
| 23210-BZ071 |
K3VE..F601..CTM,DLX,J,STD;3SZVE..F602..5F..(DLX,G,GL,J) |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23101-BZ070 |
3SZVE..F602..5F..(DLX,G,GL,J);K3VE..F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 23100-BZ010 |
3SZVE..F602..E,S;3SZVE..F602..LHD..4AT;K3VE..F601..RHD..(GEN,IDN) |
1 | ||
| 23101-BZ020 |
3SZVE..F602..5F..(DLX,G,GL,J);K3VE..F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 23101-BZ050 |
3SZVE..F602..5F..(DLX,G,GL,J);K3VE..F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 23100-BZ090 |
3SZVE..F602..LHD..4AT;3SZVE..F602..RHD..(E,G,S);K3VE..F601..RHD..(GEN,IDN) |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23390-BZ020 |
3SZVE..F602..5F..(DLX,G,GL,J);K3VE..F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA) |
1 | ||
| 23390-BZ010 |
3SZVE..F602..LHD..4AT;3SZVE..F602..RHD..(E,G,S);K3VE..F601..RHD..(GEN,IDN) |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
