F601RM-GMMFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

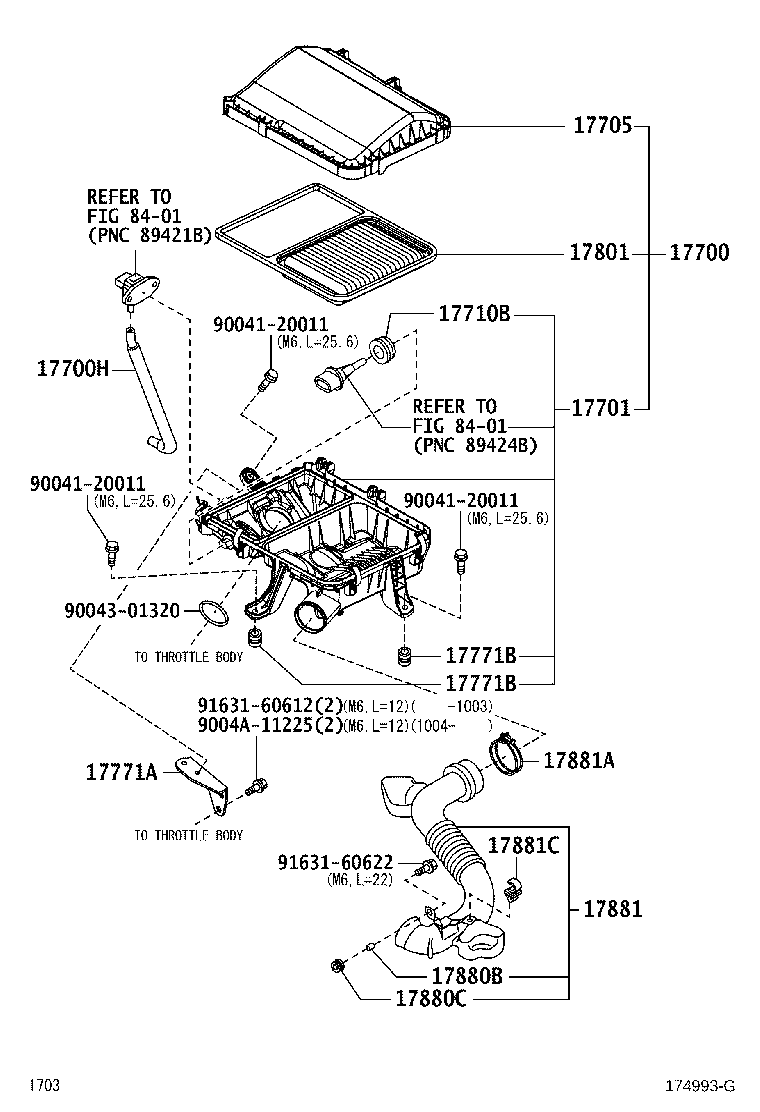

Click highlighted areas on diagram

diagram 17700 17700H 17701 17705 17710B 17771A 17771B 17771B 17801 17880B 17880C 17881 17881A 17881C 8401 8401 9004120011 9004120011 9004120011 9004301320 9004A11225 9163160612 9163160622
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-BZ071

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17700-BZ070

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17700H - HOSE, AIR
44750-B0050

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

L=270

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-BZ080

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17701-BZ090

K3VE..F601..5F..(GEN,IDN,PHL,SA);3SZVE..F602..GEN,IDN,MXC,PHL,SA,TH

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-BZ071

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17705-BZ070

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17710B - GROMMET
90044-80530

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

OD=25,S=13.6

 1
17771A - BRACKET, AIR CLEANER
17771-BZ090

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80392

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 2
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80392

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-BZ050

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
17880B - COLLAR(FOR AIR CLEANER HOSE)
9004B-38004

K3#..F601

 1
9004B-38004

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17880C - GROMMET(FOR AIR CLEANER HOSE)
9004B-48001

K3#..F601

 1
9004B-48001

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-BZ020

K3#..F601

 1
17881-BZ070

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
9004A-46128

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
9004A-46128

K3#..F601

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90044-64563

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
90044-64563

K3#..F601

 1
Common parts
90041-20011
90043-01320
9004A-11225
91631-60612
91631-60622
Linked diagrams
8401
