F601RM-GMMFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

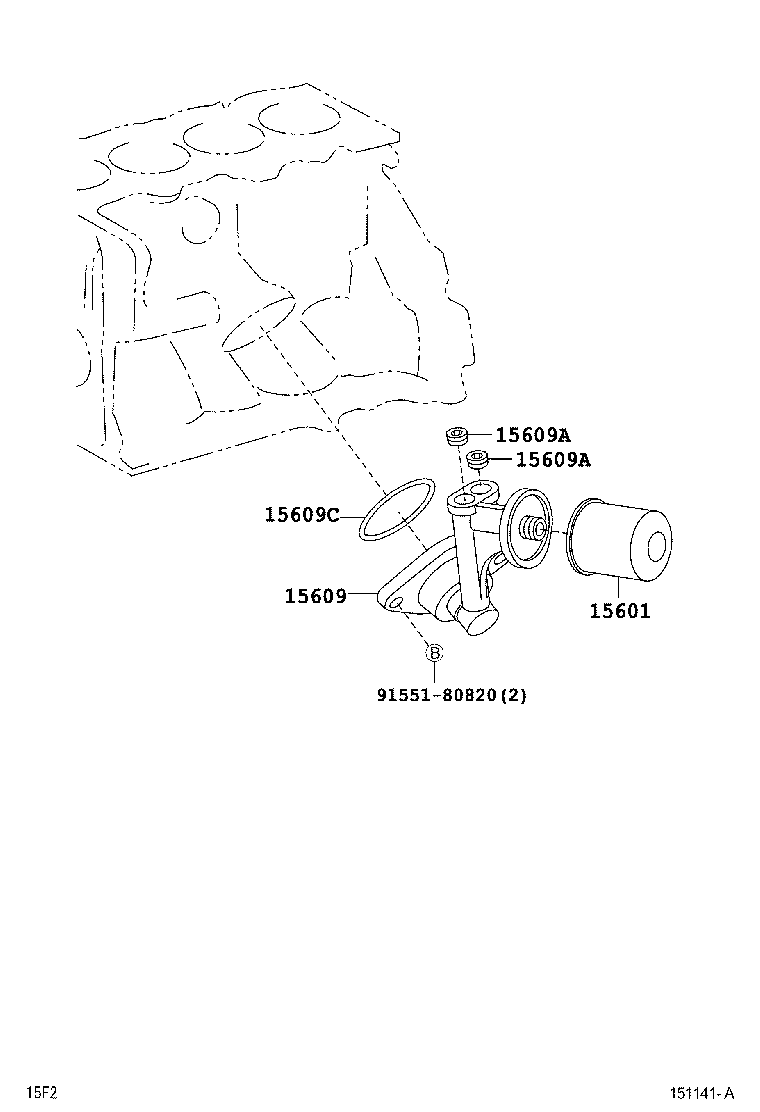

Click highlighted areas on diagram

diagram 15601 15609 15609A 15609A 15609C 9155180820
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-BZ010

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-BZ010

K3#..F601

 1
15671-BZ010

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90043-44019

K3#..F601

 2
90043-44019

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 2
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90043-44019

K3#..F601

 2
90043-44019

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 2
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
9004A-30011

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
9004A-30011

K3#..F601

 1
Common parts
91551-80820
