F601RM-GMMEJ (2003)

Toyota Avanza

Production Dec 2003 - Aug 2006
Engine K3DE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

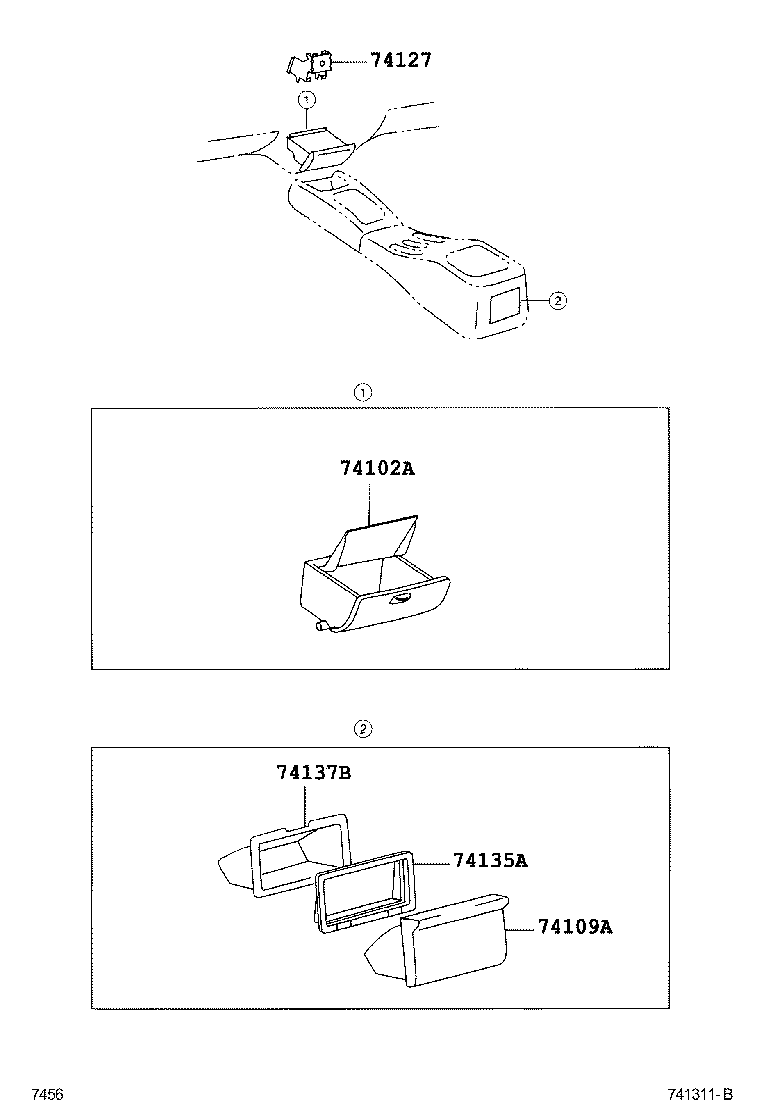

Click highlighted areas on diagram

diagram 74102A 74109A 74127 74135A 74137B
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-BZ010B0

F601..E,G,GL,S

DK.GRAY,TRIM1#

 1
74109A - BOX SUB-ASSY, ASH RECEPTACLE
74109-0B010B1

F601..E..TH;F601..G,GL,LIMD,S

DK.GRAY,TRIM1#

 1
74127 - BEZEL, FRONT ASH RECEPTACLE
74128-BZ010

F601

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-0B010

F601..E..TH;F601..G,GL,LIMD,S

 1
74137B - RETAINER, REAR ASH RECEPTACLE, INNER
74137-0B010

F601..E..TH;F601..G,GL,LIMD,S

 1
