F601RM-GMMEJ (2003)

Toyota Avanza

Production Dec 2003 - Aug 2006
Engine K3DE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )BRU,GEN,IDN,MXC,PHL,SA,TH

Click highlighted areas on diagram

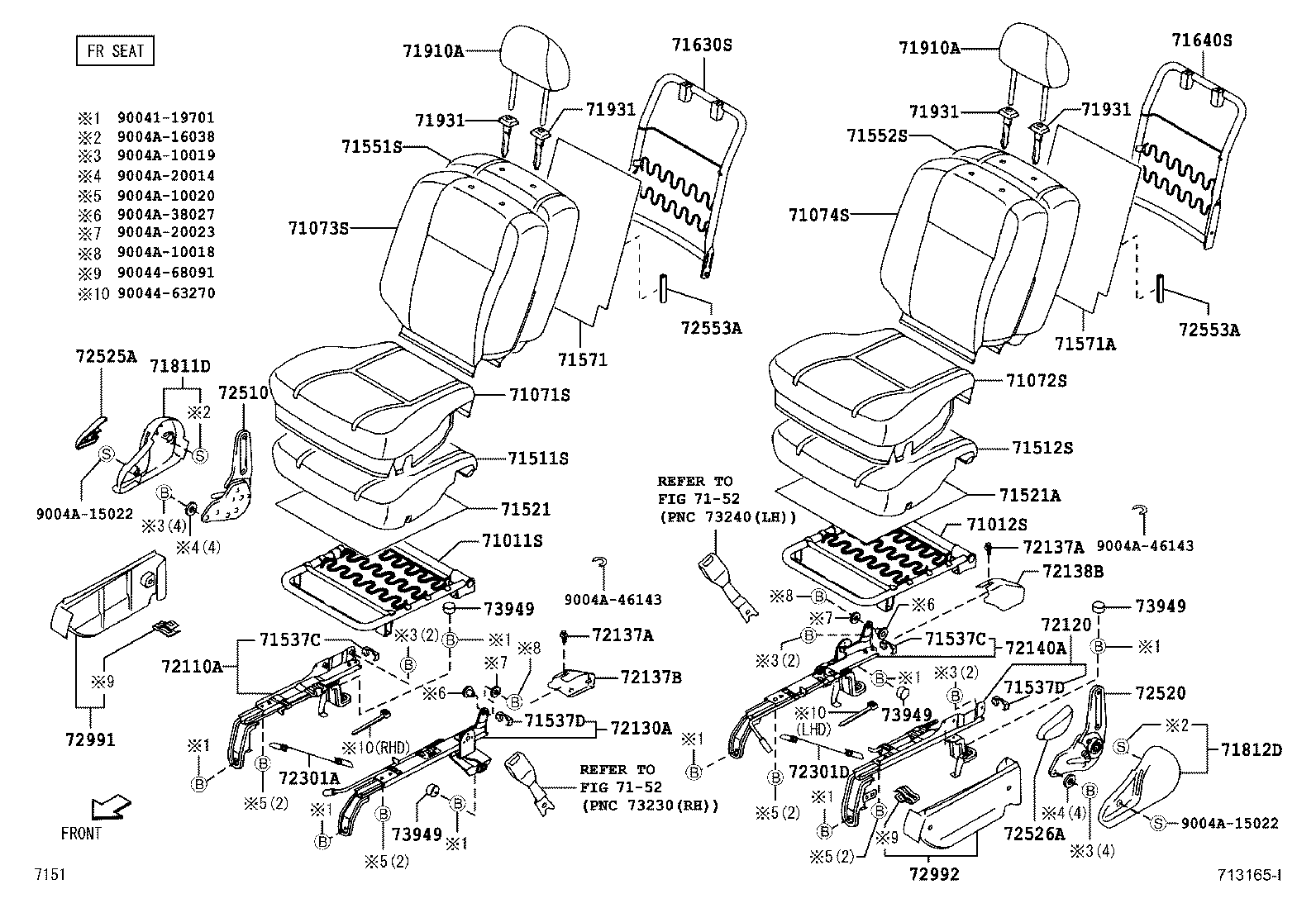

FRONT SEAT

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71511S 71512S 7152 7152 71521 71521A 71537C 71537C 71537D 71537D 71551S 71552S 71571 71571A 71630S 71640S 71811D 71812D 71910A 71910A 71931 71931 71931 71931 72110A 72120 72130A 72137A 72137A 72137B 72138B 72140A 72301A 72301D 72510 72520 72525A 72526A 72553A 72553A 72991 72992 73949 73949 73949 73949 9004119701 9004463270 9004468091 9004A10018 9004A10019 9004A10020 9004A15022 9004A15022 9004A16038 9004A20014 9004A20023 9004A38027 9004A46143 9004A46143
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-BZ010

F601..BRU,IDN,TH

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-BZ010

F601..BRU,IDN,TH

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-BZ030B0

F601..S

GRAY,TRIM1#

 1
71071-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71072-BZ030B0

F601..S

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71073-BZ030B0

F601..S

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-BZ030B0

F601..S

GRAY,TRIM1#

 1
71074-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-BZ010

F601..BRU,IDN,TH

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-BZ010

F601..BRU,IDN,TH

 1
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-BZ010

F601..S

 2
71521-BZ010

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

 1
71521A - PAD,FRONT SEAT CUSHION SILENCER
71521-BZ010

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

 1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-BZ010

F601

 2
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-BZ010

F601

 2
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-BZ010

F601

 2
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-BZ010

F601

 2
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-BZ010

F601..BRU,IDN,TH

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-BZ010

F601..BRU,IDN,TH

 1
71571 - PAD, FRONT SEAT BACK SILENCER, A
71571-BZ010

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

 1
71571-BZ010

F601..S

 2
71571A - PAD, FRONT SEAT BACK SILENCER, LH
71571-BZ010

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-BZ010

F601..BRU,IDN,TH

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-BZ010

F601..BRU,IDN,TH

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 2
71910-BZ030B0

F601..S

DARK GRAY,TRIM1#

 2
71910A - HEADREST ASSY, FRONT SEAT
71910-BZ020B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 2
71910-BZ030B0

F601..S

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-87Z05B0

F601..BRU,IDN,TH

W(LOCK),DK.GRAY,TRIM1#

 2
71931-87Z04B0

F601..BRU,IDN,TH

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-87Z05B0

F601..BRU,IDN,TH

W(LOCK),DK.GRAY,TRIM1#

 2
71931-87Z04B0

F601..BRU,IDN,TH

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-87Z05B0

F601..BRU,IDN,TH

W(LOCK),DK.GRAY,TRIM1#

 2
71931-87Z04B0

F601..BRU,IDN,TH

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-87Z05B0

F601..BRU,IDN,TH

W(LOCK),DK.GRAY,TRIM1#

 2
71931-87Z04B0

F601..BRU,IDN,TH

W/O(LOCK),DK.GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-BZ010

F601

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-BZ010

F601

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-BZ010

F601

 1
72137A - CLIP (FOR SEAT TRACK COVER)
90467-07191B2

F601

DK.GRAY,TRIM1#

 2
72137A - CLIP (FOR SEAT TRACK COVER)
90467-07191B2

F601

DK.GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72157-BZ010B0

F601

DK.GRAY,TRIM1#

 1
72138B - COVER, SEAT TRACK, LH
72158-BZ010B0

F601

DK.GRAY,TRIM1#

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-BZ010

F601

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-BZ010

F601..BRU,IDN,TH

 1
72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
72301-BZ010

F601..BRU,IDN,TH

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-BZ040

F601

 1
72510-BZ010

F601

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-BZ010

F601

 1
72520-BZ040

F601

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72992-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
73949 - CAP
73949-87502

F601

 2
73949 - CAP
73949-87502

F601

 2
73949 - CAP
73949-87502

F601

 2
73949 - CAP
73949-87502

F601

 2
Common parts
90041-19701
90044-63270
90044-68091
9004A-10018
9004A-10019
9004A-10020
9004A-15022
9004A-16038
9004A-20014
9004A-20023
9004A-38027
9004A-46143
Linked diagrams
7152

(0312- )BRU,GEN,IDN,MXC,PHL,SA,TH

Click highlighted areas on diagram

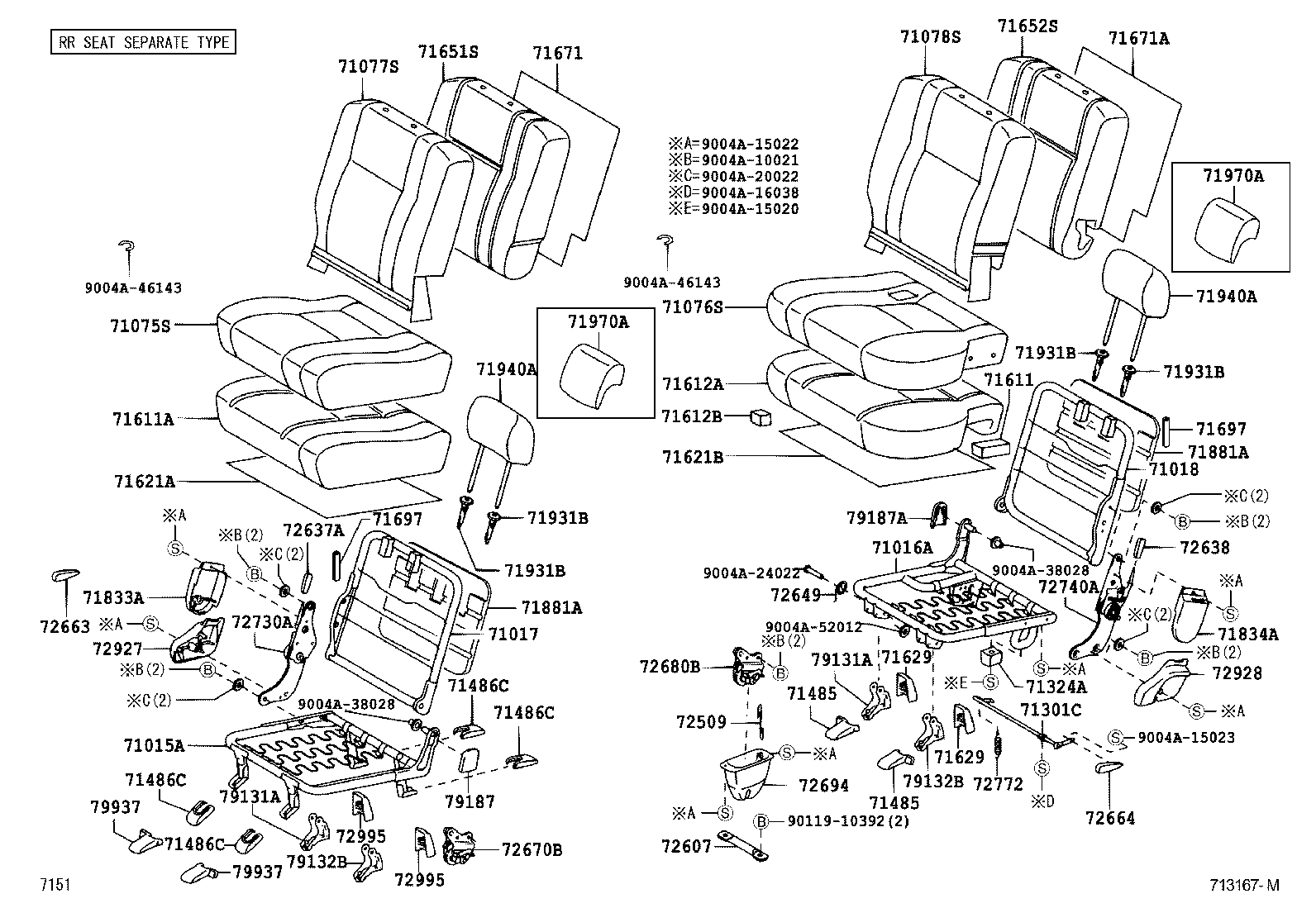

REAR NO.1 SEAT (SEPARATE TYPE)

diagram 71015A 71016A 71017 71018 71075S 71076S 71077S 71078S 71301C 71324A 71485 71485 71486C 71486C 71486C 71486C 71611 71611A 71612A 71612B 71621A 71621B 71629 71629 71651S 71652S 71671 71671A 71697 71697 71833A 71834A 71881A 71881A 71931B 71931B 71931B 71931B 71940A 71940A 71970A 71970A 72509 72607 72637A 72638 72649 72663 72664 72670B 72680B 72694 72730A 72740A 72772 72927 72928 72995 72995 79131A 79131A 79132B 79132B 79187 79187A 79937 79937 9004A10021 9004A15020 9004A15022 9004A15023 9004A16038 9004A20022 9004A24022 9004A38028 9004A38028 9004A46143 9004A46143 9004A52012 9011910392
Part # Description Qty Price
71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71015-BZ010

F601..BRU,IDN,TH

 1
71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71016-BZ010

F601..BRU,IDN,TH

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-BZ020

F601..BRU,IDN,TH

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-BZ020

F601..BRU,IDN,TH

 1
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-BZ030B0

F601..E..TH;F601..(G,GL)..(BRU,IDN)

GRAY,TRIM1#

 1
71075-BZ040B0

F601..S

GRAY,TRIM1#

 1
71075-BZ020B0

F601..E..IDN

GRAY,TRIM1#

 1
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71076-BZ030B0

F601..E..TH;F601..(G,GL)..(BRU,IDN)

GRAY,TRIM1#

 1
71076-BZ020B0

F601..E..IDN

GRAY,TRIM1#

 1
71076-BZ040B0

F601..S

GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-BZ030B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71077-BZ040B0

F601..S

GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-BZ040B0

F601..S

GRAY,TRIM1#

 1
71078-BZ030B0

F601..(E,G,GL)..(BRU,IDN,TH)

GRAY,TRIM1#

 1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-BZ010

F601..BRU,IDN,TH

 1
71324A - CUSHION, REAR SEAT
72179-BZ010

F601..BRU,IDN,TH

 1
71485 - COVER, REAR SEAT HINGE
71485-BZ010B0

F601

DK.GRAY,TRIM1#

 2
71485 - COVER, REAR SEAT HINGE
71485-BZ010B0

F601

DK.GRAY,TRIM1#

 2
71486C - COVER, REAR SEAT HINGE, LH
71486-BZ010B0

F601

DK.GRAY,TRIM1#

 4
71486C - COVER, REAR SEAT HINGE, LH
71486-BZ010B0

F601

DK.GRAY,TRIM1#

 4
71486C - COVER, REAR SEAT HINGE, LH
71486-BZ010B0

F601

DK.GRAY,TRIM1#

 4
71486C - COVER, REAR SEAT HINGE, LH
71486-BZ010B0

F601

DK.GRAY,TRIM1#

 4
71611 - PAD, REAR SEAT CUSHION
71611-BZ010

F601..BRU,IDN,TH

 1
71611A - PAD, REAR SEAT CUSHION, RH
71503-BZ010

F601..BRU,IDN,TH

 1
71612A - PAD, REAR SEAT CUSHION, LH
71504-BZ010

F601..BRU,IDN,TH

 1
71612B - PAD, REAR SEAT CUSHION, B
71612-BZ010

F601..BRU,IDN,TH

 2
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-BZ010

F601..(E,G,GL,S)..(BRU,IDN,TH)

 1
71621B - PAD, REAR SEAT CUSHION SILENCER, NO.2
71621-BZ010

F601..(E,G,GL,S)..(BRU,IDN,TH)

 1
71629 - COVER, REAR SEAT CUSHION HINGE
71629-BZ010B0

F601

DK.GRAY,TRIM1#

 2
71629 - COVER, REAR SEAT CUSHION HINGE
71629-BZ010B0

F601

DK.GRAY,TRIM1#

 2
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71507-BZ010

F601..BRU,IDN,TH

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71508-BZ010

F601..BRU,IDN,TH

 1
71671 - PAD, REAR SEAT BACK SILENCER, A
71671-BZ010

F601..(E,G,GL,S)..(BRU,IDN,TH)

 2
71671A - PAD, REAR SEAT BACK SILENCER, A
71671-BZ010

F601..(E,G,GL,S)..(BRU,IDN,TH)

 1
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-87Z05B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W(LOCK),DK.GRAY,TRIM1#,W(LOCK)

 2
71931-87Z04B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W/O(LOCK),DK.GRAY,TRIM1#,W/O LOCK

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-87Z05B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W(LOCK),DK.GRAY,TRIM1#,W(LOCK)

 2
71931-87Z04B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W/O(LOCK),DK.GRAY,TRIM1#,W/O LOCK

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-87Z05B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W(LOCK),DK.GRAY,TRIM1#,W(LOCK)

 2
71931-87Z04B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W/O(LOCK),DK.GRAY,TRIM1#,W/O LOCK

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-87Z05B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W(LOCK),DK.GRAY,TRIM1#,W(LOCK)

 2
71931-87Z04B0

F601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)

W/O(LOCK),DK.GRAY,TRIM1#,W/O LOCK

 2
71940A - HEADREST ASSY, REAR SEAT
71910-BZ020B0

F601..E..TH;F601..(G,GL)..(BRU,IDN)

GRAY,TRIM1#

 2
71910-BZ030B0

F601..S

DARK GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71910-BZ020B0

F601..E..TH;F601..(G,GL)..(BRU,IDN)

GRAY,TRIM1#

 2
71910-BZ030B0

F601..S

DARK GRAY,TRIM1#

 2
72509 - WIRE SUB-ASSY, ADJUSTER EQULIZING
72509-BZ011

F601..BRU,IDN,TH

 1
72509-BZ010

F601

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72692-97501

F601

 1
72637A - HANDLE, REAR SEAT LOCK
72637-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
72638 - HANDLE, REAR SEAT LOCK, LH
72637-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
72649 - SPRING, REAR SEAT CUSHION SUPPORT
72649-BZ010

F601..BRU,IDN,TH

 1
72664 - LEVER, REAR SEAT LOCK CONTROL, LH
72664-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72680B - LOCK ASSY, REAR SEAT CUSHION, LH
72680-BZ010

F601

 1
72694 - COVER, REAR SEAT CUSHION LOCK
72694-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH
72730-BZ010

F601

 1
72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH
72740-BZ010

F601

 1
72772 - SPRING, REAR SEAT TURN NO.2
72772-BZ010

F601..BRU,IDN,TH

 1
72927 - COVER, REAR SEAT CUSHION UNDER, RH
72927-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
72928 - COVER, REAR SEAT CUSHION UNDER, LH
72928-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
79131A - LEG, NO.1 SEAT, FRONT RH
79131-BZ010

F601..BRU,IDN,TH

LH SEAT-RH

 1
79131A - LEG, NO.1 SEAT, FRONT RH
79131-BZ010

F601..BRU,IDN,TH

LH SEAT-RH

 1
79132B - LEG, NO.1 SEAT, FRONT LH
79132-BZ010

F601..BRU,IDN,TH

LH SEAT-LH

 1
79132B - LEG, NO.1 SEAT, FRONT LH
79132-BZ010

F601..BRU,IDN,TH

LH SEAT-LH

 1
79187 - COVER, NO.1 SEAT INNER BRACKET
79187-BZ010B0

F601..S

DK.GRAY,TRIM1#

 2
79187A - COVER, NO.1 SEAT INNER BRACKET, LH
79187-BZ010B0

F601..(E,G,GL,LIMD)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 2
Common parts
9004A-10021
9004A-15020
9004A-15022
9004A-15023
9004A-16038
9004A-20022
9004A-24022
9004A-38028
9004A-46143
9004A-52012
90119-10392

(0312- )CTM,DLX,E,G,GL,J,LIMD,S,STD..BRU,GEN,IDN,PHL,SA,TH

Click highlighted areas on diagram

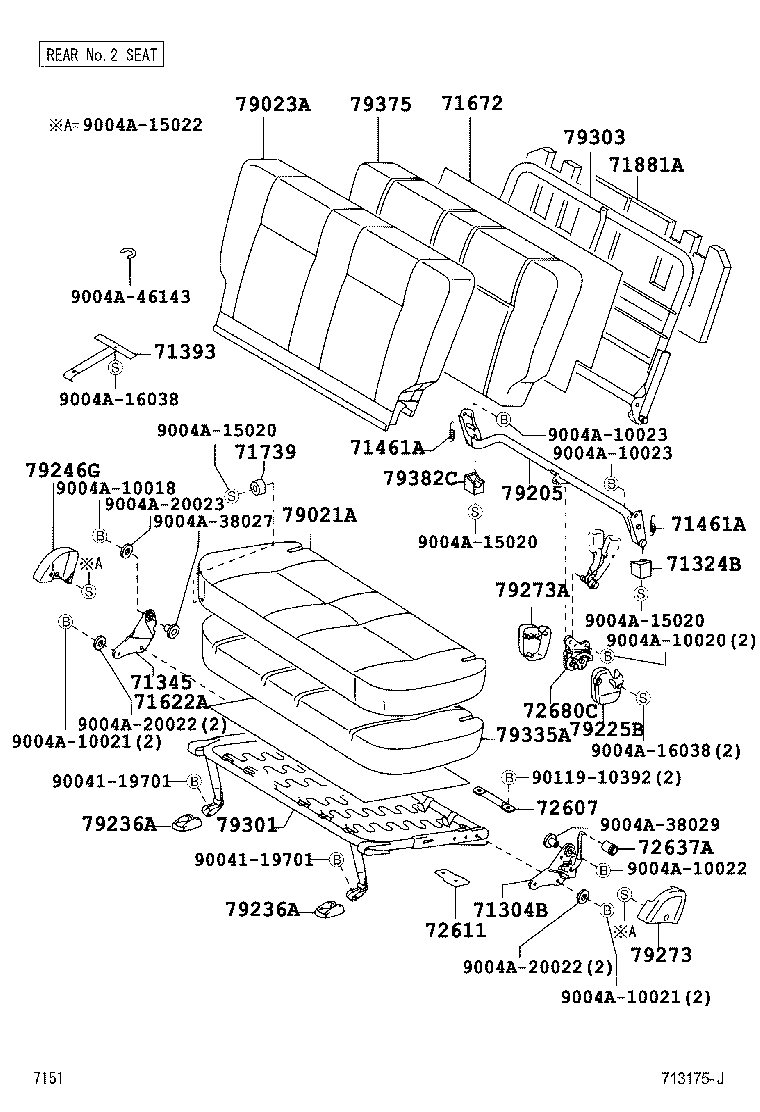

REAR NO.2 SEAT (BENCH TYPE)

diagram 71304B 71324B 71345 71393 71461A 71461A 71622A 71672 71739 71881A 72607 72611 72637A 72680C 79021A 79023A 79205 79225B 79236A 79236A 79246G 79273 79273A 79301 79303 79335A 79375 79382C 9004119701 9004119701 9004A10018 9004A10020 9004A10021 9004A10021 9004A10022 9004A10023 9004A10023 9004A15020 9004A15020 9004A15020 9004A15022 9004A16038 9004A16038 9004A20022 9004A20022 9004A20023 9004A38027 9004A38029 9004A46143 9011910392
Part # Description Qty Price
71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH
71304-BZ010

F601..BRU,IDN,MA

 1
71324B - CUSHION, REAR SEAT
71622-BZ010

F601..BRU,IDN

 1
71345 - HINGE, REAR SEAT BACK
71345-BZ010

F601..BRU,IDN,MA

 1
71393 - BAND, REAR SEAT CUSHION
78980-BZ010

F601..BRU,IDN

 1
71461A - SPRING, REAR SEAT CUSHION, NO.1
71461-BZ010

F601..BRU,IDN

 2
71461A - SPRING, REAR SEAT CUSHION, NO.1
71461-BZ010

F601..BRU,IDN

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-BZ020

F601..BRU,IDN

 1
71672 - PAD, REAR SEAT BACK SILENCER, B
71672-BZ010

F601..BRU,IDN

 1
71739 - CUSHION, SEAT SUPPORT
71739-BZ010

F601..BRU,IDN

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72692-97501

F601

 1
72611 - BRACKET, REAR SEAT LOCK, RH
72611-BZ010

F601

 2
72637A - HANDLE, REAR SEAT LOCK
72637-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
72680C - LOCK ASSY, REAR SEAT CUSHION, NO.2 LH
72680-BZ020

F601..BRU,IDN,MA

 1
79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION
79021-BZ030B0

F601..S

GRAY,TRIM1#

 1
79021-BZ020B0

F601..IDN

GRAY,TRIM1#

 1
79023A - COVER SUB-ASSY, NO.2 SEAT BACK
79023-BZ030B0

F601..S

GRAY,TRIM1#

 1
79023-BZ020B0

F601..(E,G,GL)..(BRU,IDN)

GRAY,TRIM1#

 1
79205 - LEG SUB-ASSY, NO.2 SEAT
79206-BZ010

F601..BRU,IDN

 1
79225B - CARPET, REAR NO.2 SEAT CUSHION, LH
79225-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
79236A - COVER, NO.2 SEAT LEG
79236-BZ010B0

F601

DK.GRAY,TRIM1#

 2
79236A - COVER, NO.2 SEAT LEG
79236-BZ010B0

F601

DK.GRAY,TRIM1#

 2
79246G - COVER, NO.2 SEAT BACK, RH
79246-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79273 - COVER, NO.2 SEAT HINGE
79273-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79273A - COVER, NO.2 SEAT HINGE, NO.2
79952-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79301 - FRAME SUB-ASSY, NO.3 SEAT CUSHION
79301-BZ010

F601..BRU,IDN

 1
79303 - FRAME SUB-ASSY, NO.3 SEAT BACK
79303-BZ010

F601..BRU,IDN

 1
79335A - PAD, NO.3 SEAT CUSHION, RH
79035-BZ010

F601..BRU,IDN

 1
79375 - PAD, NO.3 SEAT BACK
79037-BZ030

F601..BRU,IDN

 1
79382C - CUSHION, NO.2 SEAT
79382-BZ010

F601..BRU,IDN

 1
Common parts
90041-19701
9004A-10018
9004A-10020
9004A-10021
9004A-10022
9004A-10023
9004A-15020
9004A-15022
9004A-16038
9004A-20022
9004A-20023
9004A-38027
9004A-38029
9004A-46143
90119-10392

(0512- )GEN,IDN,MXC,PHL,TH

Click highlighted areas on diagram

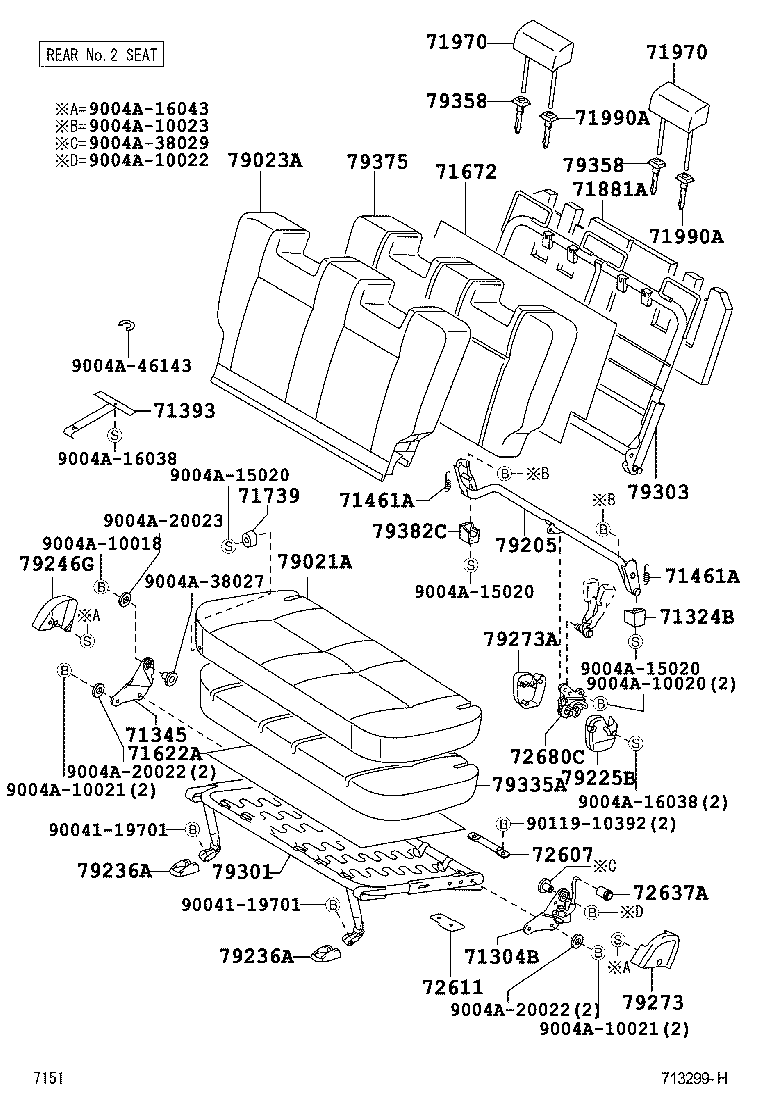

REAR NO.2 SEAT (BENCH TYPE)

diagram 71304B 71324B 71345 71393 71461A 71461A 71622A 71672 71739 71881A 71970 71970 71990A 71990A 72607 72611 72637A 72680C 79021A 79023A 79205 79225B 79236A 79236A 79246G 79273 79273A 79301 79303 79335A 79358 79358 79375 79382C 9004119701 9004119701 9004A10018 9004A10020 9004A10021 9004A10021 9004A10022 9004A10023 9004A15020 9004A15020 9004A15020 9004A16038 9004A16038 9004A16043 9004A20022 9004A20022 9004A20023 9004A38027 9004A38029 9004A46143 9011910392
Part # Description Qty Price
71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH
71304-BZ010

F601..BRU,IDN,MA

 1
71324B - CUSHION, REAR SEAT
71622-BZ010

F601..BRU,IDN

 1
71345 - HINGE, REAR SEAT BACK
71345-BZ010

F601..BRU,IDN,MA

 1
71393 - BAND, REAR SEAT CUSHION
78980-BZ010

F601..BRU,IDN

 1
71461A - SPRING, REAR SEAT CUSHION, NO.1
71461-BZ010

F601..BRU,IDN

 2
71461A - SPRING, REAR SEAT CUSHION, NO.1
71461-BZ010

F601..BRU,IDN

 2
71622A - PAD, REAR SEAT CUSHION SILENCER, B
71622-BZ020

F601..BRU,IDN

 1
71672 - PAD, REAR SEAT BACK SILENCER, B
71672-BZ010

F601..BRU,IDN

 1
71739 - CUSHION, SEAT SUPPORT
71739-BZ010

F601..BRU,IDN

 1
72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK
72692-97501

F601

 1
72611 - BRACKET, REAR SEAT LOCK, RH
72611-BZ010

F601

 2
72637A - HANDLE, REAR SEAT LOCK
72637-BZ010B0

F601..(E,G,GL,S)..(BRU,IDN,TH)

DK.GRAY,TRIM1#

 1
72680C - LOCK ASSY, REAR SEAT CUSHION, NO.2 LH
72680-BZ020

F601..BRU,IDN,MA

 1
79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION
79021-BZ030B0

F601..S

GRAY,TRIM1#

 1
79021-BZ020B0

F601..IDN

GRAY,TRIM1#

 1
79023A - COVER SUB-ASSY, NO.2 SEAT BACK
79023-BZ030B0

F601..S

GRAY,TRIM1#

 1
79023-BZ020B0

F601..(E,G,GL)..(BRU,IDN)

GRAY,TRIM1#

 1
79205 - LEG SUB-ASSY, NO.2 SEAT
79206-BZ010

F601..BRU,IDN

 1
79225B - CARPET, REAR NO.2 SEAT CUSHION, LH
79225-BZ010B0

F601..BRU,IDN,TH

DK.GRAY,TRIM1#

 1
79236A - COVER, NO.2 SEAT LEG
79236-BZ010B0

F601

DK.GRAY,TRIM1#

 2
79236A - COVER, NO.2 SEAT LEG
79236-BZ010B0

F601

DK.GRAY,TRIM1#

 2
79246G - COVER, NO.2 SEAT BACK, RH
79246-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79273 - COVER, NO.2 SEAT HINGE
79273-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79273A - COVER, NO.2 SEAT HINGE, NO.2
79952-BZ010B0

F601..BRU,IDN

DK.GRAY,TRIM1#

 1
79301 - FRAME SUB-ASSY, NO.3 SEAT CUSHION
79301-BZ010

F601..BRU,IDN

 1
79303 - FRAME SUB-ASSY, NO.3 SEAT BACK
79303-BZ010

F601..BRU,IDN

 1
79335A - PAD, NO.3 SEAT CUSHION, RH
79035-BZ010

F601..BRU,IDN

 1
79375 - PAD, NO.3 SEAT BACK
79037-BZ030

F601..BRU,IDN

 1
79382C - CUSHION, NO.2 SEAT
79382-BZ010

F601..BRU,IDN

 1
Common parts
90041-19701
9004A-10018
9004A-10020
9004A-10021
9004A-10022
9004A-10023
9004A-15020
9004A-16038
9004A-16043
9004A-20022
9004A-20023
9004A-38027
9004A-38029
9004A-46143
90119-10392
