F601RM-GMMEJ (2003)
Toyota Avanza
Production
Dec 2003
-
Aug 2006
Engine
K3DE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0608)K3DE

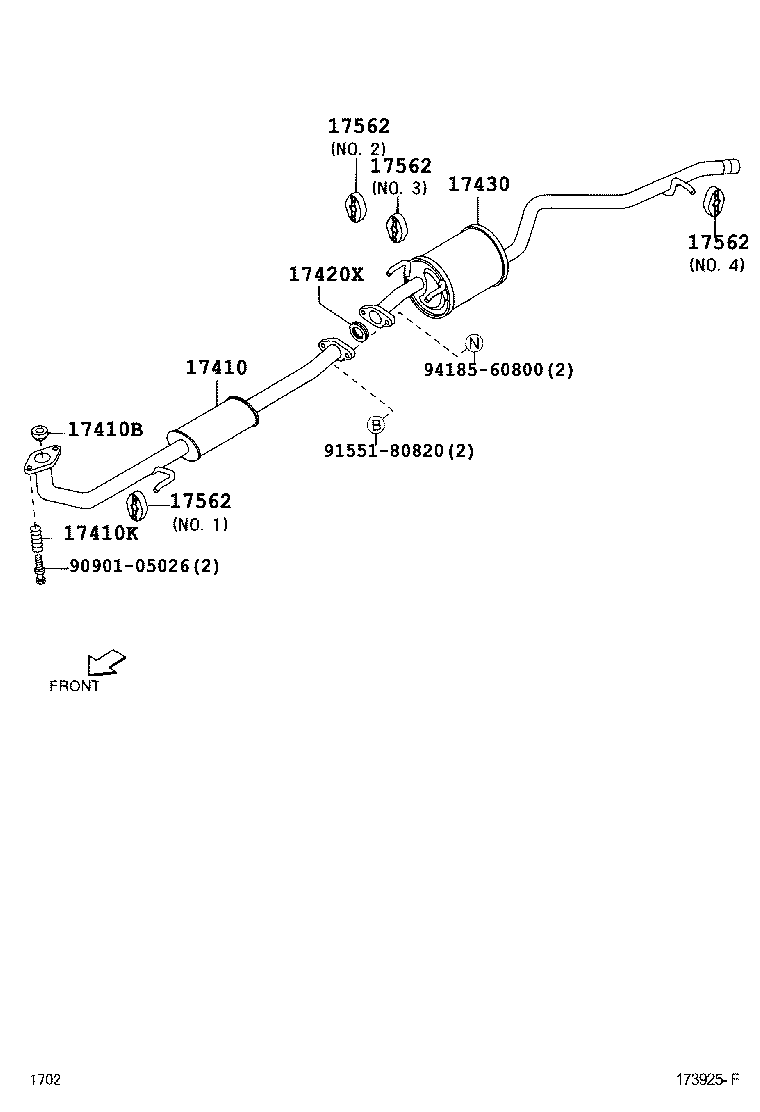

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-BZ020 |
K3DE..F601 |
1 | ||
| 17410-BZ021 |
K3DE..F601 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-64030 |
K3#..F601 |
1 | ||
| 17410K - SPRING, EXHAUST PIPE | ||||
| 17152-BZ010 |
K3#..F601 |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-BZ010 |
K3#..F601 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-BZ020 |
K3#..F601..BRU,IDN,TH |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17567-87703 |
K3#..F601 NO.2,3,4 |
3 | ||
| 17567-B0010 |
K3#..F601 NO.1 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17567-87703 |
K3#..F601 NO.2,3,4 |
3 | ||
| 17567-B0010 |
K3#..F601 NO.1 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17567-87703 |
K3#..F601 NO.2,3,4 |
3 | ||
| 17567-B0010 |
K3#..F601 NO.1 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17567-87703 |
K3#..F601 NO.2,3,4 |
3 | ||
| 17567-B0010 |
K3#..F601 NO.1 |
1 | ||
| Common parts | ||||
| 90901-05026 | ||||
| 91551-80820 | ||||
| 94185-60800 | ||||
