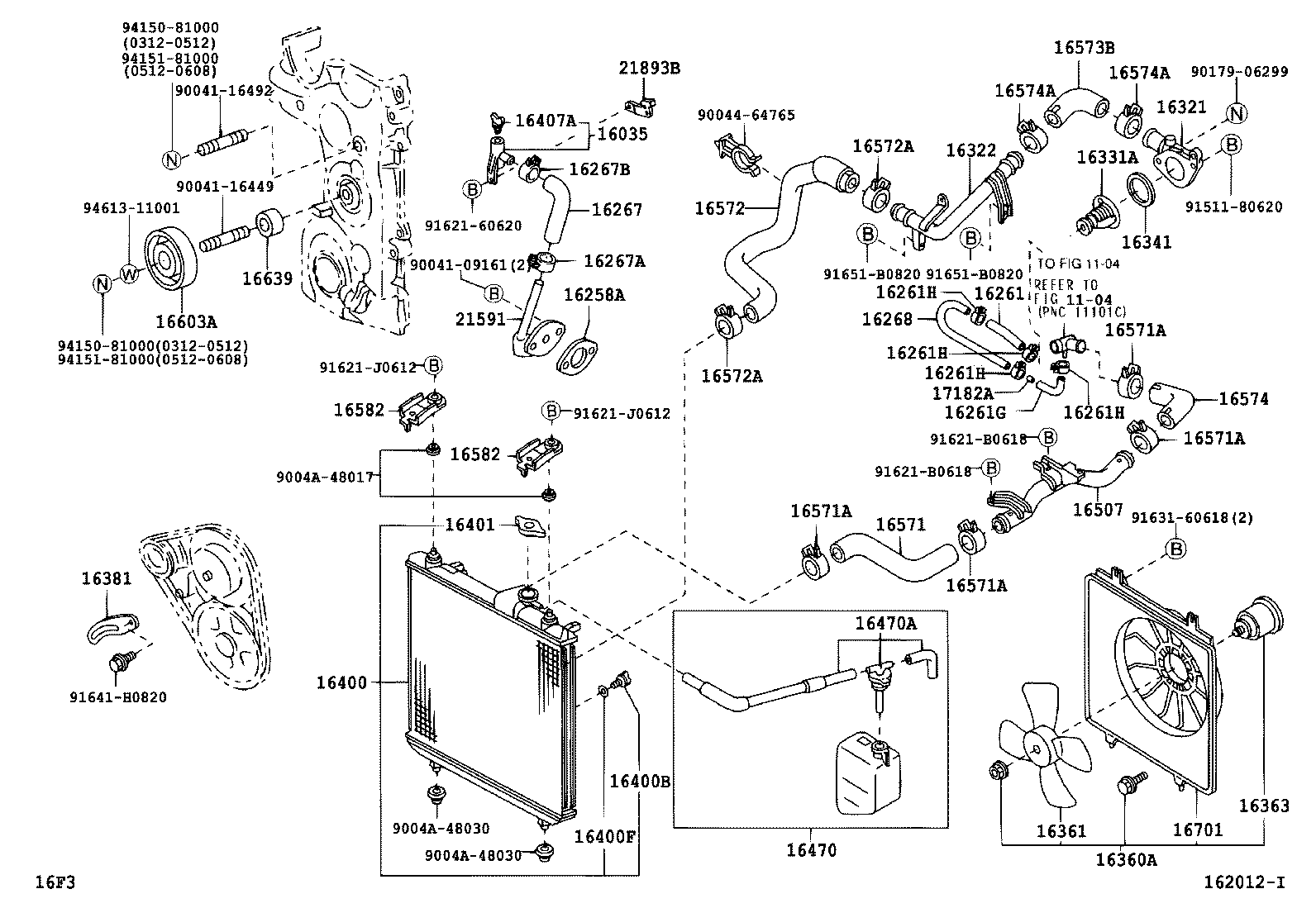

F601RM-GMMEJ (2003)
Toyota Avanza
(0312-0608)K3DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16035 - JOINT, WATER HOSE | ||||
| 16035-97401 |
K3#..F601 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-BZ010 |
K3#..F601 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ020 |
K3#..F601 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ030 |
K3DE..F601 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-BZ010 |
K3#..F601 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90044-67029 |
K3#..F601 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90044-67400 |
K3#..F601 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-BZ010 |
K3DE..F601;K3VE..F601..LIMD |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-BZ010 |
K3#..F601 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-BZ020 |
K3#..F601 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33088 |
K3#..F601 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
K3#..F601 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-BZ010 |
K3DE..F601 |
1 | ||
| 16361 - FAN | ||||
| 16361-BZ010 |
K3DE..F601 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-BZ010 |
K3DE..F601 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-BZ010 |
K3#..F601 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-BZ020 |
K3DE..F601 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
K3#..F601 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
K3#..F601 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-BZ010 |
K3DE..F601 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-97201 |
K3#..F601 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-BZ070 |
K3#..F601..BRU,IDN,TH |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16503-BZ010 |
K3#..F601..BRU,IDN,TH |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-BZ010 |
K3DE..F601 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-BZ020 |
K3#..F601..5F..(IDN,MA) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-BZ020 |
K3#..F601..5F..(IDN,MA) |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67473 |
K3#..F601..5F..(IDN,MA) |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67473 |
K3#..F601..5F..(IDN,MA) |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-BZ010 |
K3#..F601 |
1 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-BZ010 |
K3#..F601 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67473 |
K3#..F601 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ010 |
K3#..F601..5F..(IDN,MA) |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-BZ010 |
K3#..F601..5F..(IDN,MA) |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-97401 |
K3#..F601 |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-BZ010 |
K3#..F601 |
1 | ||
| 16639-BZ020 |
K3#..F601 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-BZ010 |
K3DE..F601 |
1 | ||
| 17182A - ORIFICE, WATER | ||||
| 17182-BZ020 |
K3DE..F601 |
1 | ||
| 21591 - PLATE, WATER BY-PASS | ||||
| 21591-BZ010 |
K3#..F601 |
1 | ||
| 21893B - BRACKET | ||||
| 21893-BZ010 |
K3#..F601 |
1 | ||
| Common parts | ||||
| 90041-09161 | ||||
| 90041-16449 | ||||
| 90041-16492 | ||||
| 90044-64765 | ||||
| 9004A-48017 | ||||
| 9004A-48030 | ||||
| 90179-06299 | ||||
| 91511-80620 | ||||
| 91621-60620 | ||||
| 91621-B0618 | ||||
| 91621-J0612 | ||||
| 91631-60618 | ||||
| 91641-H0820 | ||||
| 91651-B0820 | ||||
| 94150-81000 | ||||
| 94151-81000 | ||||
| 94613-11001 | ||||
| Linked diagrams | ||||
| 1104 | ||||

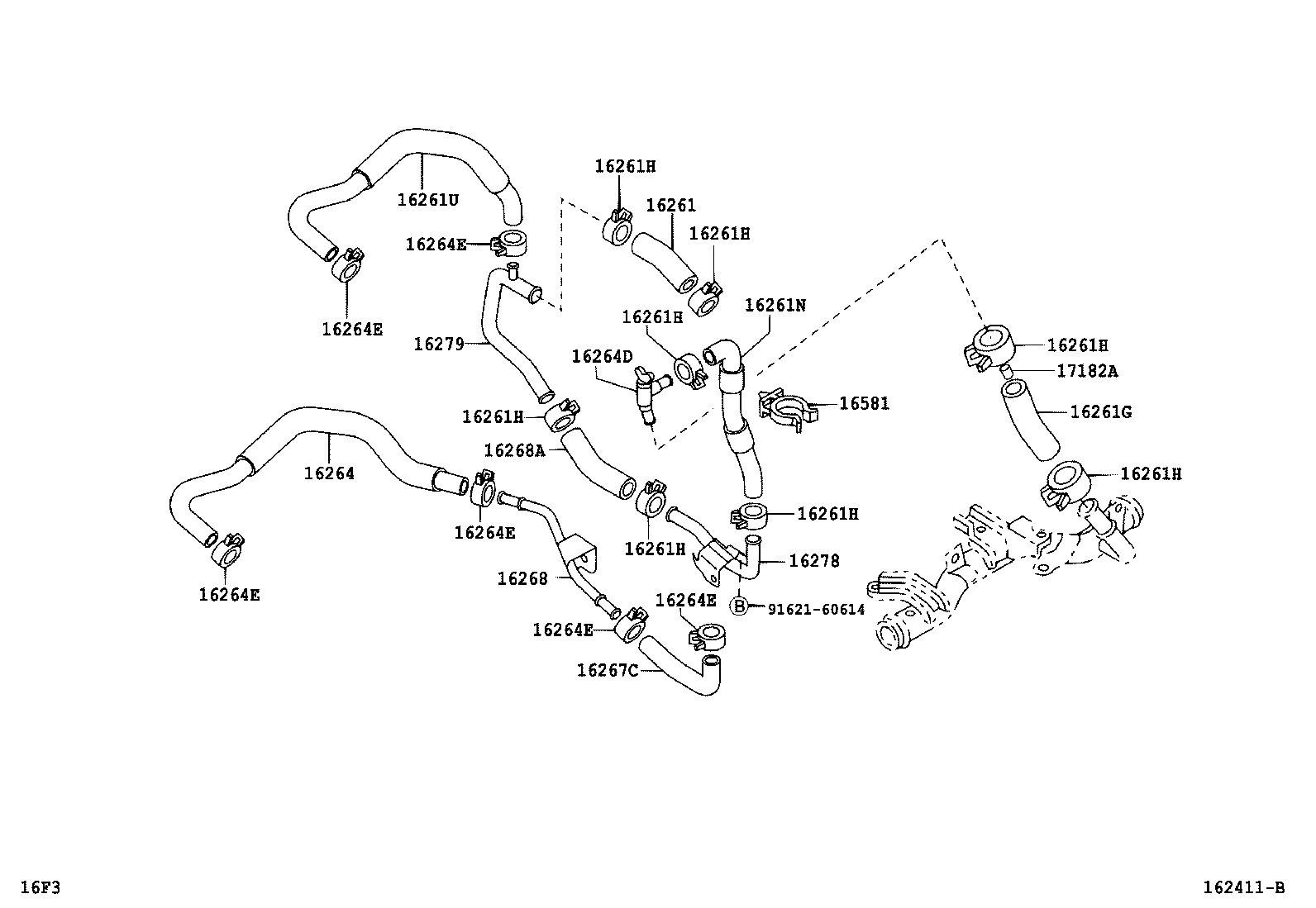

ILLUST NO. 2 OF 2(0410- )K3VE..E,GL..BRU,TH ; (0410- )K3#..5F..IDN,MA..PS1 ; (0410- )K3VE..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-BZ020 |
K3#..F601 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ030 |
K3DE..F601 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-67207 |
K3DE..F601 |
4 | ||
| 90044-67245 |
K3DE..F601;K3VE..F601..TH |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-BZ010 |
K3DE..F601;K3VE..F601..LIMD |
1 | ||
| 17182A - ORIFICE, WATER | ||||
| 17182-BZ020 |
K3DE..F601 |
1 | ||
| Common parts | ||||
| 91621-60614 | ||||
Part Price Details
