F601RM-GMDFJN (2006)
Toyota Avanza
(0608- )F601..G,J ; (0608- )F602..E,G,GL,J,S..GEN,IDN,PHL,SA,TH

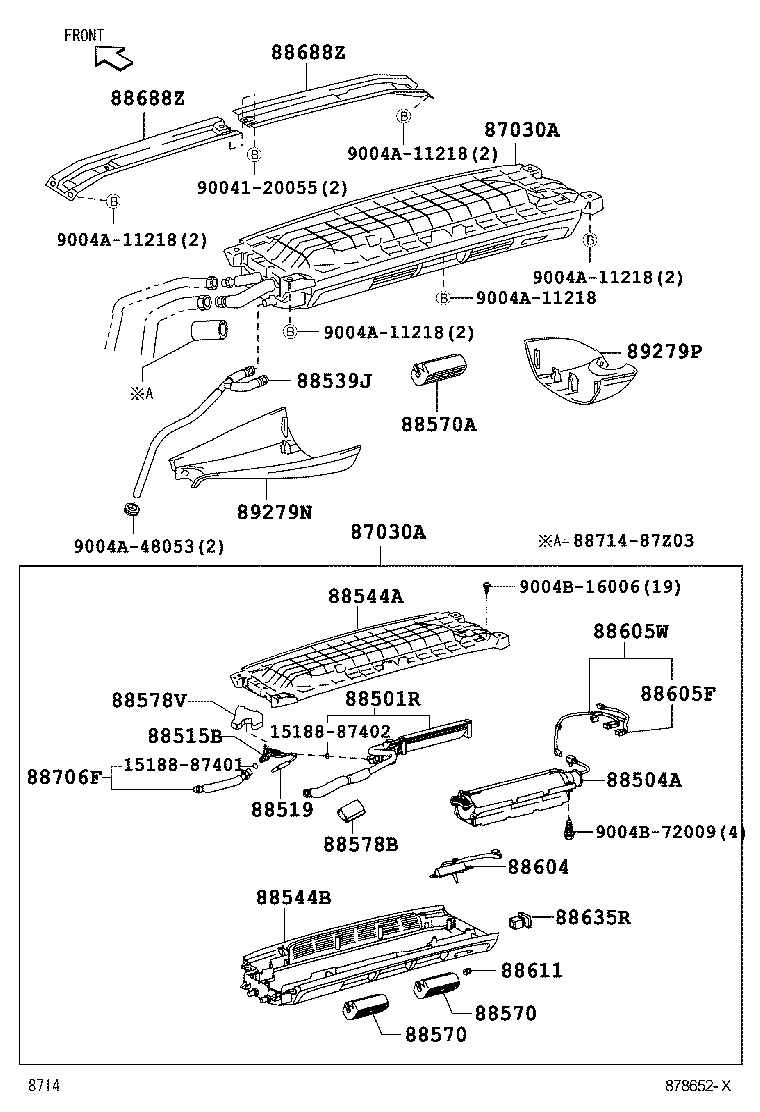

DUAL AIR-CON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-BZ040A0 |
F601..G IVORY,TRIM0# |
1 | ||
| 87030-BZ040E0 |
F601..G GREGE,TRIM4# |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-BZ040A0 |
F601..G IVORY,TRIM0# |
1 | ||
| 87030-BZ040E0 |
F601..G GREGE,TRIM4# |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-BZ010 |
F601..G,J |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-BZ010 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88515-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88519 - HOLDER, REMOTE BULB | ||||
| 88519-87701 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88519-87701 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-BZ020 |
F601..G,J;F602..(E,G,GL,J,S)..(GEN,IDN,PHL,SA,TH) |
2 | ||
| 88544A - CASE, COOLER BLOWER, UPPER | ||||
| 88502-BZ040 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88544B - CASE, COOLER BLOWER, LOWER | ||||
| 88502-BZ010 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12100 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88578-12100 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-BZ010 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88604-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88605F - FUSE(FOR COOLER WIRING HARNESS) | ||||
| 82606-B0010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88605W - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-BZ040 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-BZ070 |
F601..E..TH;F601..G,GL,LIMD,S |
1 | ||
| 88635R - RESISTOR, BLOWER | ||||
| 88635-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
2 | ||
| 88688Z - BRACKET | ||||
| 88688-BZ010 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
2 | ||
| 88706F - TUBE SUB-ASSY, LIQUID, F | ||||
| 9004B-91001 |
F601..G,J;F601..5F..MA;F602..(E,G,GL,J,S)..(GEN,IDN,MA,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 15188-87401 | ||||
| 15188-87402 | ||||
| 88714-87Z03 | ||||
| 90041-20055 | ||||
| 9004A-11218 | ||||
| 9004A-48053 | ||||
| 9004B-16006 | ||||
| 9004B-72009 | ||||

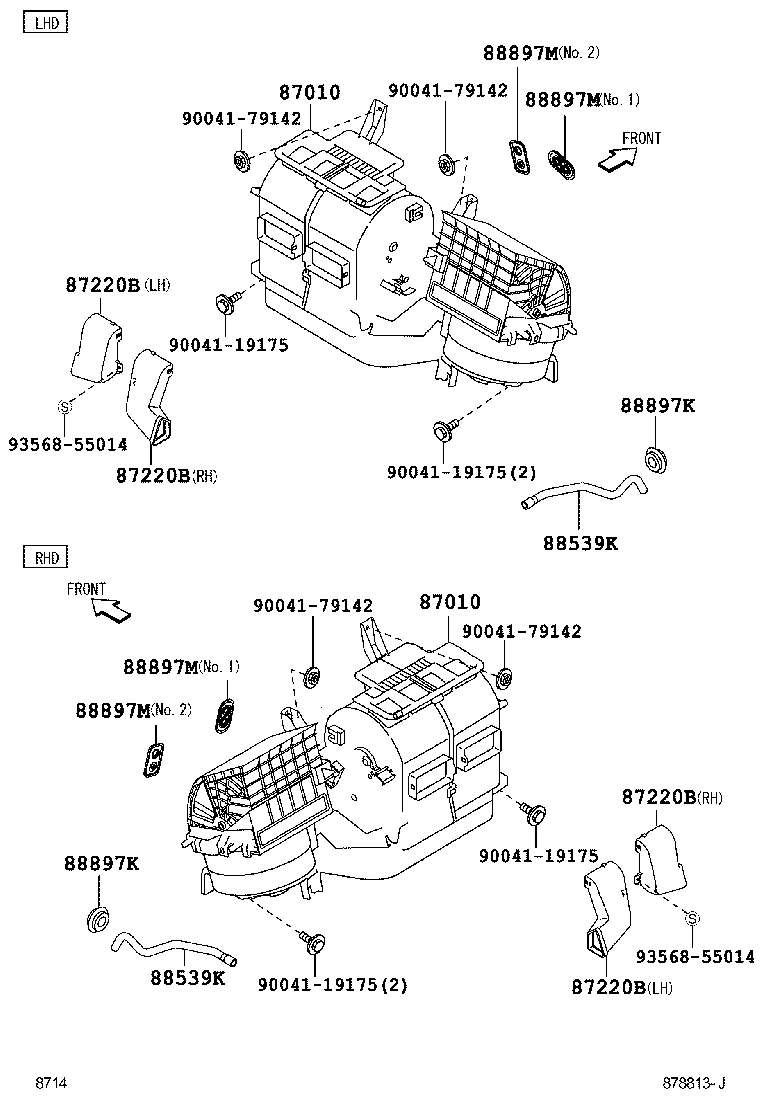

(0608- )GEN,MXC,SA
W/HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ040 |
F60#..SA |
1 | ||
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ040 |
F60#..SA |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-BZ060 |
F60#..SA LH |
1 | ||
| 87220-BZ050 |
F60#..SA RH |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-BZ060 |
F60#..SA LH |
1 | ||
| 87220-BZ050 |
F60#..SA RH |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-BZ060 |
F60#..SA LH |
1 | ||
| 87220-BZ050 |
F60#..SA RH |
1 | ||
| 87220B - DUCT ASSY, AIR | ||||
| 87220-BZ060 |
F60#..SA LH |
1 | ||
| 87220-BZ050 |
F60#..SA RH |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-BZ080 |
F60#..(DLX,GL)..SA |
1 | ||
| 88539-BZ081 |
F60#..SA |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-BZ080 |
F60#..(DLX,GL)..SA |
1 | ||
| 88539-BZ081 |
F60#..SA |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-87Z13 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-87Z13 |
F60#..GEN,IDN,MXC,PHL,SA,TH |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 88897-BZ070 |
F60#..SA NO.2 |
1 | ||
| 88897-BZ050 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) NO.1 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 88897-BZ070 |
F60#..SA NO.2 |
1 | ||
| 88897-BZ050 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) NO.1 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 88897-BZ070 |
F60#..SA NO.2 |
1 | ||
| 88897-BZ050 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) NO.1 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 88897-BZ070 |
F60#..SA NO.2 |
1 | ||
| 88897-BZ050 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) NO.1 |
1 | ||
| Common parts | ||||
| 90041-19175 | ||||
| 90041-79142 | ||||
| 93568-55014 | ||||

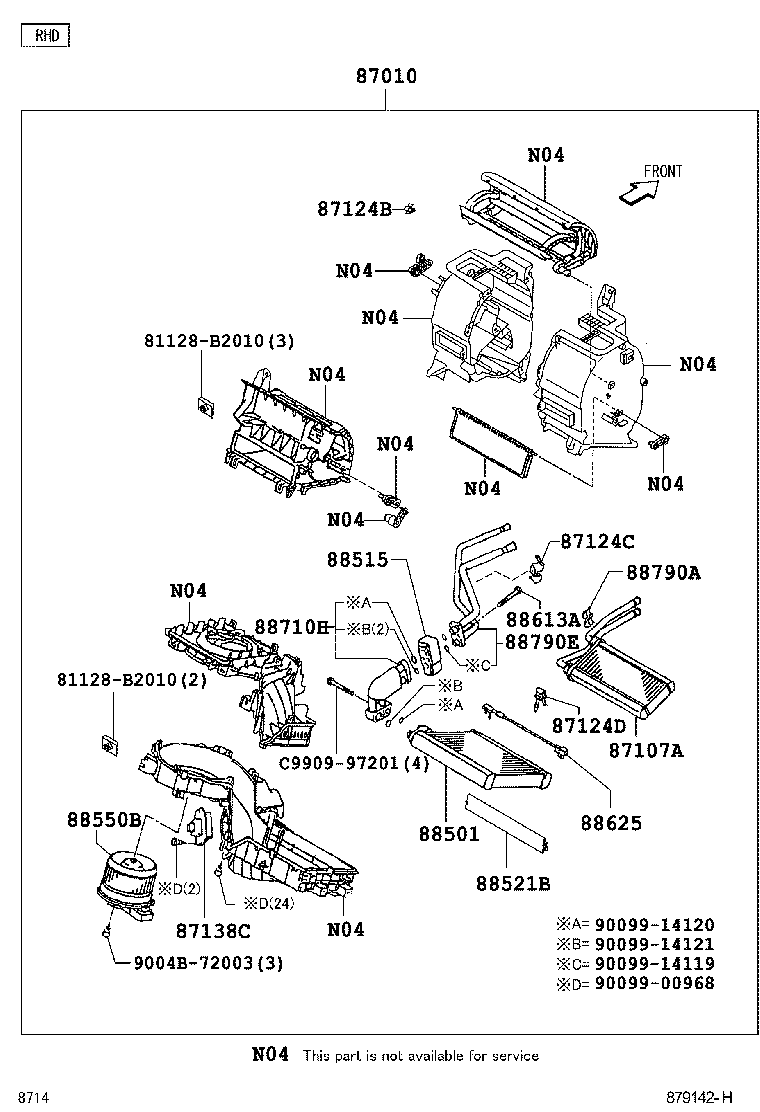

(0608- )SA
W/HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-BZ040 |
F60#..SA |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-BZ010 |
F60#..SA |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87126-BZ010 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) NO.2 |
1 | ||
| 87126-87501 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) NO.1 |
2 | ||
| 87124C - CLAMP, HEATER | ||||
| 87124-BZ010 |
F60#..SA |
1 | ||
| 87124D - CLAMP, HEATER, NO.3 | ||||
| 87126-B1010 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-97206 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-BZ030 |
F60#..SA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-BZ020 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
1 | ||
| 88521B - PACKING (FOR COOLER UNIT CASE) | ||||
| 88578-BZ130 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B1020 |
F60#..SA |
1 | ||
| 88613A - LEVER, COOLER CONTROL, NO.1 | ||||
| 93385-16030 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-BZ290 |
F601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-BZ080 |
F60#..SA |
1 | ||
| 88790A - SENSOR, THERMO | ||||
| 88898-B4030 |
F601..CTM,DLX,STD;F602..(DLX,G,GL)..(GEN,MXC,SA) |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-BZ070 |
F60#..SA |
1 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 9004B-72003 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| C9909-97201 | ||||
