F601RM-GMDFJJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )RHD..5F

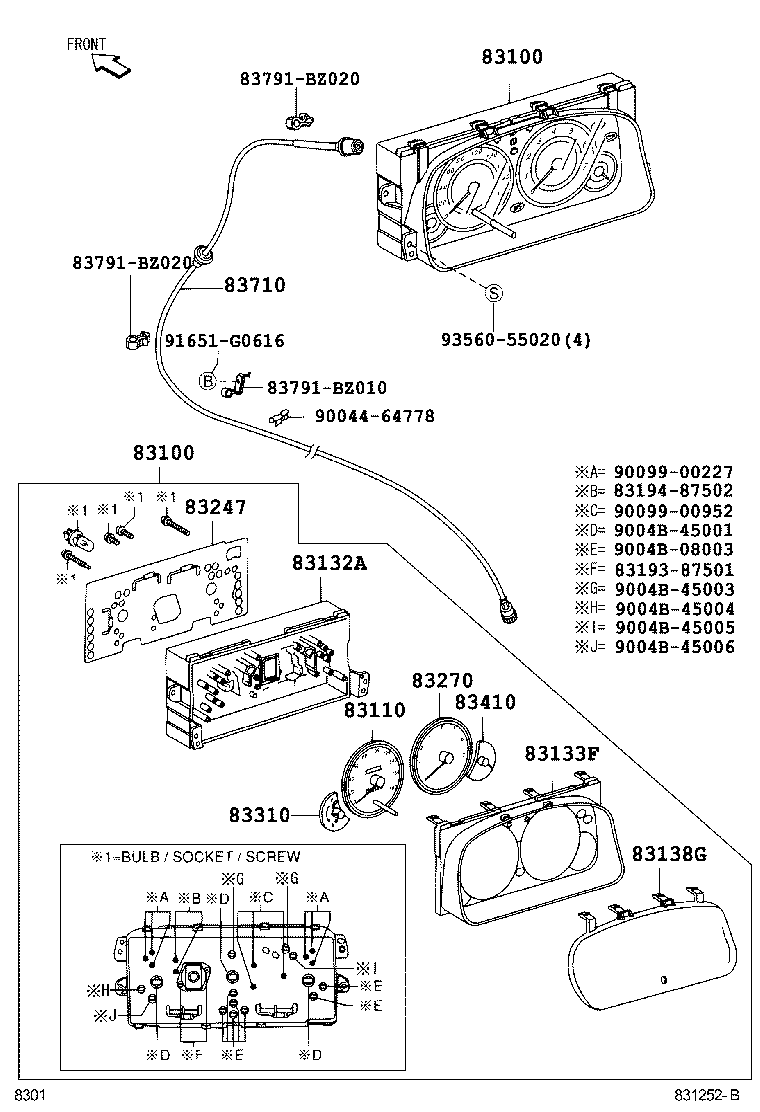

Click highlighted areas on diagram

diagram 83100 83100 83110 83132A 83133F 83138G 8319387501 8319487502 83247 83270 83310 83410 83710 83791BZ010 83791BZ020 83791BZ020 9004464778 9004B08003 9004B45001 9004B45003 9004B45004 9004B45005 9004B45006 9009900227 9009900952 91651G0616 9356055020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-BZ010

F601..5F..(BRU,IDN,TH)

 1
83800-BZ240

F601..RHD..(GEN,IDN)

 1
83800-BZG90

F601..RHD..5F..(GEN,IDN)

 1
83100 - METER ASSY, COMBINATION
83800-BZ010

F601..5F..(BRU,IDN,TH)

 1
83800-BZ240

F601..RHD..(GEN,IDN)

 1
83800-BZG90

F601..RHD..5F..(GEN,IDN)

 1
83110 - SPEEDOMETER ASSY
83220-BZ010

F601..5F

 1
83220-BZ030

F60#..RHD..5F..(GEN,IDN)

 1
83220-BZ130

F601..5F..(E,G,J)..(GEN,IDN,PHL);F602..5F..(GL,J,S)..(GEN,IDN,MXC,TH)

 1
83132A - CASE, METER
83841-BZ010

F601..5F

 1
83841-BZ010

F60#..LHD..5F..(DLX,GL);F601..5F..(CTM,E,G,J,STD)

 1
83133F - PLATE, METER
83811-BZ010

F60#..5F..(GEN,IDN,MA,MXC,PHL,SA)

 1
83811-BZ010

F601..5F

 1
83138G - GLASS, COMBINATION METER
83852-BZ010

F60#..5F..(GEN,IDN,MA,MXC,PHL,SA)

 1
83852-BZ010

F601..5F

 1
83247 - PLATE, METER CIRCUIT
83861-BZ040

F601..RHD..5F..(GEN,IDN)

 1
83861-BZ010

F601..5F..(BRU,IDN,TH)

 1
83270 - TACHOMETER ASSY, ENGINE
83881-BZ040

F601..RHD..(GEN,IDN)

 1
83881-BZ010

F601..5F

 1
83881-BZ110

F601..5F..(GEN,IDN,PHL,SA)

 1
83310 - GAGE ASSY, FUEL RECEIVER
83882-BZ010

F601..5F

 1
83882-BZ030

F60#..5F..(GEN,IDN,MXC,PHL,SA)

 1
83882-BZ050

F60#..5F..(GEN,IDN,MXC,PHL,SA,TH)

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83883-BZ050

F60#..5F..(GEN,IDN,MXC,PHL,SA,TH)

 1
83883-BZ010

F601..5F

 1
83883-BZ030

F60#..5F..(GEN,IDN,MXC,PHL,SA)

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-BZ010

F601..5F

 1
83710-BZ010

F60#..RHD..5F

 1
83710-BZ011

F60#..RHD..5F

 1
Common parts
83193-87501
83194-87502
83791-BZ010
83791-BZ020
90044-64778
9004B-08003
9004B-45001
9004B-45003
9004B-45004
9004B-45005
9004B-45006
90099-00227
90099-00952
91651-G0616
93560-55020

(0608- )F602 ; (0608- )F601..MA ; (0608-)F601..CTM,DLX,G,J,STD

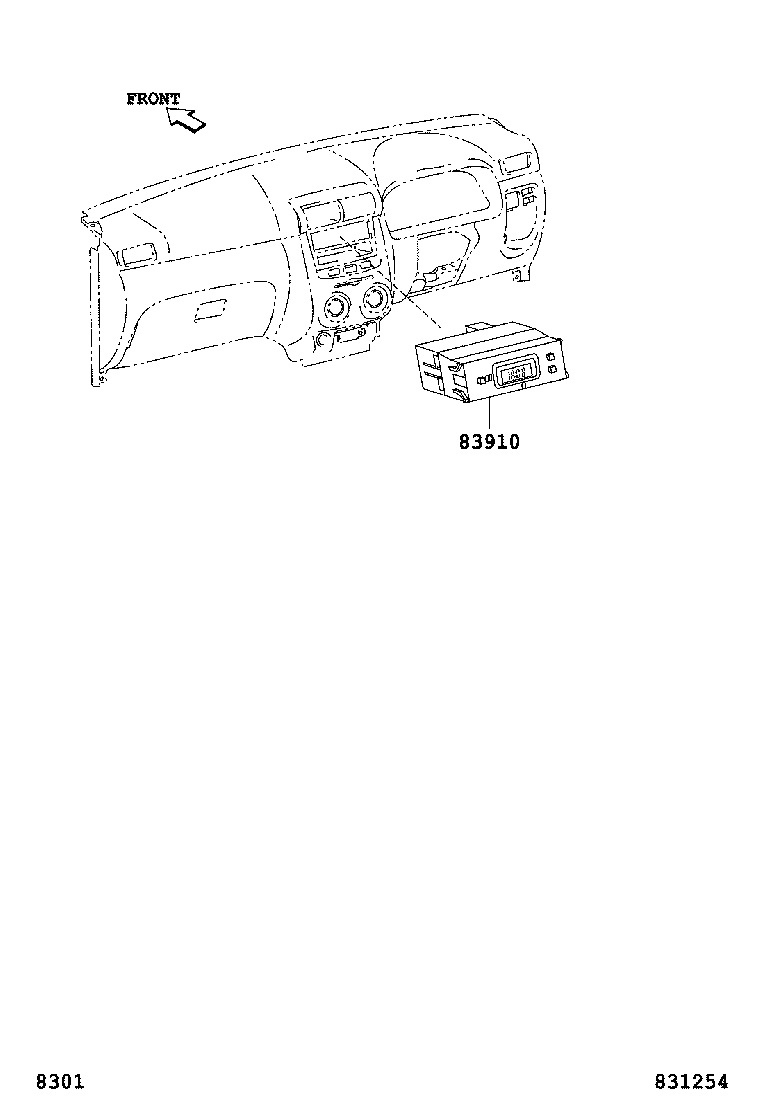

Click highlighted areas on diagram

diagram 83910
Part # Description Qty Price
83910 - CLOCK ASSY
83910-BZ010

F602;F601..5F..MA;F601..CTM,DLX,G,J,STD

 1
