F601RM-GMDFJJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

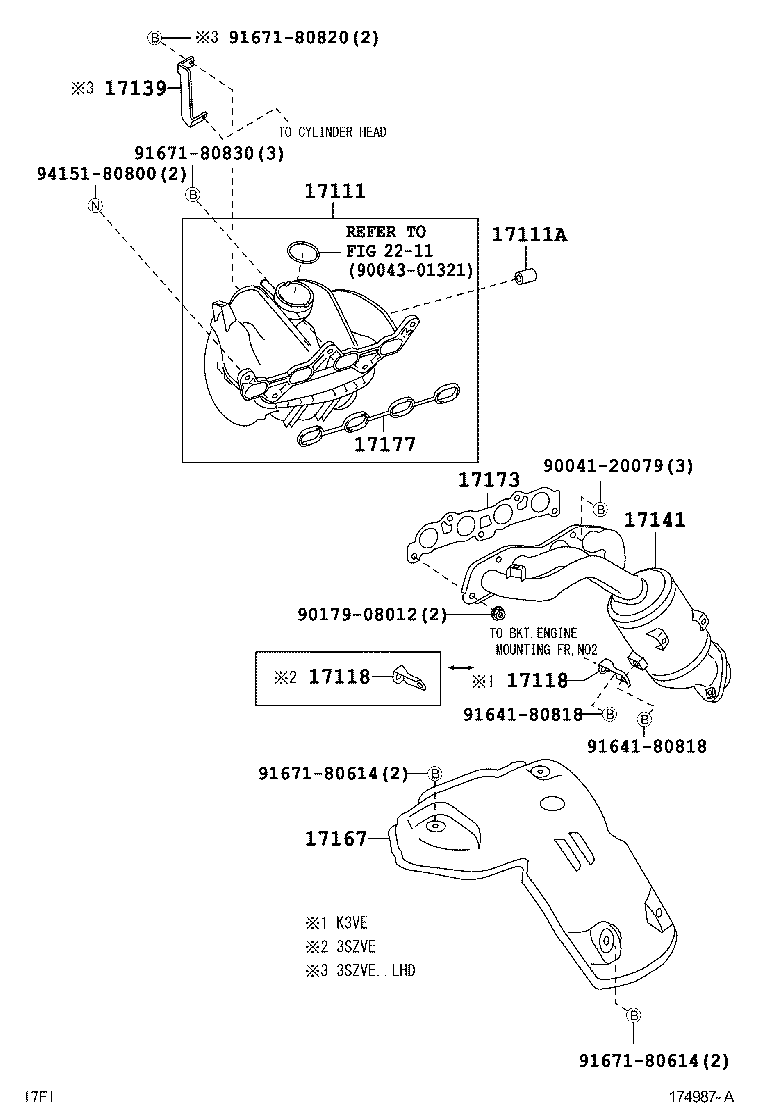

Click highlighted areas on diagram

diagram 17111 17111A 17118 17118 17139 17141 17167 17173 17177 2211 9004120079 9017908012 9164180818 9164180818 9167180614 9167180614 9167180820 9167180830 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17100-97403

K3#..F601

 1
17120-BZ040

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17111A - PLUG, NO.1
90043-39029

K3VE,3SZVE..F60#..GEN,IDN,MXC,PHL,SA,TH

OD=8.0,L=17.0

 1
17118 - STAY, MANIFOLD
17118-BZ030

K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

T=3.2

 1
17118 - STAY, MANIFOLD
17118-BZ030

K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

T=3.2

 1
17141 - MANIFOLD, EXHAUST
17140-BZ070

K3VE..F601

 1
17140-BZ071

K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-B0020

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-BZ020

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
17173-BZ020

K3#..F601

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-97402

K3#..F601

 1
17177-B1020

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
Common parts
90041-20079
90179-08012
91641-80818
91671-80614
91671-80820
91671-80830
94151-80800
Linked diagrams
2211
