F601RM-GMDFJJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

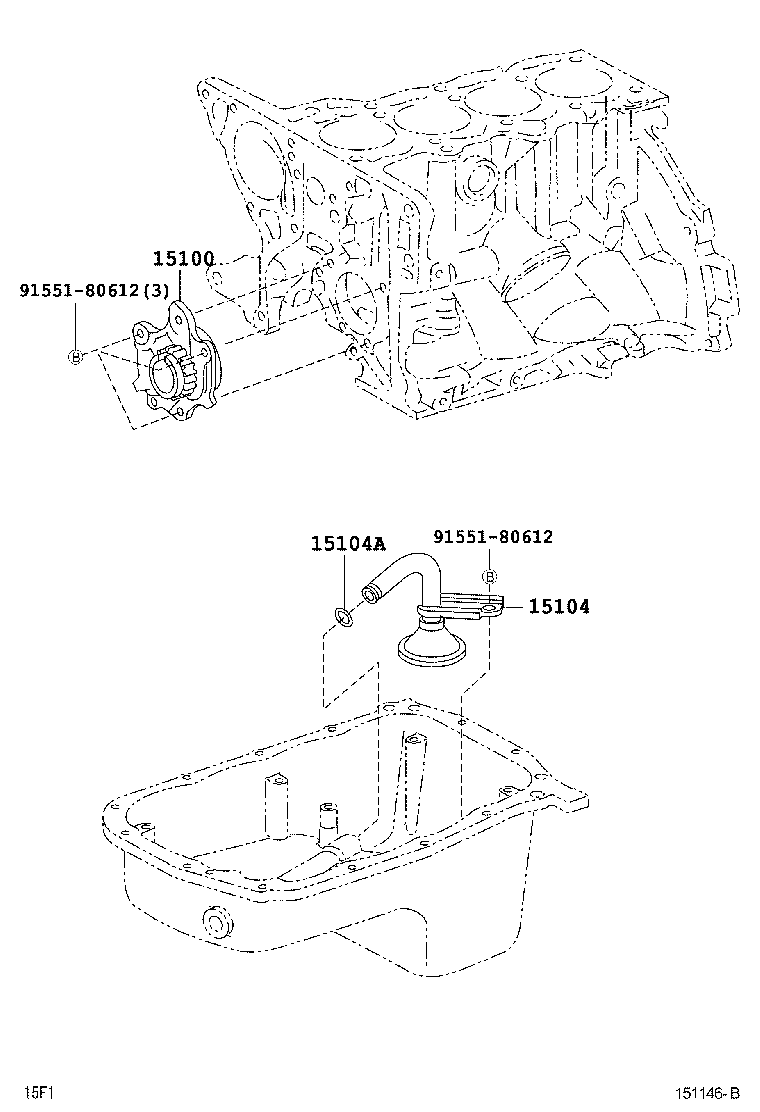

Click highlighted areas on diagram

diagram 15100 15104 15104A 9155180612 9155180612
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-97401

K3#..F601

 1
15100-97401

K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15104 - STRAINER SUB-ASSY, OIL
15140-B0010

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
15140-97403

K3#..F601

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24016

K3#..F601

 1
96723-24016

3SZVE..F602;K3VE..F601..5F..MA;K3VE..F601..GEN,IDN,PHL,SA

 1
Common parts
91551-80612
