F601RM-GMDEJ (2003)

Toyota Avanza

Production Dec 2003 - Aug 2006
Engine K3DE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

Click highlighted areas on diagram

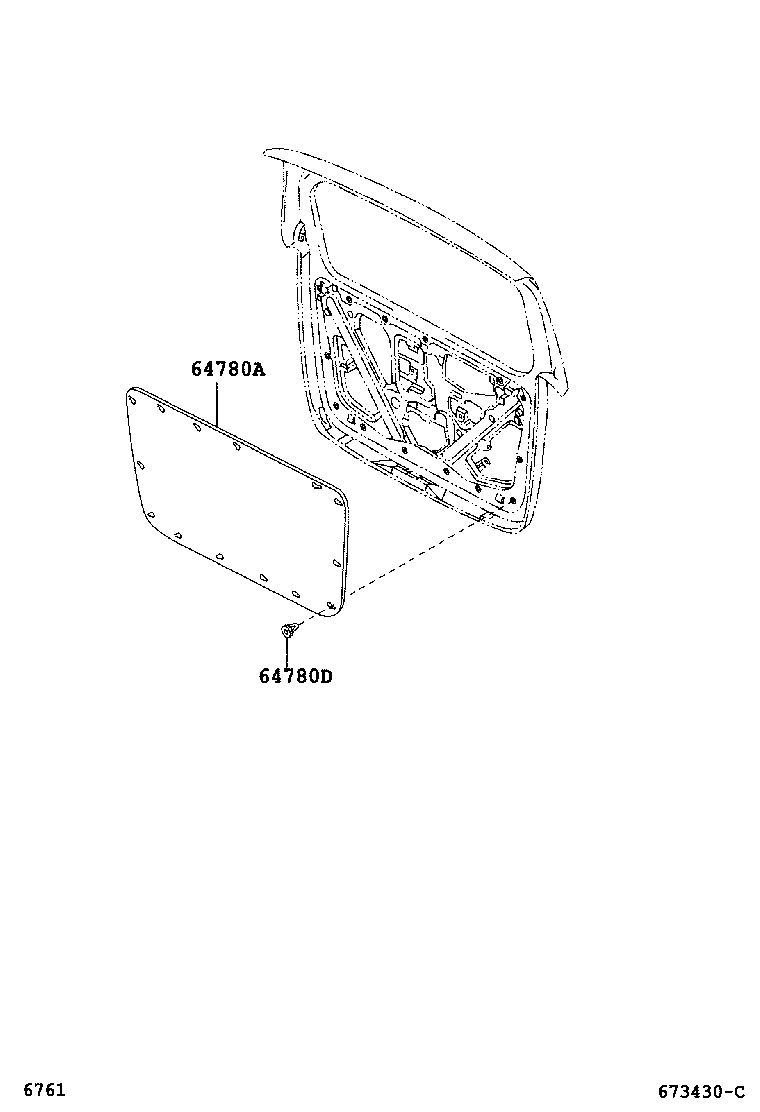

diagram 64780A 64780D
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-BZ010B0

F601

DK.GRAY,TRIM1#

 1
64780D - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-87707

F601

 14

(0312-0608)

Click highlighted areas on diagram

diagram 62785F 62785F 62785F 62785F 62785F 64827A 64827A 67005 67881A 67891A 67891A 68131 75129C 75129C 76811A 76821 76823 76823 9004108011 9004179125 9004467474 9043005003
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-87401

F601

 5
62785F - SPACER, BACK DOOR GLASS
62785-87401

F601

 5
62785F - SPACER, BACK DOOR GLASS
62785-87401

F601

 5
62785F - SPACER, BACK DOOR GLASS
62785-87401

F601

 5
62785F - SPACER, BACK DOOR GLASS
62785-87401

F601

 5
64827A - CLIP, BACK WINDOW GLASS, RH
64827-87Z01

F601

 2
64827A - CLIP, BACK WINDOW GLASS, RH
64827-87Z01

F601

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-BZ020

F601..E..IDN

W(REAR WIPER)

 1
67005-BZ030

F601..LVVT

W(REAR SPOILER & REAR WIPER)

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-BZ010

F601

 1
67891A - SEAL, BACK DOOR
67891-BZ010

F601

 2
67891A - SEAL, BACK DOOR
67891-BZ010

F601

 2
68131 - GLASS, BACK DOOR
68131-BZ010

F601..LVVT

 1
75129C - CUSHION, REAR LICENCE PLATE
75129-87502

F601

 2
75129C - CUSHION, REAR LICENCE PLATE
75129-87502

F601

 2
76811A - GARNISH, BACK DOOR, OUTSIDE
76811-BZ020

F601

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-BZ010

F601

 1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-BZ010

F601

 2
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76823-BZ010

F601

 2
Common parts
90041-08011
90041-79125
90044-67474
90430-05003
