F601LM-GMDFJ (2006)

Toyota Avanza

Production Aug 2006 - Sep 9999
Engine K3VE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0608- )

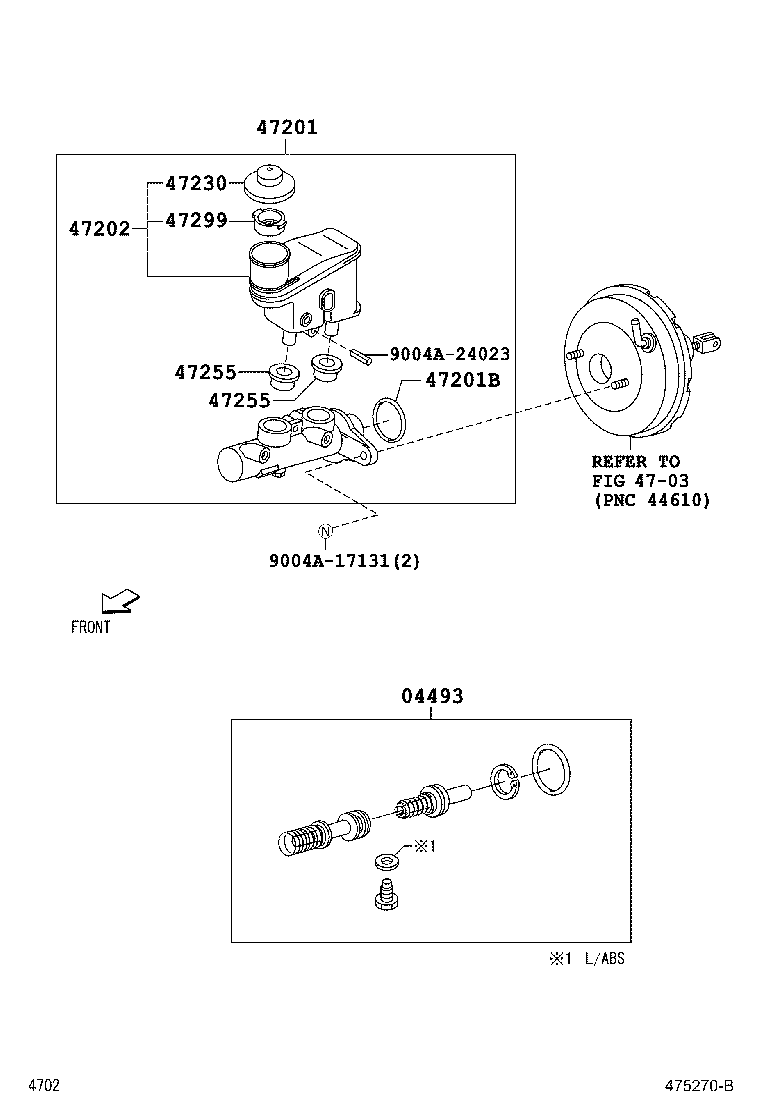

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47230 47255 47255 47299 9004A17131 9004A24023
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-B1040

F601..5F;F601..4AT..MA

 1
04493-B1040

F602..(E,GL)..(MA,MXC);F60#..5F..(DLX,E,J)..(GEN,MA,TH);F601..(CTM,E,G,J,STD,XI)..(GEN,IDN,PHL,SA)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-BZ120

F602..E..MA;F601..5F..MA;F601..(CTM,E,G,STD,XI)..(GEN,IDN,SA)

 1
47201-BZ090

F601..LHD;F602..4AT..MXC

 1
47201-BZ010

F601..5F;F601..4AT..MA

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
9004A-30021

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
9004A-30021

F601

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-BZ010

F601..5F;F601..4AT..MA

 1
47220-BZ020

F602..4AT;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-BZ020

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
47230-BZ010

F601..5F;F601..4AT..MA

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ010

F601

 2
47255-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-BZ010

F601

 2
47255-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-BZ010

F602;F601..5F..MA;F601..GEN,IDN,PHL,SA

 1
Common parts
9004A-17131
9004A-24023
Linked diagrams
4703
