Toyota Avalon MCX20 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
US
AVALON
MCX20L-AESGKA (1999)
4103 - DISC WHEEL & WHEEL CAP

MCX20L-AESGKA (1999)

Toyota Avalon

Production Aug 1999 - Jan 2005

Engine 1MZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

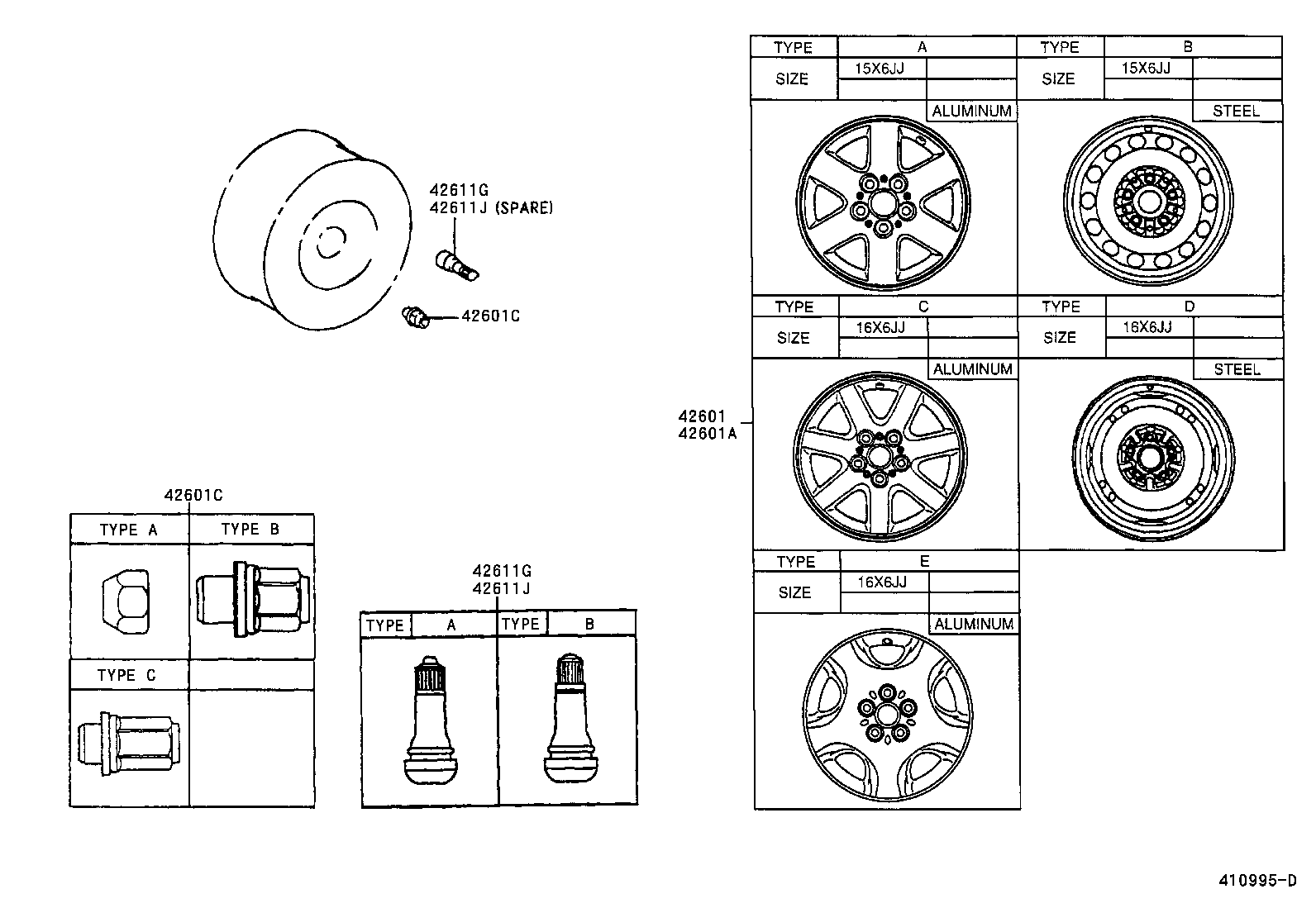

ILLUST NO. 1 OF 4(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-41010	MCX20..XLS 16X6JJ,TYPE E:REFER TO ILLUSTRATION,(J)	06/2002 - 01/2005	4
42611-AC030	MCX20 15X6JJ,TYPE A:REFER TO ILLUSTRATION	06/2002 - 01/2005	4
42611-AC030	MCX20 15X6JJ,TYPE A:REFER ILLUST.	06/2002 - 01/2005	4
42611-AC050	MCX20 16X6JJ,TYPE C:REFER ILLUST.	06/2002 - 01/2005	4
42611-06030	MCX20..XL 15X6JJ,TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42611-06030	MCX20..XL 15X6JJ,TYPE B:REFER TO ILLUSTRATION	06/2002 - 01/2005	4
42611-AC040	MCX20..XLS 16X6JJ,TYPE E:REFER TO ILLUSTRATION,(L)	12/2002 - 01/2005	4
42611-AC050	MCX20 16X6JJ,TYPE C:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42611-AC030	MCX20 15X6JJ,TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42611-AC050	MCX20 16X6JJ,TYPE C:REFER TO ILLUSTRATION	06/2002 - 01/2005	4
42601A - WHEEL, DISC (FOR SPARE)
42611-06030	MCX20 15X6JJ,TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	1
42611-06150	MCX20 16X6JJ,TYPE D:REFER TO ILLUSTRATION	08/2000 - 06/2002	1
42611-06030	MCX20 15X6JJ,TYPE B:REFER TO ILLUSTRATION	06/2002 - 01/2005	1
42611-06150	MCX20 16X6JJ,TYPE D:REFER TO ILLUSTRATION	06/2002 - 01/2005	1
42611-33290	MCX20 16X6JJ,0FFSET 45,TYPE D:REFER TO ILLUSTRATION	08/1999 - 08/2000	1
42601C - NUT, HUB (FOR AXLE)
90084-94001	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2001 - 06/2002	20
90084-94002	MCX20 TYPE C:REFER TO ILLUSTRATION	06/2001 - 06/2002	20
90080-17035	MCX20..XL TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	20
90084-94002	MCX20 TYPE C:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90084-94001	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90080-17035	MCX20..XL TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90942-01083	MCX20 ALUMINUM	08/1999 - 06/2001	20
42601C - NUT, HUB (FOR AXLE)
90084-94001	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2001 - 06/2002	20
90084-94002	MCX20 TYPE C:REFER TO ILLUSTRATION	06/2001 - 06/2002	20
90080-17035	MCX20..XL TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	20
90084-94002	MCX20 TYPE C:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90084-94001	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90080-17035	MCX20..XL TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	20
90942-01083	MCX20 ALUMINUM	08/1999 - 06/2001	20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	1
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	1
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	1
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	1
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	1
90080-45001	MCX20 TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	1
90080-45006	MCX20 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	1

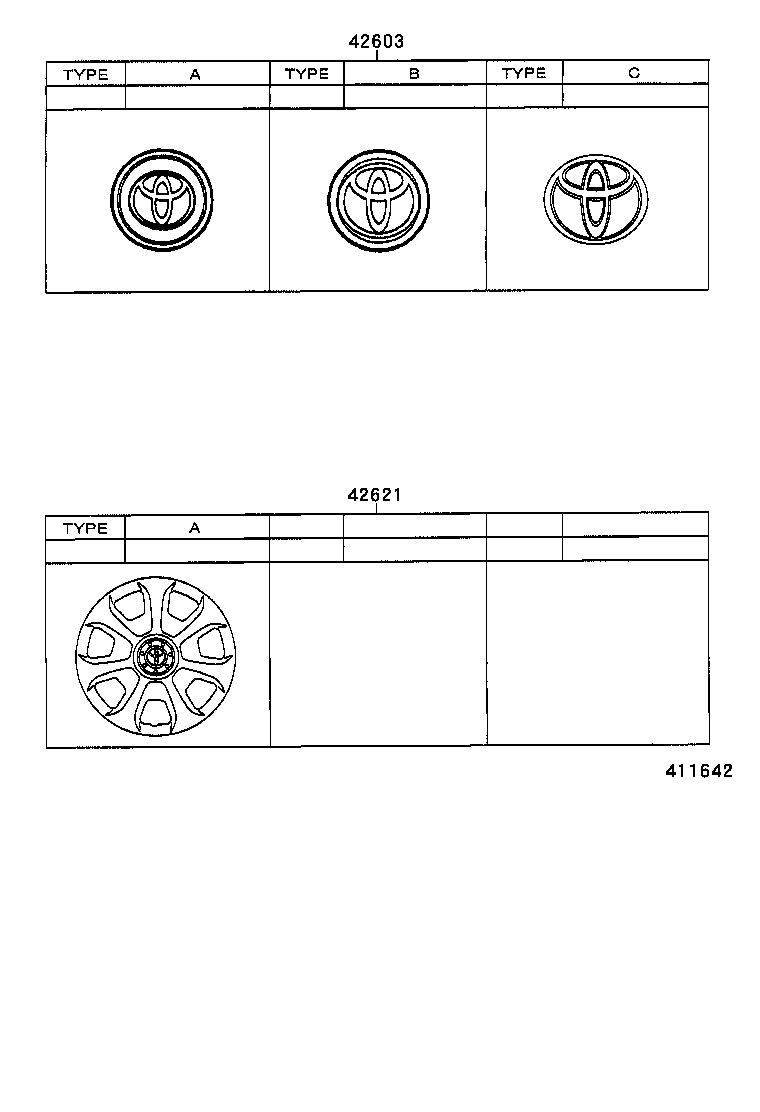

ILLUST NO. 2 OF 4(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-AC020	MCX20 *ALU,TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
42603-AC020	MCX20 *ALU,TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42603-48050	MCX20..XLS *PSC,TYPE C:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
42603-AC030	MCX20 *ALU,TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2999	4
42603-AC030	MCX20 *ALU,TYPE B:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42621 - CAP, WHEEL
42621-AC020	MCX20..XL TYPE A:REFER TO ILLUSTRATION	08/1999 - 06/2002	4
42621-AC020	MCX20..XL TYPE A:REFER TO ILLUSTRATION	06/2002 - 12/2999	4

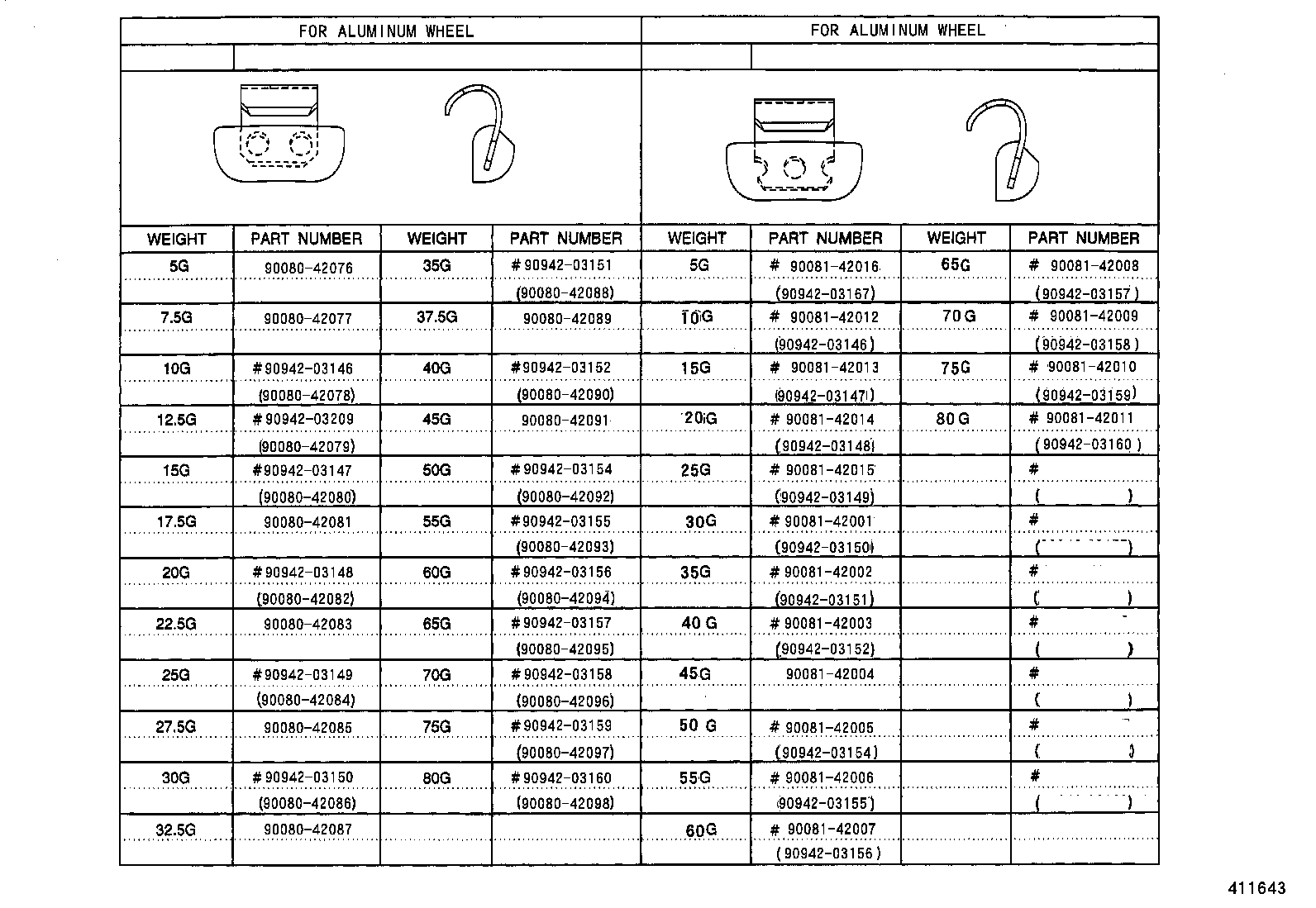

ILLUST NO. 3 OF 4(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42076
90080-42077
90080-42078
90080-42079
90080-42080
90080-42081
90080-42082
90080-42083
90080-42084
90080-42085
90080-42086
90080-42087
90080-42088
90080-42089
90080-42090
90080-42091
90080-42092
90080-42093
90080-42094
90080-42095
90080-42096
90080-42097
90080-42098
90081-42001
90081-42002
90081-42003
90081-42004
90081-42005
90081-42006
90081-42007
90081-42008
90081-42009
90081-42010
90081-42011
90081-42012
90081-42013
90081-42014
90081-42015
90081-42016
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03167
90942-03209

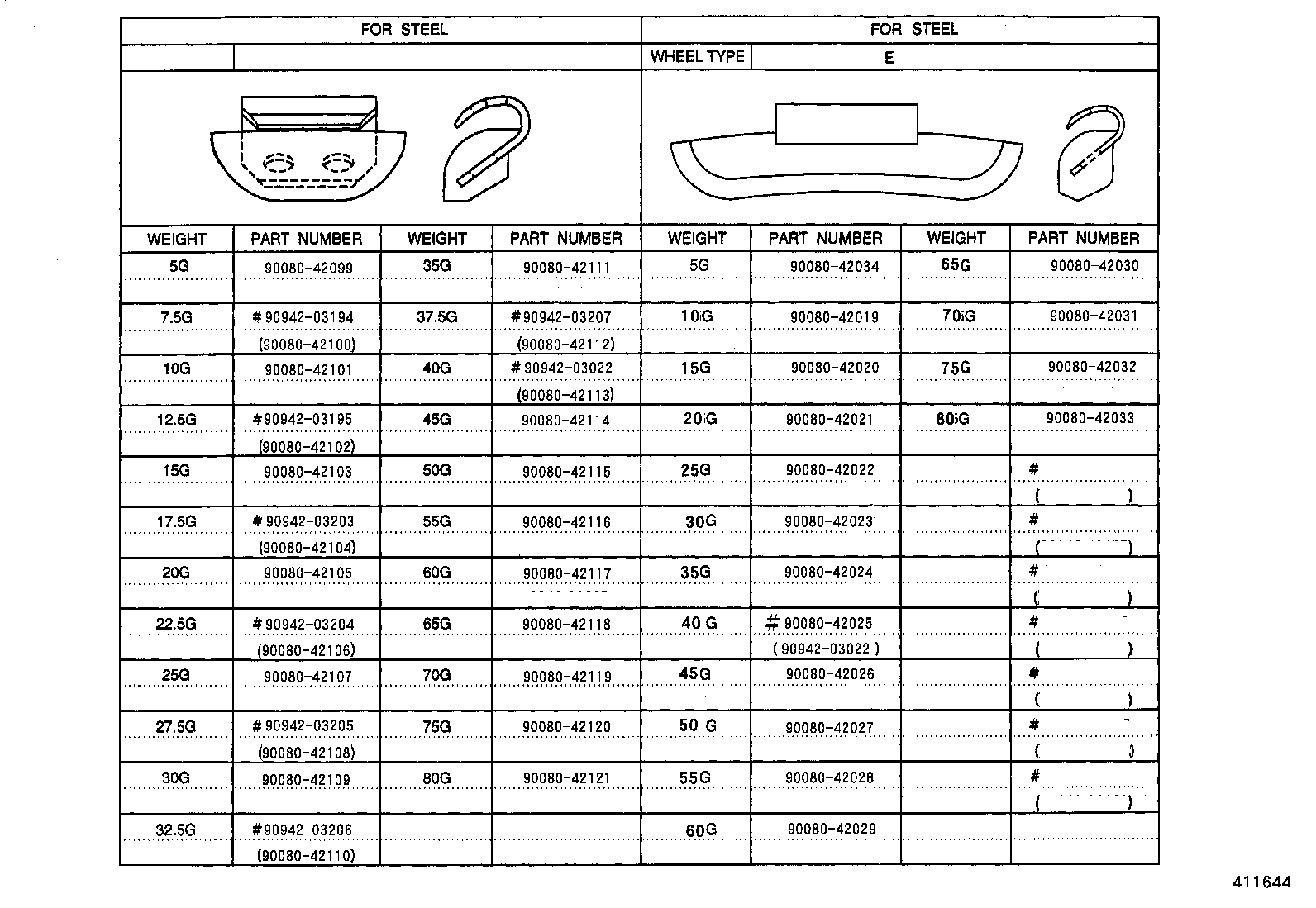

ILLUST NO. 4 OF 4(9908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42019
90080-42020
90080-42021
90080-42022
90080-42023
90080-42024
90080-42025
90080-42026
90080-42027
90080-42028
90080-42029
90080-42030
90080-42031
90080-42032
90080-42033
90080-42034
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03022
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207

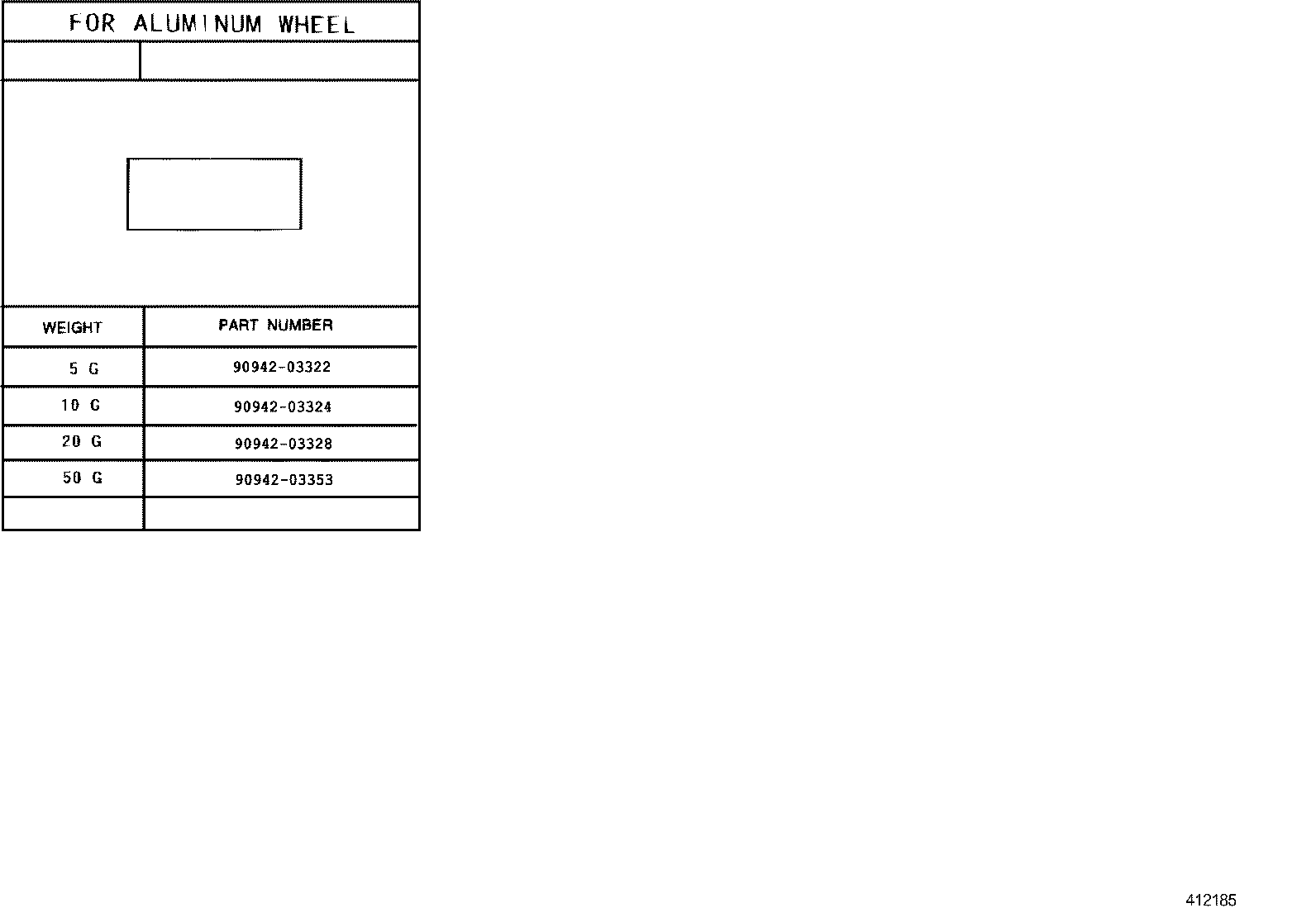

(0412- )XLS

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03322
90942-03324
90942-03328
90942-03353
