MCX20L-AEPNKK (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

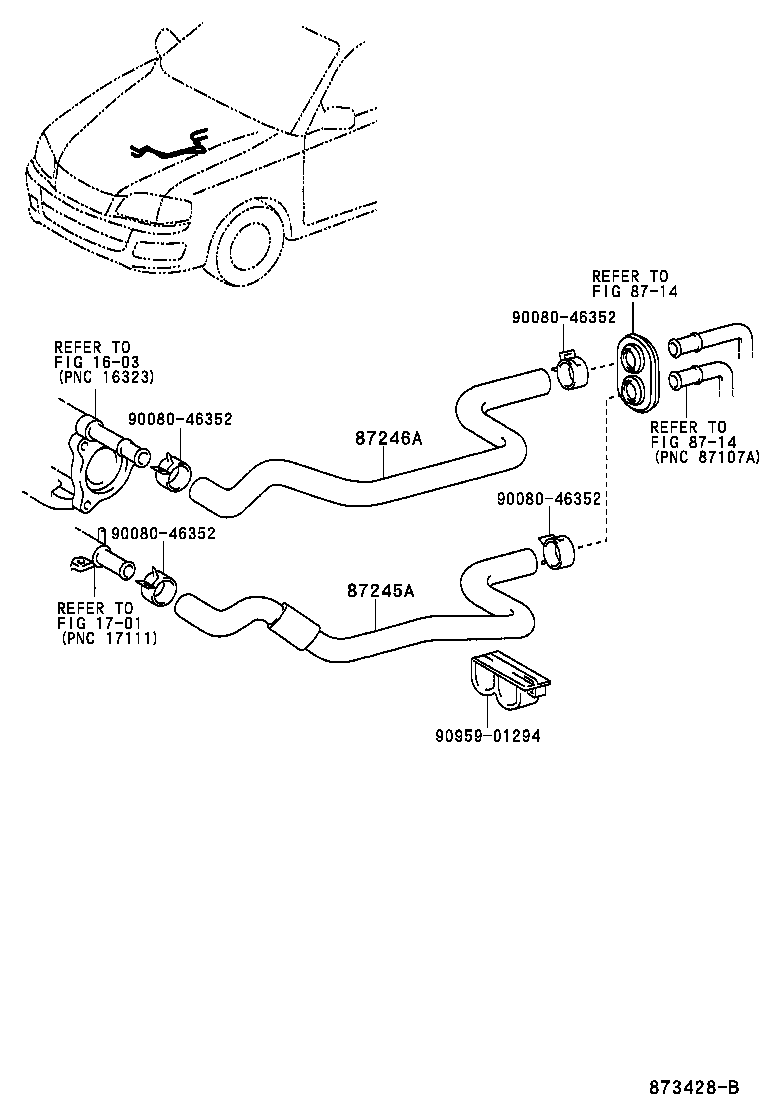

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-07060 |
MCX20 |
1 | ||
| 87245-07060 |
MCX20 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-07070 |
MCX20 |
1 | ||
| 87245-07070 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-46352 | ||||
| 90959-01294 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 8714 | ||||
