MCX20L-AEPNKK (1999)
Toyota Avalon
ILLUST NO. 1 OF10(9908- )

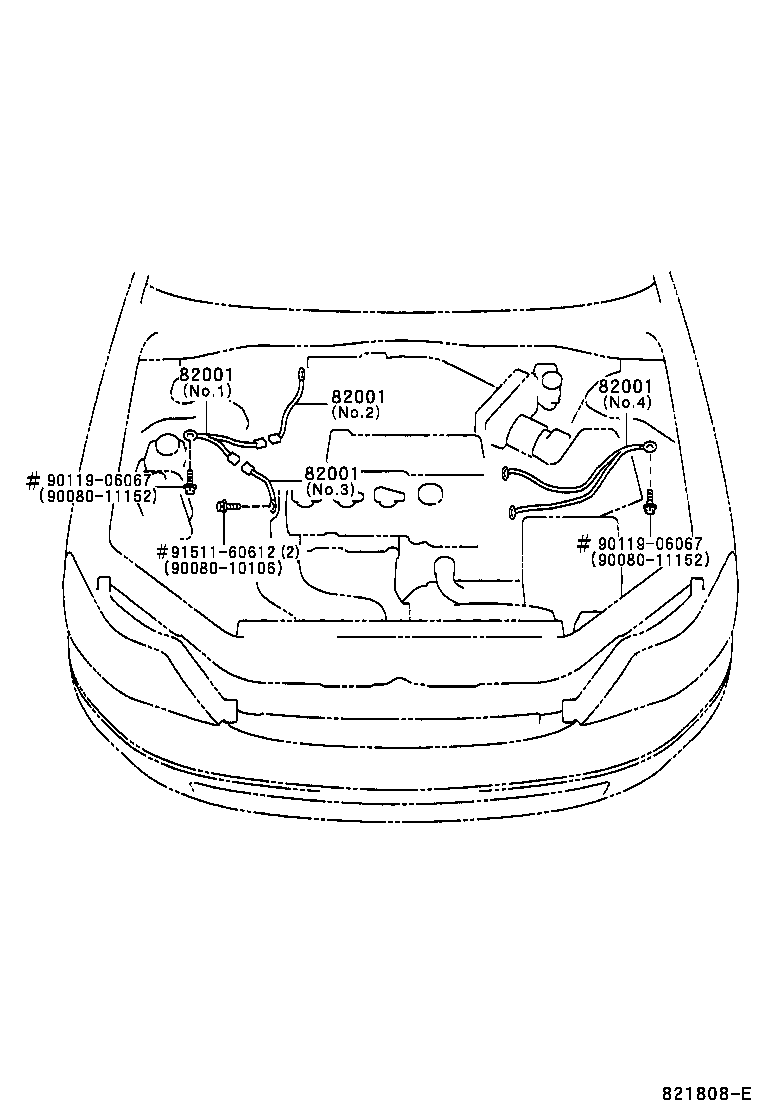

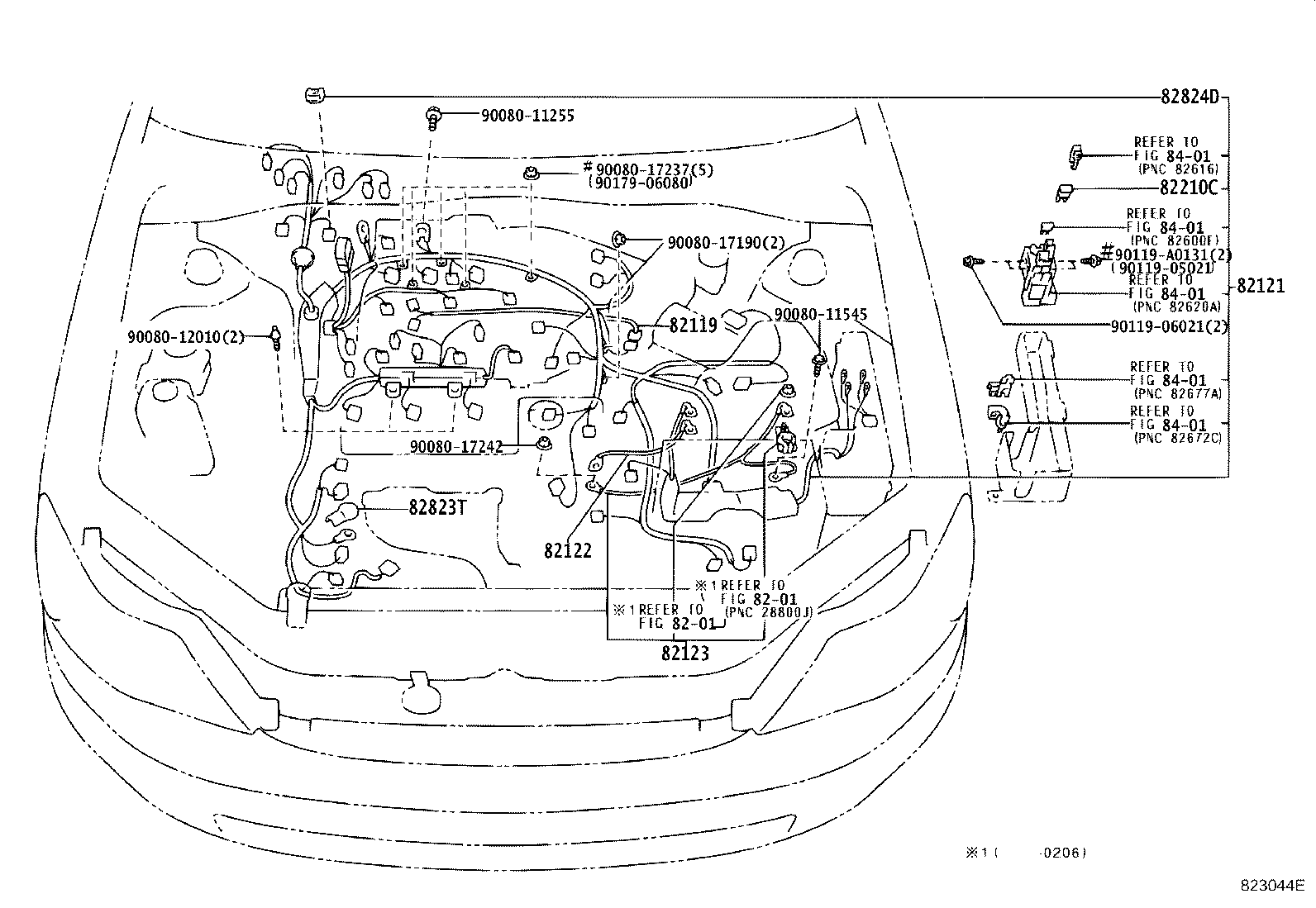

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-07260 |
MCX20..CND |
1 | ||
| 82111-07340 |
MCX20..CND W(VSC) |
1 | ||
| 82111-07350 |
MCX20..CND |
1 | ||
| 82111-07270 |
MCX20..CND W(VSC) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-07010 |
MCX20 |
1 | ||
| 82112-07010 |
MCX20 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-07010 |
MCX20 |
1 | ||
| 82113-07010 |
MCX20 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-07420 |
MCX20 |
1 | ||
| 82817-07420 |
MCX20 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-07430 |
MCX20 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-33150 |
MCX20 |
1 | ||
| 82821-33150 |
MCX20 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
MCX20 |
1 | ||
| 82824-22070 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11353 | ||||
| 90080-11545 | ||||
| 90119-05021 | ||||
| 90119-06021 | ||||
| 90119-A0131 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(9908- )

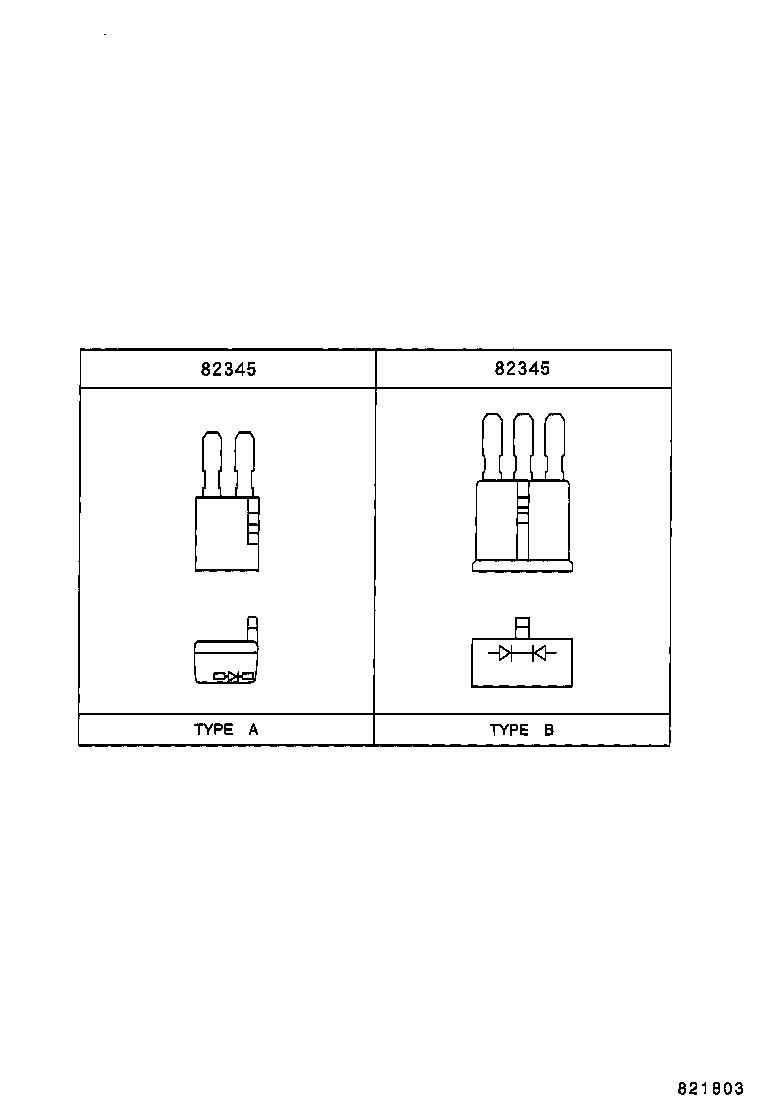

DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||

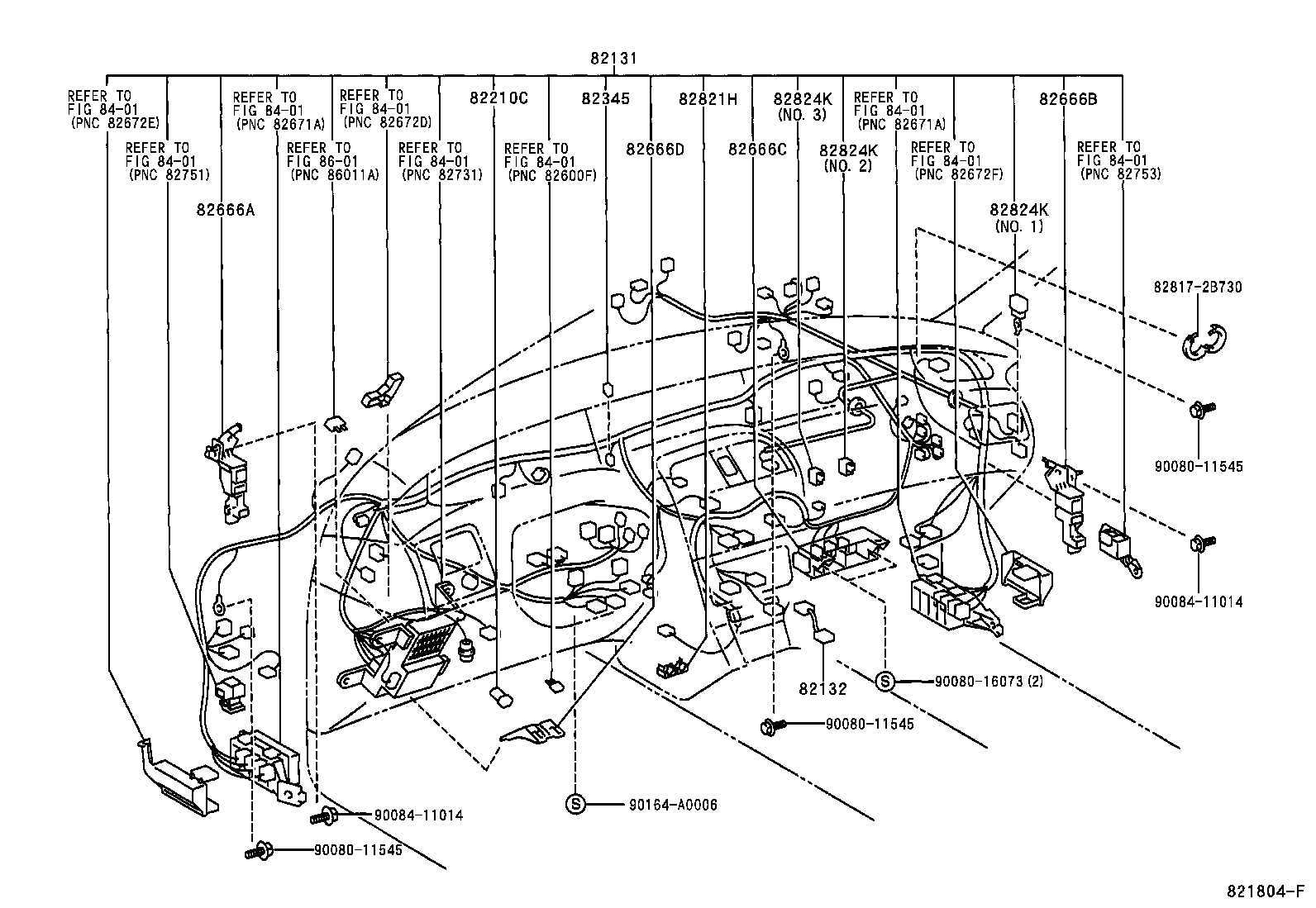

ILLUST NO. 4 OF10(9908- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-07370 |
MCX20..4FC..XL W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82131-07380 |
MCX20..4FC..XL W(DAY TIME RUNNING LIGHT SYSTEM & THEFT-DETERRENT SYSTEM(IMMOBILAZER)) |
1 | ||
| 82131-07400 |
MCX20..4FC..XL W(DAY TIME RUNNING LIGHT SYSTEM & THEFT-DETERRENT SYSTEM(IMMOBILAZER) & VSC) |
1 | ||
| 82131-07371 |
MCX20..XL..CND |
1 | ||
| 82131-07390 |
MCX20..4FC..XL W(DAY TIME RUNNING LIGHT SYSTEM & VSC) |
1 | ||
| 82131-07391 |
MCX20..XL..CND W(VSC) |
1 | ||
| 82131-07381 |
MCX20..XL..CND W(ANTI-THEFT DEVICE:IMMOBILIZER) |
1 | ||
| 82131-07401 |
MCX20..XL..CND W(VSC) & W(ANTI-THEFT DEVICE:IMMOBILIZER) |
1 | ||
| 82131-07720 |
MCX20..4FC..XL W(IMMOBILIZER & VSC) |
1 | ||
| 82131-07710 |
MCX20..4FC..XL W(VSC) |
1 | ||
| 82131-07700 |
MCX20..4FC..XL W(IMMOBILIZER) |
1 | ||
| 82131-07650 |
MCX20..4FC..XL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-07160 |
MCX20 |
1 | ||
| 82666-07160 |
MCX20 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-07180 |
MCX20 |
1 | ||
| 82666-07180 |
MCX20 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-07220 |
MCX20 |
1 | ||
| 82666-07220 |
MCX20 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-07230 |
MCX20 |
1 | ||
| 82666-07230 |
MCX20 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-33150 |
MCX20 |
1 | ||
| 82821-33150 |
MCX20 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20130 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| Common parts | ||||
| 82817-2B730 | ||||
| 90080-11545 | ||||
| 90080-16073 | ||||
| 90084-11014 | ||||
| 90164-A0006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 5 OF10(9908- )

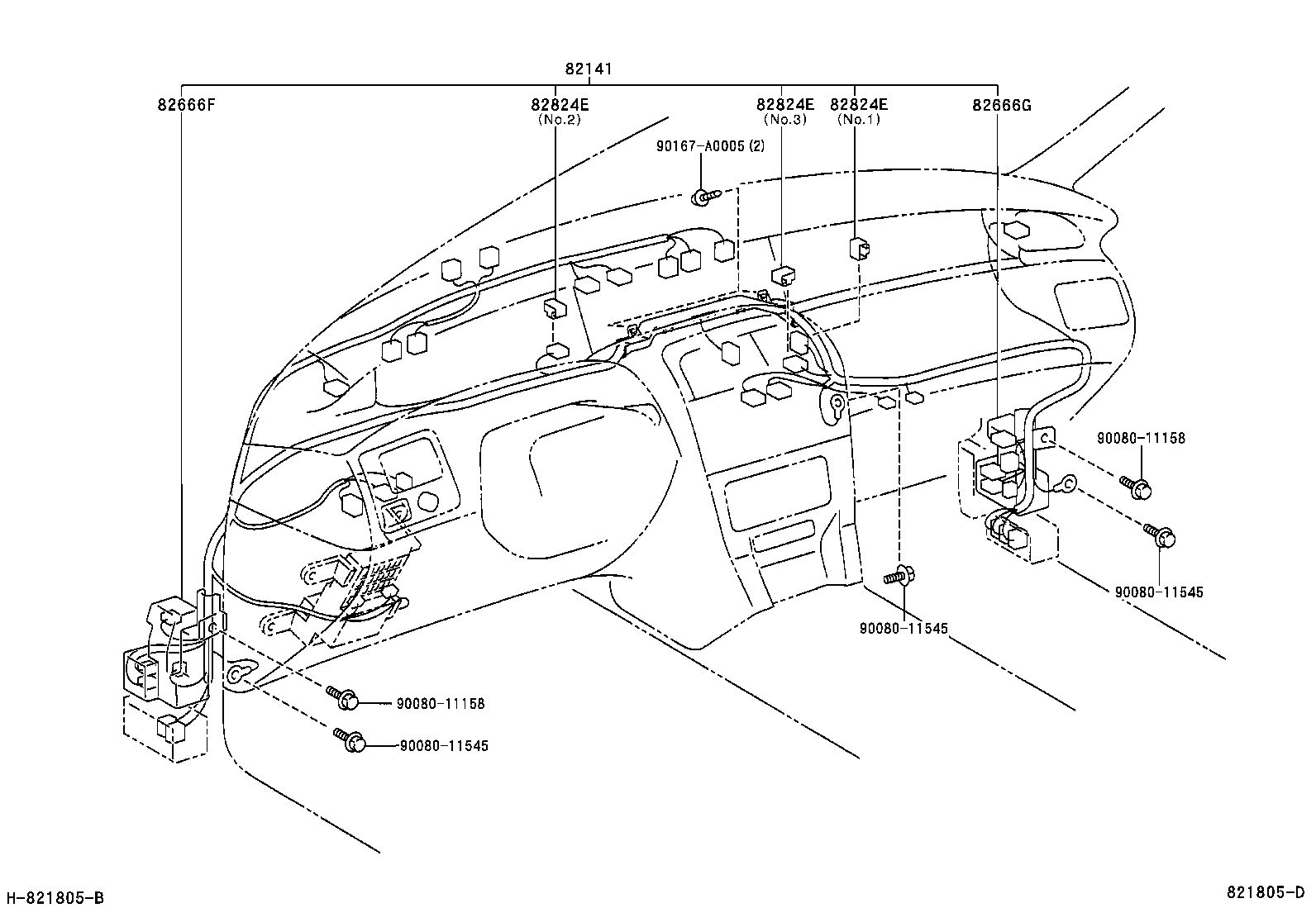

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-07510 |
MCX20..XL W(KEY LESS ENTRY) |
1 | ||
| 82141-07320 |
MCX20..XL AM/FM ETR CST CD 7 SPEAKER |
1 | ||
| 82141-07310 |
MCX20..XL |
1 | ||
| 82141-07520 |
MCX20..XL W(WOOFER SPEAKER) |
1 | ||
| 82141-07500 |
MCX20..XL |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-07200 |
MCX20 |
1 | ||
| 82666-07200 |
MCX20 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-07210 |
MCX20 |
1 | ||
| 82666-07210 |
MCX20 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22070 |
MCX20 NO.2 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-22080 |
MCX20 NO.3 |
1 | ||
| Common parts | ||||
| 90080-11158 | ||||
| 90080-11545 | ||||
| 90167-A0005 | ||||
ILLUST NO. 7 OF10(9908- )

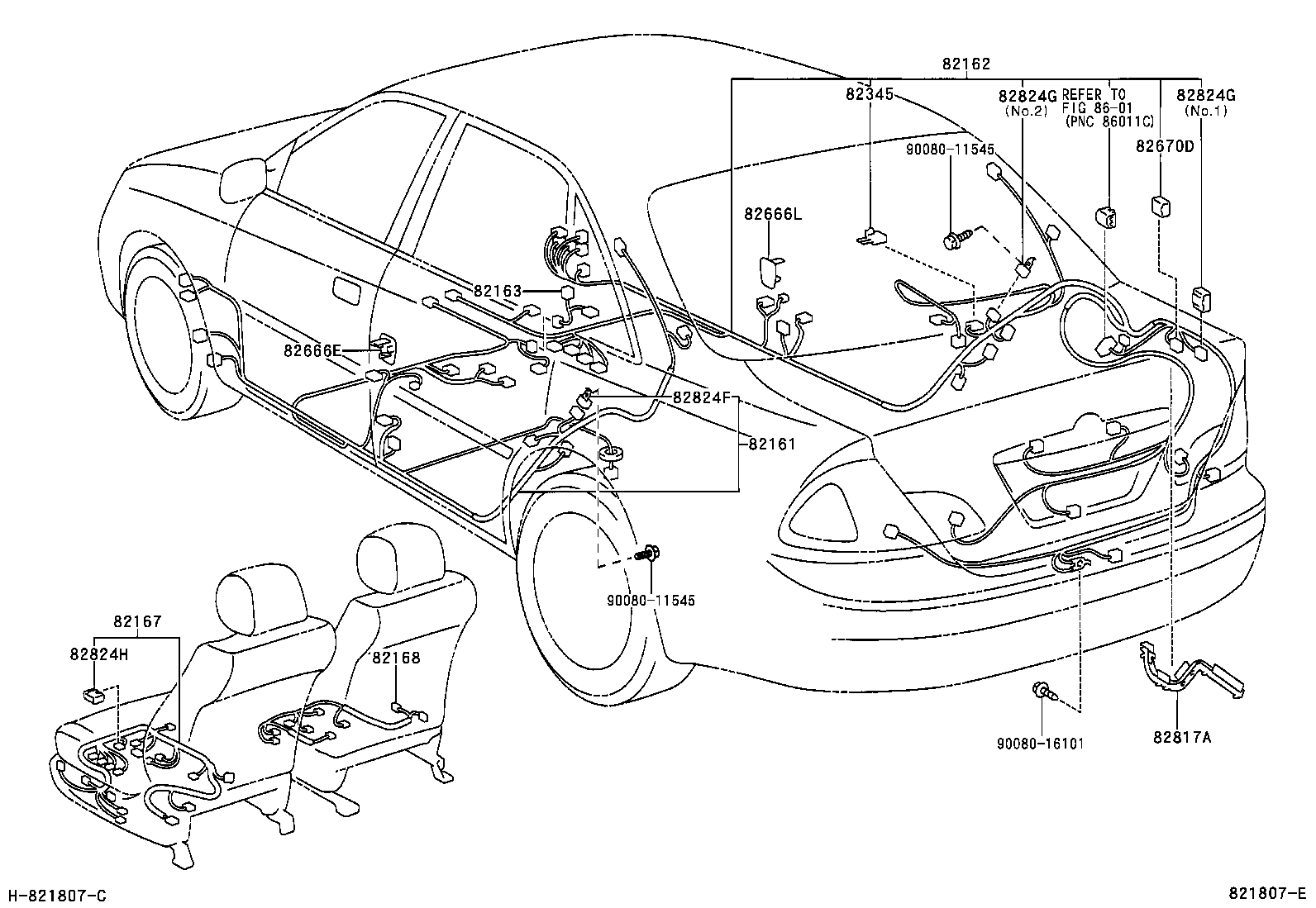

SEAT & FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-AC040 |
MCX20..4FC..XL W(VSC) |
1 | ||
| 82161-AC010 |
MCX20..4FC..XL |
1 | ||
| 82161-AC041 |
MCX20..4FC..XL W(VSC) |
1 | ||
| 82161-07310 |
MCX20..4FC W(MEMORY POWER SEAT) |
1 | ||
| 82161-AC020 |
MCX20..4FC..XL W(POWER SEAT) |
1 | ||
| 82161-07300 |
MCX20..4FC..XL |
1 | ||
| 82161-AC011 |
MCX20..4FC..XL |
1 | ||
| 82161-AC020 |
MCX20..4FC..XL W(POWER SEAT & VSC) |
1 | ||
| 82161-AC021 |
MCX20..4FC..XL W(POWER SEAT & VSC) |
1 | ||
| 82161-07330 |
MCX20..4FC..XL W(VSC) |
1 | ||
| 82161-AC021 |
MCX20..4FC..XL W(POWER SEAT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-AC040 |
MCX20..4FC AM/FM ETR CST CD 7 SPEAKER & W(POWER SEAT) |
1 | ||
| 82162-AC010 |
MCX20..4FC..XL |
1 | ||
| 82162-AC030 |
MCX20..4FC..XL W(POWER SEAT) |
1 | ||
| 82162-07320 |
MCX20..4FC..XL W(MEMORY POWER SEAT) |
1 | ||
| 82162-07330 |
MCX20..4FC W(MEMORY POWER SEAT & WOOFER SPEAKER) |
1 | ||
| 82162-07310 |
MCX20..4FC..XL W(KEY LESS ENTRY) |
1 | ||
| 82162-07300 |
MCX20..4FC..XL |
1 | ||
| 82162-AC041 |
MCX20..4FC AM/FM ETR CST CD 7 SPEAKER & W(POWER SEAT) |
1 | ||
| 82162-AC020 |
MCX20..4FC..XL W(KEY LESS ENTRY (2 TRANSMITTER)) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-AC010 |
MCX20..4FC |
1 | ||
| 82163-AC010 |
MCX20..4FC |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-AC010 |
MCX20..4FC W(POWER SEAT) |
1 | ||
| 82167-07010 |
MCX20..4FC |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-AC010 |
MCX20 |
1 | ||
| 82168-07130 |
MCX20 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-20040 |
MCX20 TYPE B:REFER TO ILLUSTRATION & W(VSC) |
1 | ||
| 82345-12050 |
MCX20 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-AA030 |
MCX20 |
1 | ||
| 82666-AA030 |
MCX20 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-AA040 |
MCX20 |
1 | ||
| 82666-AA040 |
MCX20 |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-2B010 |
MCX20 |
1 | ||
| 82670-2B010 |
MCX20 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-AC020 |
MCX20 |
1 | ||
| 82817-AC020 |
MCX20 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
MCX20 |
1 | ||
| 82824-20130 |
MCX20 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-20130 |
MCX20 NO.2 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-20130 |
MCX20 NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-20130 |
MCX20 NO.2 |
1 | ||
| 82824-20110 |
MCX20 NO.1 |
1 | ||
| 82824-20130 |
MCX20 NO.2 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-16101 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 8 OF10(9908- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| 90084-98055 |
MCX20 NO.4 |
1 | ||
| 90084-98004 |
MCX20 NO.2 |
1 | ||
| 90084-98006 |
MCX20 NO.3 |
1 | ||
| 90084-98003 |
MCX20 NO.1 |
1 | ||
| Common parts | ||||
| 90080-10106 | ||||
| 90080-11152 | ||||
| 90119-06067 | ||||
| 91511-60612 | ||||
ILLUST NO. 9 OF10(9908- )

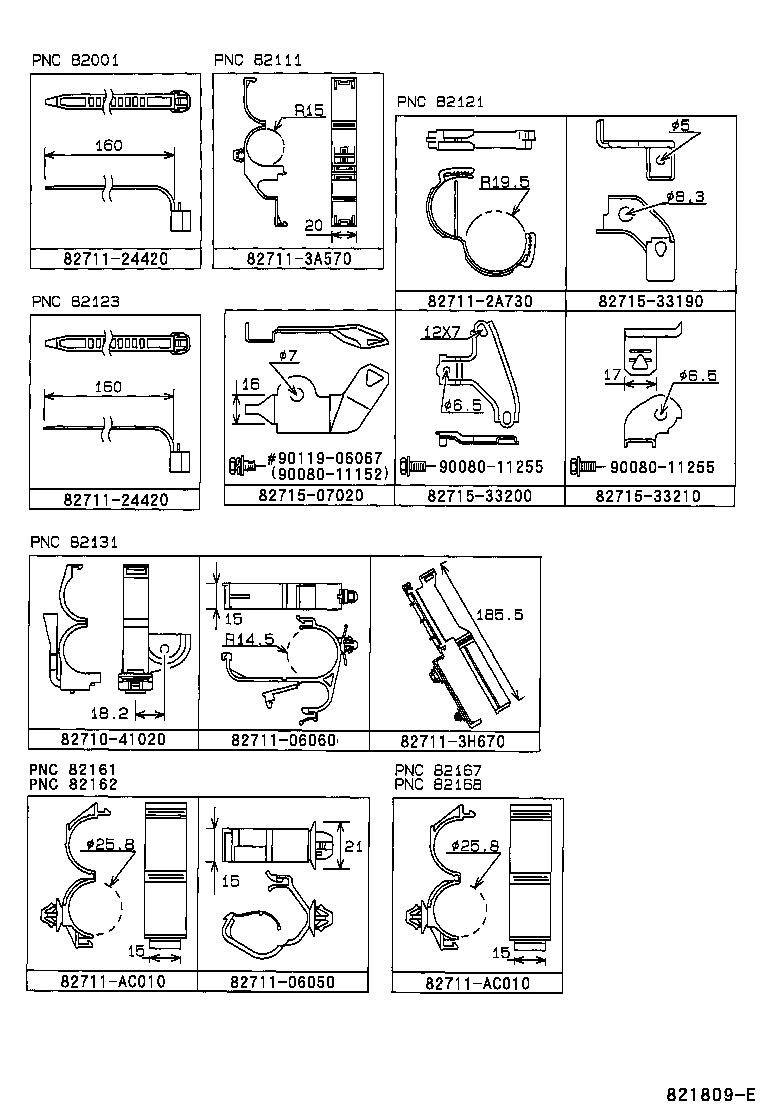

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-41020 | ||||
| 82711-06050 | ||||
| 82711-06060 | ||||
| 82711-24420 | ||||
| 82711-2A730 | ||||
| 82711-3A570 | ||||
| 82711-3H670 | ||||
| 82711-AC010 | ||||
| 82715-07020 | ||||
| 82715-33190 | ||||
| 82715-33200 | ||||
| 82715-33210 | ||||
| 90080-11152 | ||||
| 90080-11255 | ||||
| 90119-06067 | ||||
ILLUST NO. 2 OF10(9908- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82119 - WIRE, SENSOR | ||||
| 82219-33030 |
MCX20 (J) |
1 | ||
| 82219-07010 |
MCX20 |
1 | ||
| 82219-07010 |
MCX20 (L) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-07060 |
MCX20 |
1 | ||
| 82121-07140 |
MCX20 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-07020 |
MCX20 |
1 | ||
| 82122-07020 |
MCX20 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-07010 |
MCX20 |
1 | ||
| 82123-07020 |
MCX20 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
MCX20 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08254 |
MCX20 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
MCX20 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
MCX20 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
MCX20 40A,TERM.:FEMALE,GRN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-08010 |
MCX20 |
1 | ||
| 82823-08010 |
MCX20 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
MCX20 |
1 | ||
| 82824-50110 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11255 | ||||
| 90080-11545 | ||||
| 90080-12010 | ||||
| 90080-17190 | ||||
| 90080-17237 | ||||
| 90080-17242 | ||||
| 90119-05021 | ||||
| 90119-06021 | ||||
| 90119-A0131 | ||||
| 90179-06080 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO.10 OF10(9908- )

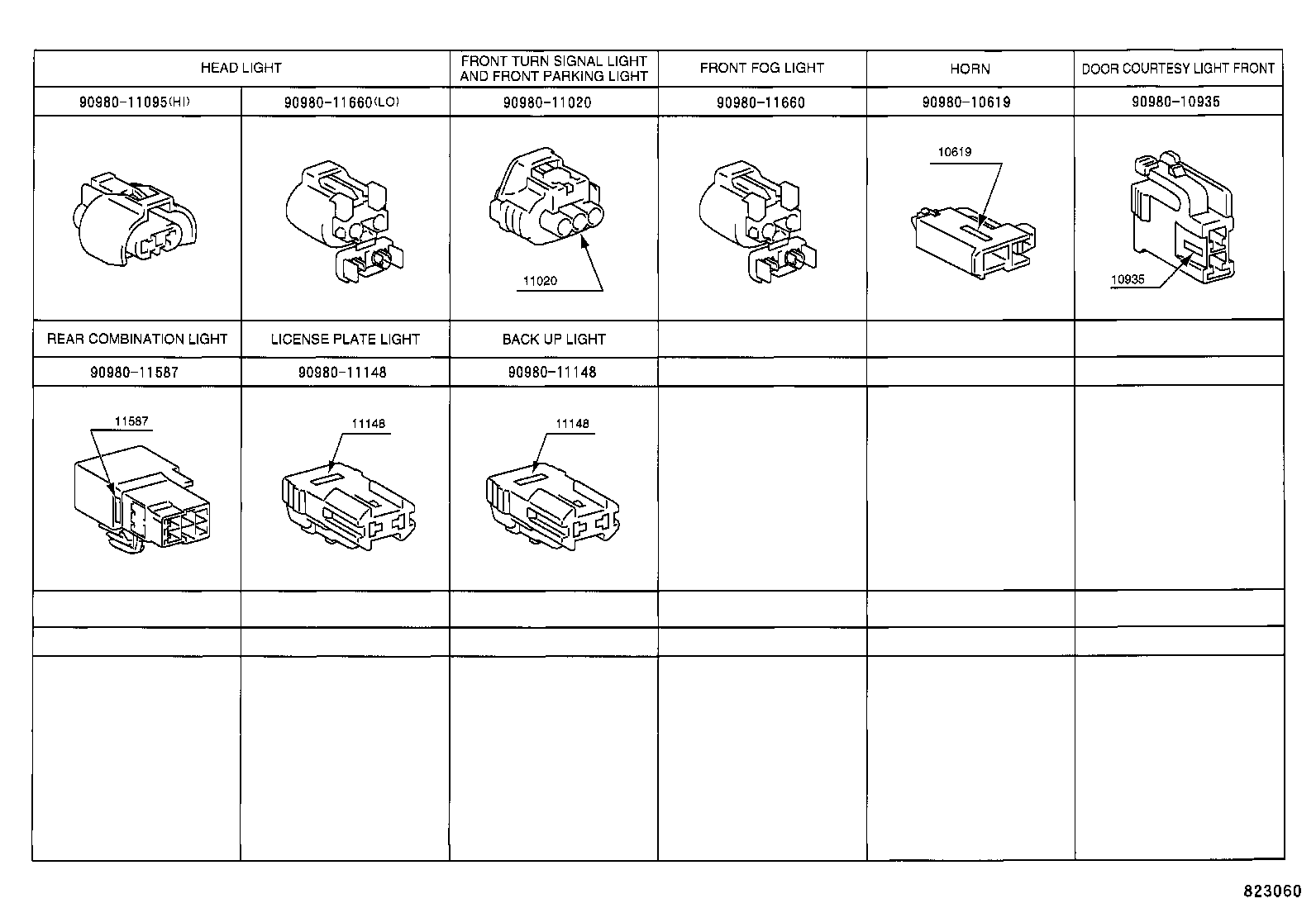

CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10935 | ||||
| 90980-11020 | ||||
| 90980-11095 | ||||
| 90980-11148 | ||||
| 90980-11587 | ||||
| 90980-11660 | ||||
ILLUST NO. 6 OF10(9908- )

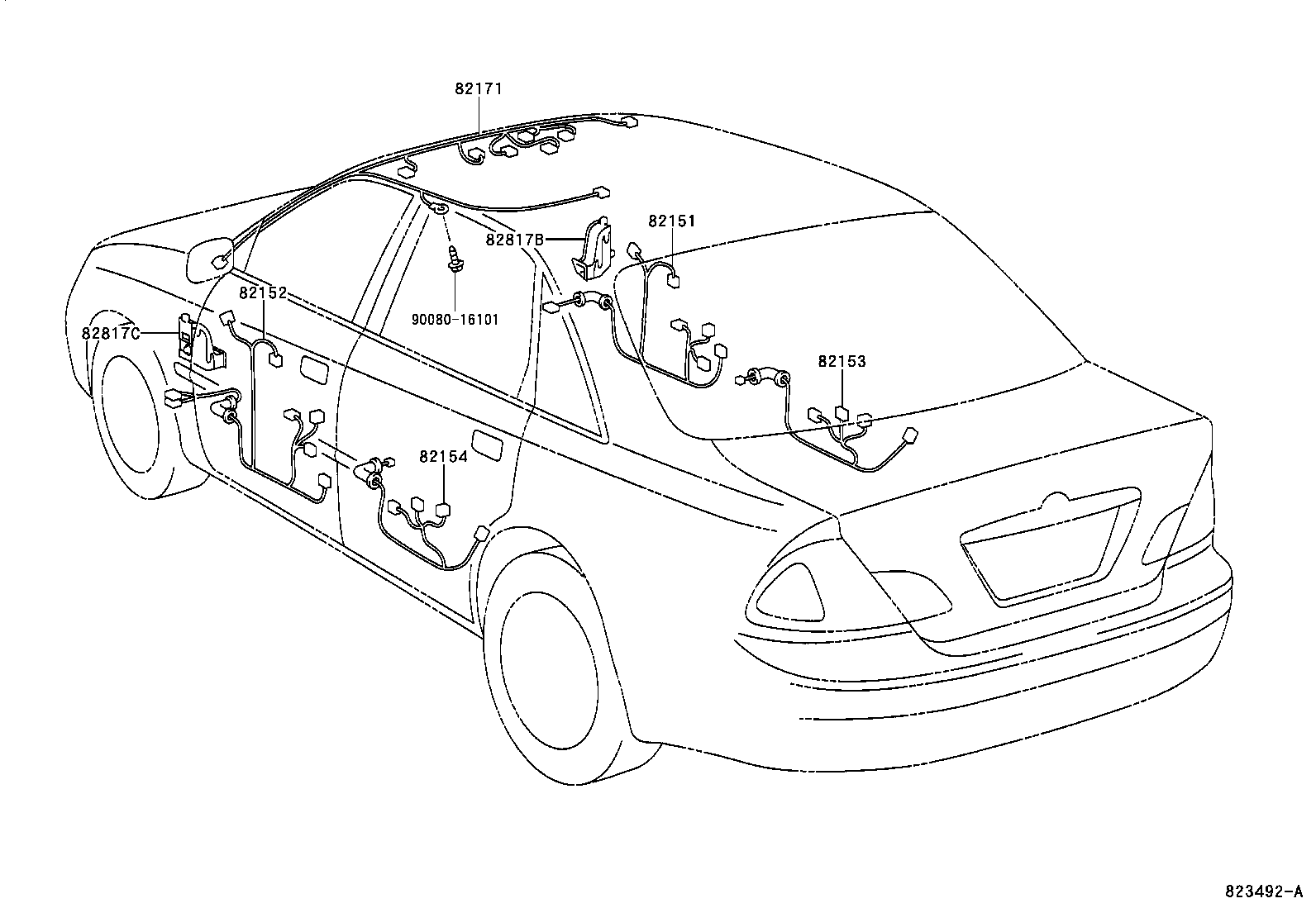

DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-AC010 |
MCX20..XL |
1 | ||
| 82151-AC020 |
MCX20 W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82151-07200 |
MCX20..XL |
1 | ||
| 82151-07210 |
MCX20 W(HEATER MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-AC010 |
MCX20..XL |
1 | ||
| 82152-AC020 |
MCX20 W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82152-07210 |
MCX20 W(HEATER MIRROR) |
1 | ||
| 82152-07200 |
MCX20..XL |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-AC010 |
MCX20 |
1 | ||
| 82153-AC010 |
MCX20 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-AC010 |
MCX20 |
1 | ||
| 82154-AC010 |
MCX20 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-AC010 |
MCX20..XL |
1 | ||
| 82171-AC020 |
MCX20..XL W(MOON ROOF) |
1 | ||
| 82171-07120 |
MCX20..XL W(MOON ROOF) |
1 | ||
| 82171-07100 |
MCX20..XL |
1 | ||
| 82171-07130 |
MCX20..XL W(ELECTRIC REMOTE CONTROL INNER MIRROR) |
1 | ||
| 82171-07150 |
MCX20..XL W(ELECTRIC REMOTE CONTROL INNER MIRROR & MOON ROOF) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-AC070 |
MCX20 |
1 | ||
| 82817-AC070 |
MCX20 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-AC080 |
MCX20 |
1 | ||
| 82817-AC080 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-16101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
