MCX20L-AEPNKK (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

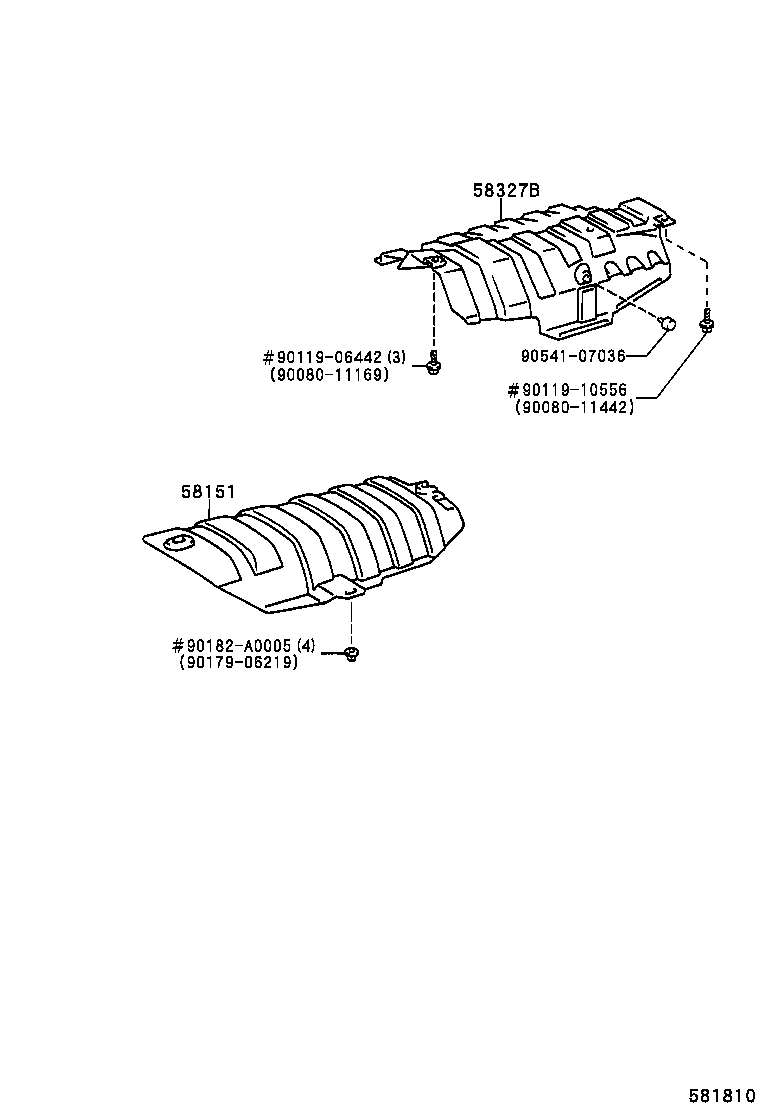

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-AC011 |
MCX20 |
1 | ||
| 58152-AC011 |
MCX20 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-33010 |
MCX20 (J) |
1 | ||
| 58327-06010 |
MCX20 (L) |
1 | ||
| 58327-33010 |
MCX20 (J) |
1 | ||
| 58327-06010 |
MCX20 (L) |
1 | ||
| Common parts | ||||
| 90080-11169 | ||||
| 90080-11442 | ||||
| 90119-06442 | ||||
| 90119-10556 | ||||
| 90179-06219 | ||||
| 90182-A0005 | ||||
| 90541-07036 | ||||
