MCX20L-AEPNKA (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

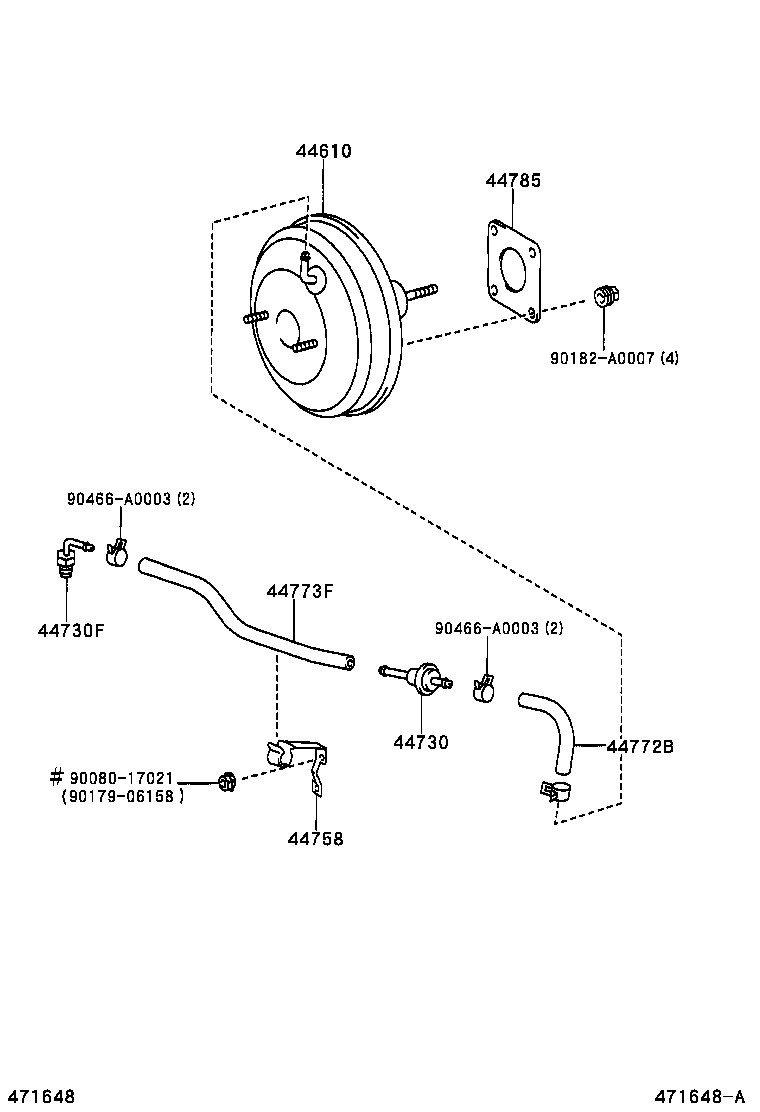

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-07110 |
MCX20 |
1 | ||
| 44610-07112 |
MCX20 |
1 | ||
| 44610-07111 |
MCX20 |
1 | ||
| 44610-07112 |
MCX20 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
MCX20 |
1 | ||
| 44730-10010 |
MCX20 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51046 |
MCX20 |
1 | ||
| 90404-51046 |
MCX20 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-07020 |
MCX20 |
1 | ||
| 44758-07020 |
MCX20 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-06010 |
MCX20 |
1 | ||
| 44772-06010 |
MCX20 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-07030 |
MCX20 |
1 | ||
| 44773-07030 |
MCX20 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-02010 |
MCX20 |
1 | ||
| 44785-02010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-17021 | ||||
| 90179-06158 | ||||
| 90182-A0007 | ||||
| 90466-A0003 | ||||
