MCX20L-AEPGKK (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

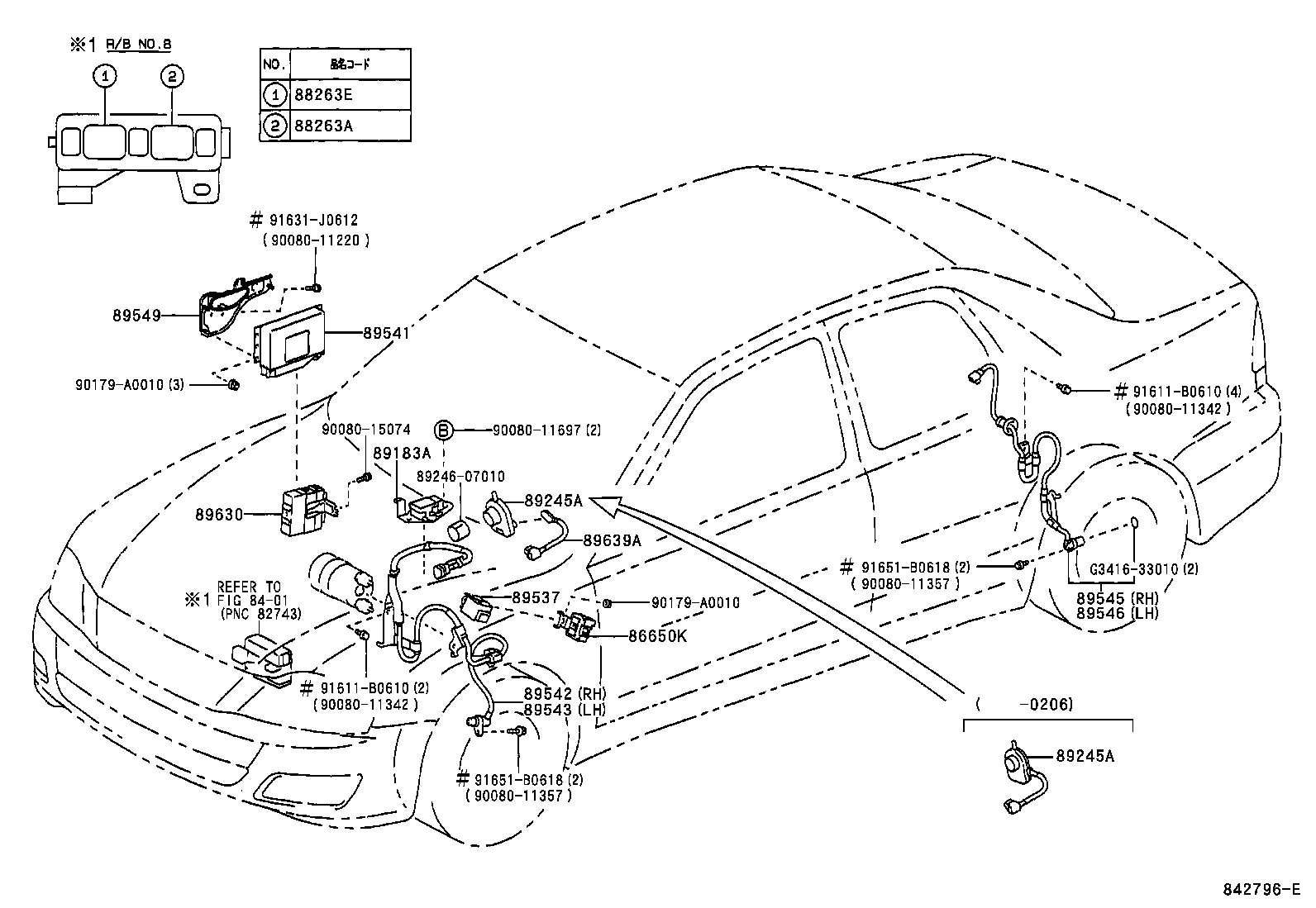

(9908- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-41010 |
MCX20 |
1 | ||
| 86650-41010 |
MCX20 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
MCX20 |
1 | ||
| 88263-24020 |
MCX20 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
MCX20 |
1 | ||
| 88263-24030 |
MCX20 |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-07010 |
MCX20 |
1 | ||
| 89183-07020 |
MCX20 |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-07011 |
MCX20 |
1 | ||
| 89245-05010 |
MCX20 |
1 | ||
| 89245-07010 |
MCX20 |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-07011 |
MCX20 |
1 | ||
| 89245-05010 |
MCX20 |
1 | ||
| 89245-07010 |
MCX20 |
1 | ||
| 89537 - RELAY, ACTIVE LAMP | ||||
| 89537-41020 |
MCX20 |
1 | ||
| 89537-41020 |
MCX20 |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89541-07020 |
MCX20 |
1 | ||
| 89541-07030 |
MCX20 W(VSC) |
1 | ||
| 89541-07020 |
MCX20 |
1 | ||
| 89541-07040 |
MCX20 W(VSC) |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-07010 |
MCX20 |
1 | ||
| 89542-07010 |
MCX20 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-07010 |
MCX20 |
1 | ||
| 89543-07010 |
MCX20 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-33020 |
MCX20 |
1 | ||
| 89545-33020 |
MCX20 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-33020 |
MCX20 |
1 | ||
| 89546-33020 |
MCX20 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-41040 |
MCX20 |
1 | ||
| 89549-41040 |
MCX20 |
1 | ||
| 89630 - COMPUTER ASSY, TRANSLATE | ||||
| 89630-41020 |
MCX20 |
1 | ||
| 89630-07010 |
MCX20 |
1 | ||
| 89639A - WIRE, BRAKE CONTROL | ||||
| 89639-07010 |
MCX20 |
1 | ||
| Common parts | ||||
| 89246-07010 | ||||
| 90080-11220 | ||||
| 90080-11342 | ||||
| 90080-11357 | ||||
| 90080-11697 | ||||
| 90080-15074 | ||||
| 90179-A0010 | ||||
| 91611-B0610 | ||||
| 91631-J0612 | ||||
| 91651-B0618 | ||||
| G3416-33010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

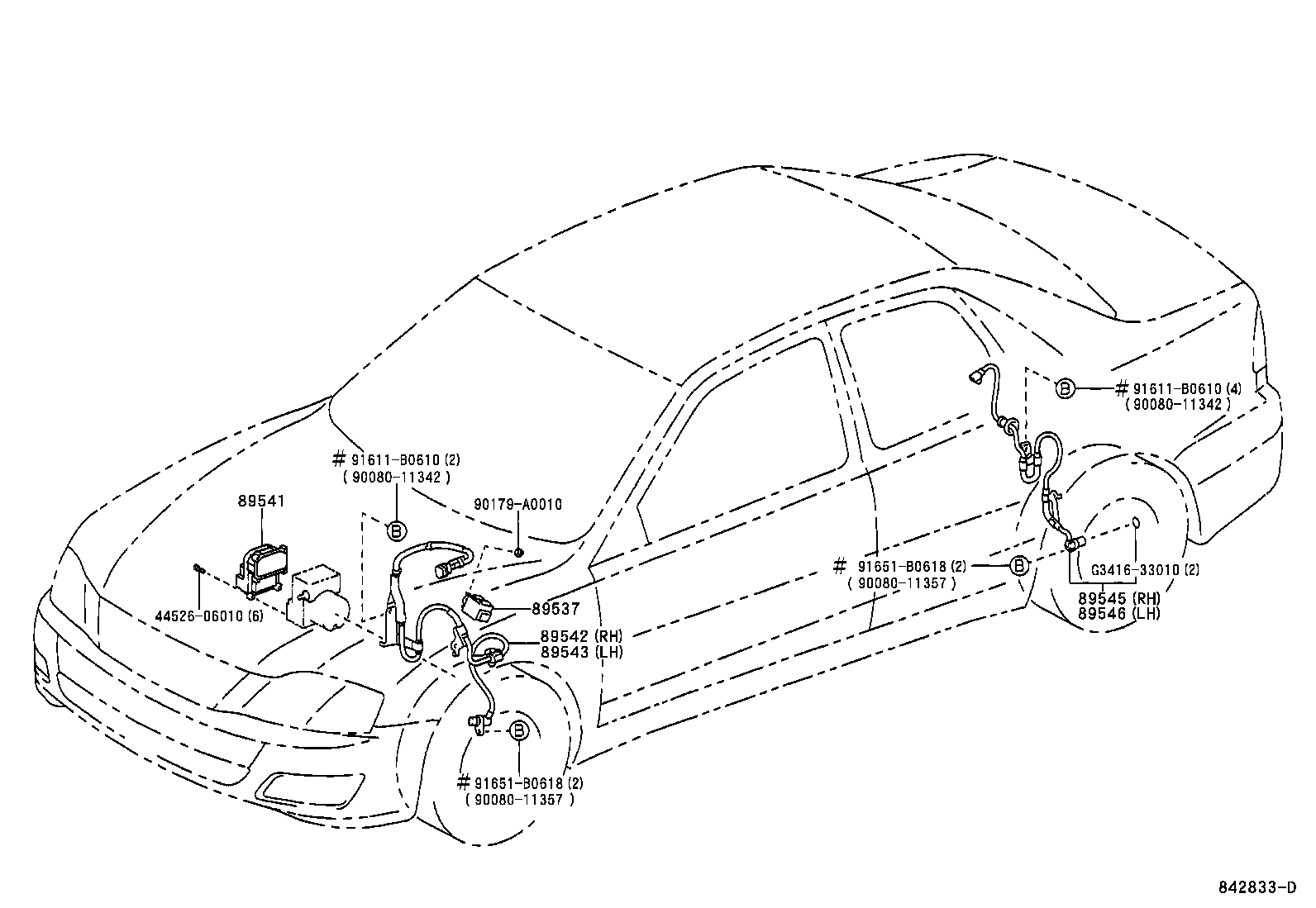

(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89537 - RELAY, ACTIVE LAMP | ||||
| 89537-41020 |
MCX20 |
1 | ||
| 89537-41020 |
MCX20 |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89541-07020 |
MCX20 |
1 | ||
| 89541-07030 |
MCX20 W(VSC) |
1 | ||
| 89541-07020 |
MCX20 |
1 | ||
| 89541-07040 |
MCX20 W(VSC) |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-07010 |
MCX20 |
1 | ||
| 89542-07010 |
MCX20 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-07010 |
MCX20 |
1 | ||
| 89543-07010 |
MCX20 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-33020 |
MCX20 |
1 | ||
| 89545-33020 |
MCX20 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-33020 |
MCX20 |
1 | ||
| 89546-33020 |
MCX20 |
1 | ||
| Common parts | ||||
| 44526-06010 | ||||
| 90080-11342 | ||||
| 90080-11357 | ||||
| 90179-A0010 | ||||
| 91611-B0610 | ||||
| 91651-B0618 | ||||
| G3416-33010 | ||||
