MCX20L-AEPGKK (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

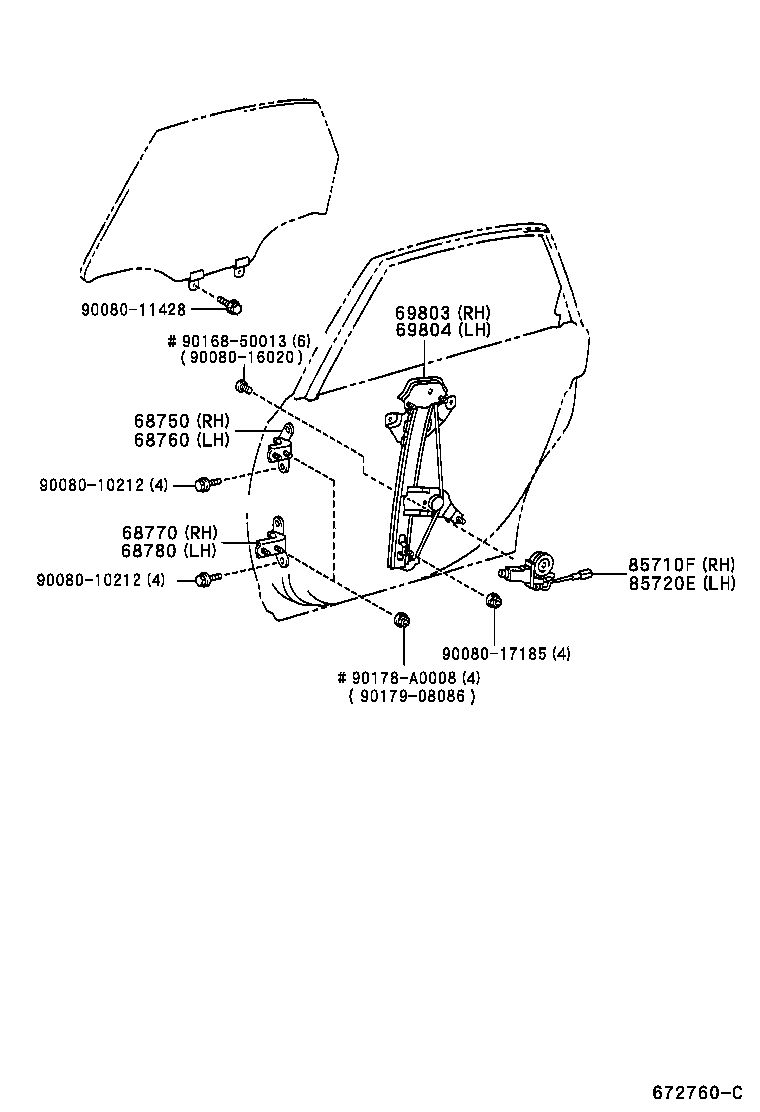

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-AC010 |
MCX20 |
1 | ||
| 68750-AC010 |
MCX20 |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-AC010 |
MCX20 |
1 | ||
| 68760-AC010 |
MCX20 |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-AC010 |
MCX20 |
1 | ||
| 68770-AC010 |
MCX20 |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-AC010 |
MCX20 |
1 | ||
| 68780-AC010 |
MCX20 |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-AC010 |
MCX20 |
1 | ||
| 69803-AC010 |
MCX20 |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-AC010 |
MCX20 |
1 | ||
| 69804-AC010 |
MCX20 |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-AC030 |
MCX20 |
1 | ||
| 85710-AC030 |
MCX20 |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-AC030 |
MCX20 |
1 | ||
| 85720-AC030 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-10212 | ||||
| 90080-11428 | ||||
| 90080-16020 | ||||
| 90080-17185 | ||||
| 90168-50013 | ||||
| 90178-A0008 | ||||
| 90179-08086 | ||||
