MCX20L-AEPGKK (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

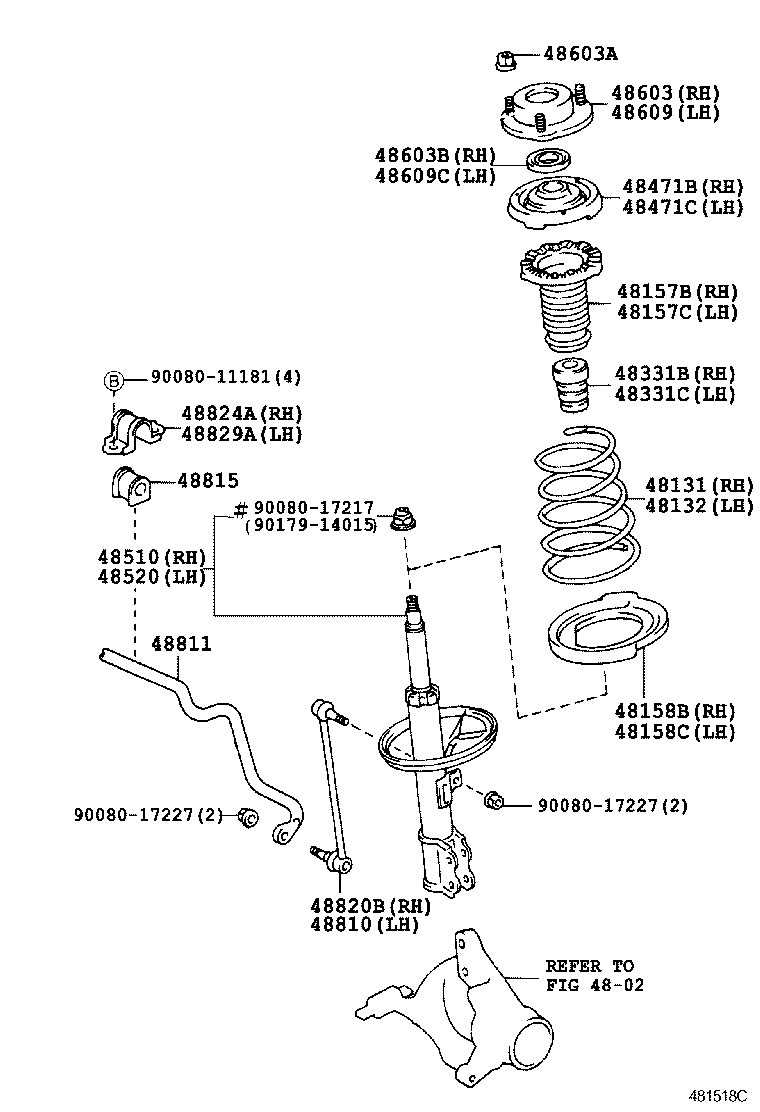

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-AC020 |
MCX20 L=374.5 |
1 | ||
| 48131-AC040 |
MCX20 |
1 | ||
| 48131-AC030 |
MCX20 |
1 | ||
| 48131-AC030 |
MCX20 |
1 | ||
| 48131-AC041 |
MCX20 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-AC020 |
MCX20 L=374.5 |
1 | ||
| 48131-AC041 |
MCX20 |
1 | ||
| 48131-AC030 |
MCX20 |
1 | ||
| 48131-AC040 |
MCX20 |
1 | ||
| 48131-AC030 |
MCX20 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-07011 |
MCX20 |
1 | ||
| 48157-07010 |
MCX20 |
1 | ||
| 48157-07010 |
MCX20 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-07010 |
MCX20 |
1 | ||
| 48157-07011 |
MCX20 |
1 | ||
| 48157-07010 |
MCX20 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33031 |
MCX20 (J) |
1 | ||
| 48158-07010 |
MCX20 |
1 | ||
| 48158-AA030 |
MCX20 (L) |
1 | ||
| 48158-07010 |
MCX20 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-07010 |
MCX20 |
1 | ||
| 48158-07010 |
MCX20 |
1 | ||
| 48158-33031 |
MCX20 (J) |
1 | ||
| 48158-AA030 |
MCX20 (L) |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-06011 |
MCX20 |
1 | ||
| 48331-06011 |
MCX20 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-06011 |
MCX20 |
1 | ||
| 48331-06011 |
MCX20 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-06030 |
MCX20 |
1 | ||
| 48471-AA010 |
MCX20 |
1 | ||
| 48471-41010 |
MCX20 |
1 | ||
| 48471-06030 |
MCX20 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-06030 |
MCX20 |
1 | ||
| 48471-06030 |
MCX20 |
1 | ||
| 48471-AA010 |
MCX20 |
1 | ||
| 48471-41010 |
MCX20 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-A9410 |
MCX20 MARK 48510-AC030 |
1 | ||
| 48510-A9100 |
MCX20 MARK 48510-AC020 |
1 | ||
| 48510-A9100 |
MCX20 MARK 48510-AC020 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-A9080 |
MCX20 MARK 48520-AC020 |
1 | ||
| 48520-A9080 |
MCX20 MARK 48520-AC020 |
1 | ||
| 48520-A9270 |
MCX20 MARK 48520-AC030 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48603-06011 |
MCX20 |
1 | ||
| 48603-06011 |
MCX20 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10008 |
MCX20 |
6 | ||
| 90178-10018 |
MCX20 |
6 | ||
| 90080-17225 |
MCX20 |
6 | ||
| 90178-10018 |
MCX20 |
6 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63002 |
MCX20 (J) |
1 | ||
| 90080-36070 |
MCX20 (L) |
1 | ||
| 90080-36070 |
MCX20 (L) |
1 | ||
| 90903-63002 |
MCX20 (J) |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-06061 |
MCX20 |
1 | ||
| 48609-06061 |
MCX20 |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90080-36070 |
MCX20 (L) |
1 | ||
| 90903-63002 |
MCX20 (J) |
1 | ||
| 90903-63002 |
MCX20 (J) |
1 | ||
| 90080-36070 |
MCX20 (L) |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-06030 |
MCX20 |
1 | ||
| 48810-06030 |
MCX20 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-AC020 |
MCX20 |
1 | ||
| 48811-AC020 |
MCX20 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-06050 |
MCX20 |
2 | ||
| 48815-06050 |
MCX20 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-06030 |
MCX20 |
1 | ||
| 48820-06030 |
MCX20 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-07010 |
MCX20 |
1 | ||
| 48824-07010 |
MCX20 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-07010 |
MCX20 |
1 | ||
| 48824-07010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11181 | ||||
| 90080-17217 | ||||
| 90080-17227 | ||||
| 90179-14015 | ||||
| Linked diagrams | ||||
| 4802 | ||||
