MCX20L-AEPGKA (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

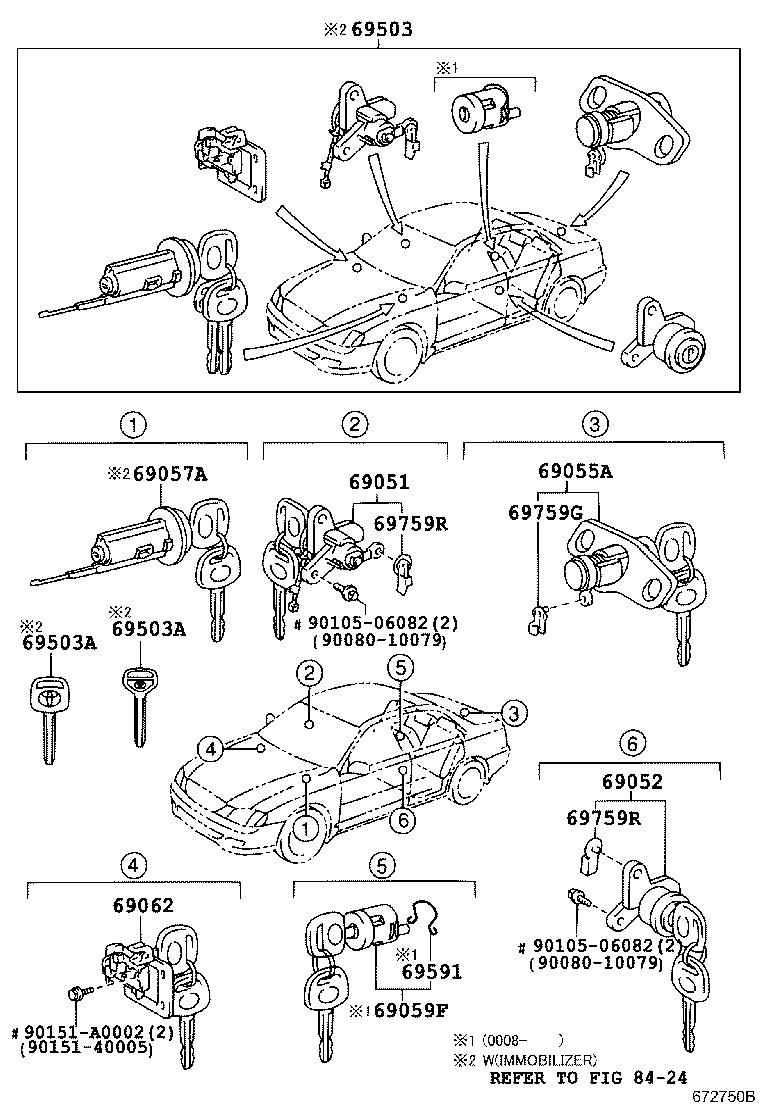

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-41050 |
MCX20 |
1 | ||
| 69051-41050 |
MCX20 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-41050 |
MCX20 |
1 | ||
| 69052-41050 |
MCX20 |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-41110 |
MCX20..XL |
1 | ||
| 69055-41120 |
MCX20..XLS |
1 | ||
| 69055-41130 |
MCX20..XL W(KEY LESS ENTRY) |
1 | ||
| 69055-41110 |
MCX20..XL |
1 | ||
| 69055-41120 |
MCX20..XLS |
1 | ||
| 69055-41130 |
MCX20..XL W(KEY LESS ENTRY) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-41040 |
MCX20..XL |
1 | ||
| 69057-41040 |
MCX20..XL |
1 | ||
| 69059F - CYLINDER & KEY SET, REAR SEAT ARMREST LOCK | ||||
| 69059-41010 |
MCX20 |
1 | ||
| 69059-41010 |
MCX20 |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-22171 |
MCX20 |
1 | ||
| 69056-22171 |
MCX20 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-41140 |
MCX20..XL |
1 | ||
| 69005-41141 |
MCX20..XL |
1 | ||
| 69005-41141 |
MCX20..XL |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
MCX20..XL SUB KEY |
1 | ||
| 90999-00188 |
MCX20..XL SUB KEY |
1 | ||
| 90999-00185 |
MCX20..XL MASTER KEY,W(*68) |
2 | ||
| 90999-00185 |
MCX20..XL MASTER KEY,W(*68) |
2 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00188 |
MCX20..XL SUB KEY |
1 | ||
| 90999-00188 |
MCX20..XL SUB KEY |
1 | ||
| 90999-00185 |
MCX20..XL MASTER KEY,W(*68) |
2 | ||
| 90999-00185 |
MCX20..XL MASTER KEY,W(*68) |
2 | ||
| 69591 - RING, REAR SEAT ARMREST DOOR KEY CYLINDER | ||||
| 69591-41010 |
MCX20 |
1 | ||
| 69591-41010 |
MCX20 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24080 |
MCX20 |
1 | ||
| 69759-24080 |
MCX20 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
MCX20 WHITE |
1 | ||
| 69759-32100 |
MCX20 YELLOW |
1 | ||
| 69759-32090 |
MCX20..XLS WHITE |
1 | ||
| 69759-32100 |
MCX20 YELLOW |
1 | ||
| 69759-32090 |
MCX20 WHITE |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-32090 |
MCX20 WHITE |
1 | ||
| 69759-32100 |
MCX20 YELLOW |
1 | ||
| 69759-32090 |
MCX20..XLS WHITE |
1 | ||
| 69759-32100 |
MCX20 YELLOW |
1 | ||
| 69759-32090 |
MCX20 WHITE |
1 | ||
| Common parts | ||||
| 90080-10079 | ||||
| 90105-06082 | ||||
| 90151-40005 | ||||
| 90151-A0002 | ||||
| Linked diagrams | ||||
| 8424 | ||||
