MCX20L-AEPGKA (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

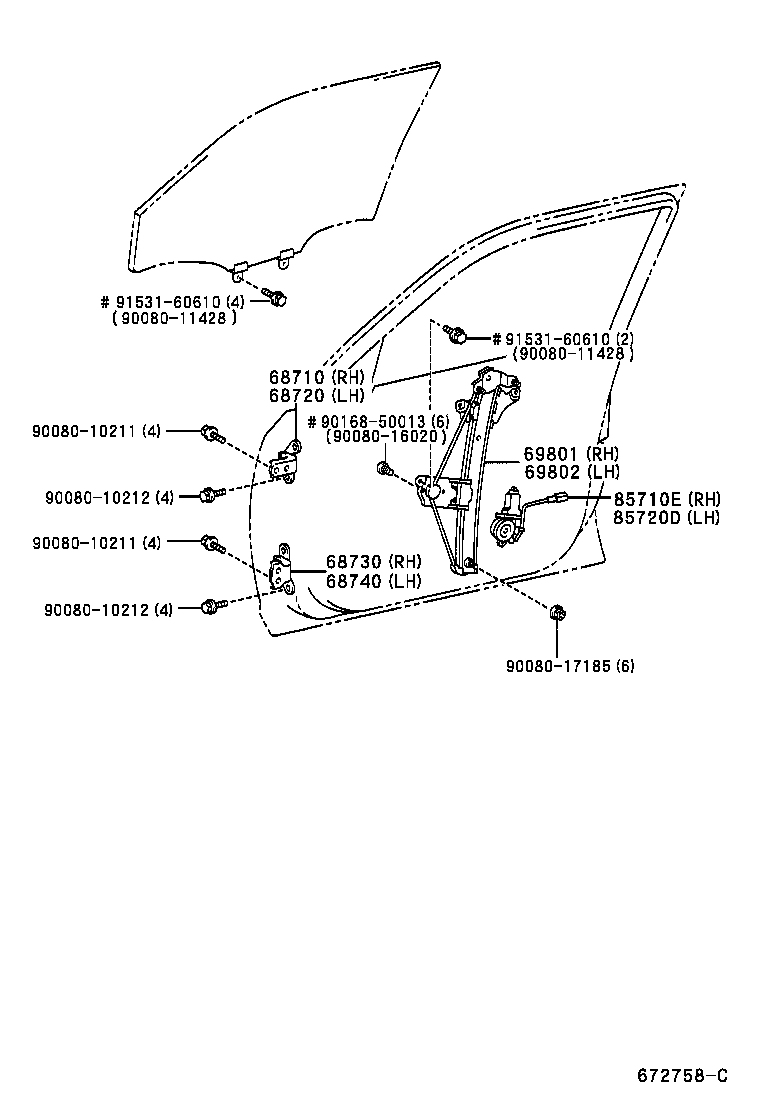

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-AC010 |
MCX20 |
1 | ||
| 68710-AC010 |
MCX20 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-AC010 |
MCX20 |
1 | ||
| 68720-AC010 |
MCX20 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-AC010 |
MCX20 |
1 | ||
| 68730-AC010 |
MCX20 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-AC010 |
MCX20 |
1 | ||
| 68740-AC010 |
MCX20 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-AC010 |
MCX20 |
1 | ||
| 69801-AC010 |
MCX20 |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-AC010 |
MCX20 |
1 | ||
| 69802-AC010 |
MCX20 |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-AC010 |
MCX20 |
1 | ||
| 85710-AC010 |
MCX20 |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-AC020 |
MCX20 |
1 | ||
| 85720-AC020 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-10211 | ||||
| 90080-10212 | ||||
| 90080-11428 | ||||
| 90080-16020 | ||||
| 90080-17185 | ||||
| 90168-50013 | ||||
| 91531-60610 | ||||
