MCX20L-AEPGKA (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

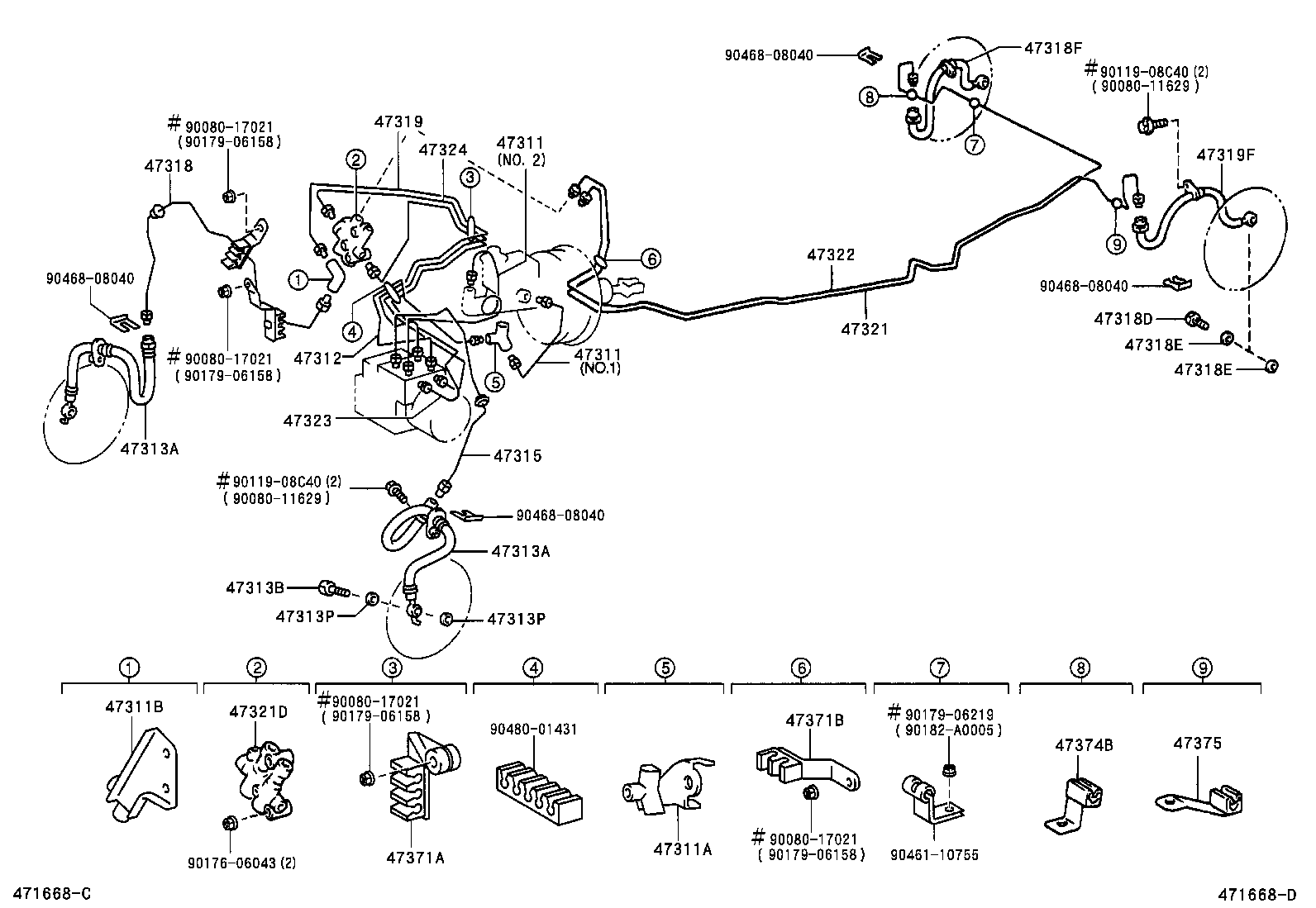

ILLUST NO. 1 OF 2(9908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13050 |
MCX20 W(VSC) |
1 | ||
| 90904-12071 |
MCX20 |
1 | ||
| 90904-12071 |
MCX20 |
1 | ||
| 90904-13050 |
MCX20 W(VSC) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCX20 |
1 | ||
| 90904-12038 |
MCX20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-07031 |
MCX20 |
1 | ||
| 47312-07021 |
MCX20 W(VSC) |
1 | ||
| 47312-07031 |
MCX20 |
1 | ||
| 47312-07021 |
MCX20 W(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCX20 |
2 | ||
| 90401-10015 |
MCX20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-07051 |
MCX20 |
1 | ||
| 47315-07041 |
MCX20 W(VSC) |
1 | ||
| 47315-07041 |
MCX20 W(VSC) |
1 | ||
| 47315-07051 |
MCX20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-07021 |
MCX20 |
1 | ||
| 47318-07021 |
MCX20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCX20 |
2 | ||
| 90401-10015 |
MCX20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94096 |
MCX20 |
1 | ||
| 90080-94096 |
MCX20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-07061 |
MCX20 W(VSC) |
1 | ||
| 47319-07071 |
MCX20 |
1 | ||
| 47319-07071 |
MCX20 |
1 | ||
| 47319-07061 |
MCX20 W(VSC) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94097 |
MCX20 |
1 | ||
| 90080-94097 |
MCX20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-07041 |
MCX20 |
1 | ||
| 47321-07041 |
MCX20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
MCX20 |
1 | ||
| 90412-10140 |
MCX20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-07041 |
MCX20 |
1 | ||
| 47322-07041 |
MCX20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-07061 |
MCX20 W(VSC) |
1 | ||
| 47323-07071 |
MCX20 |
1 | ||
| 47323-07071 |
MCX20 |
1 | ||
| 47323-07061 |
MCX20 W(VSC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-07061 |
MCX20 W(VSC) |
1 | ||
| 47324-07071 |
MCX20 |
1 | ||
| 47324-07071 |
MCX20 |
1 | ||
| 47324-07061 |
MCX20 W(VSC) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-41040 |
MCX20 |
1 | ||
| 47371-41040 |
MCX20 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-33090 |
MCX20 |
1 | ||
| 47371-33090 |
MCX20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-32130 |
MCX20 |
1 | ||
| 47371-32130 |
MCX20 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-32140 |
MCX20 |
1 | ||
| 47371-32140 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11629 | ||||
| 90080-17021 | ||||
| 90119-08C40 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90182-A0005 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01431 | ||||

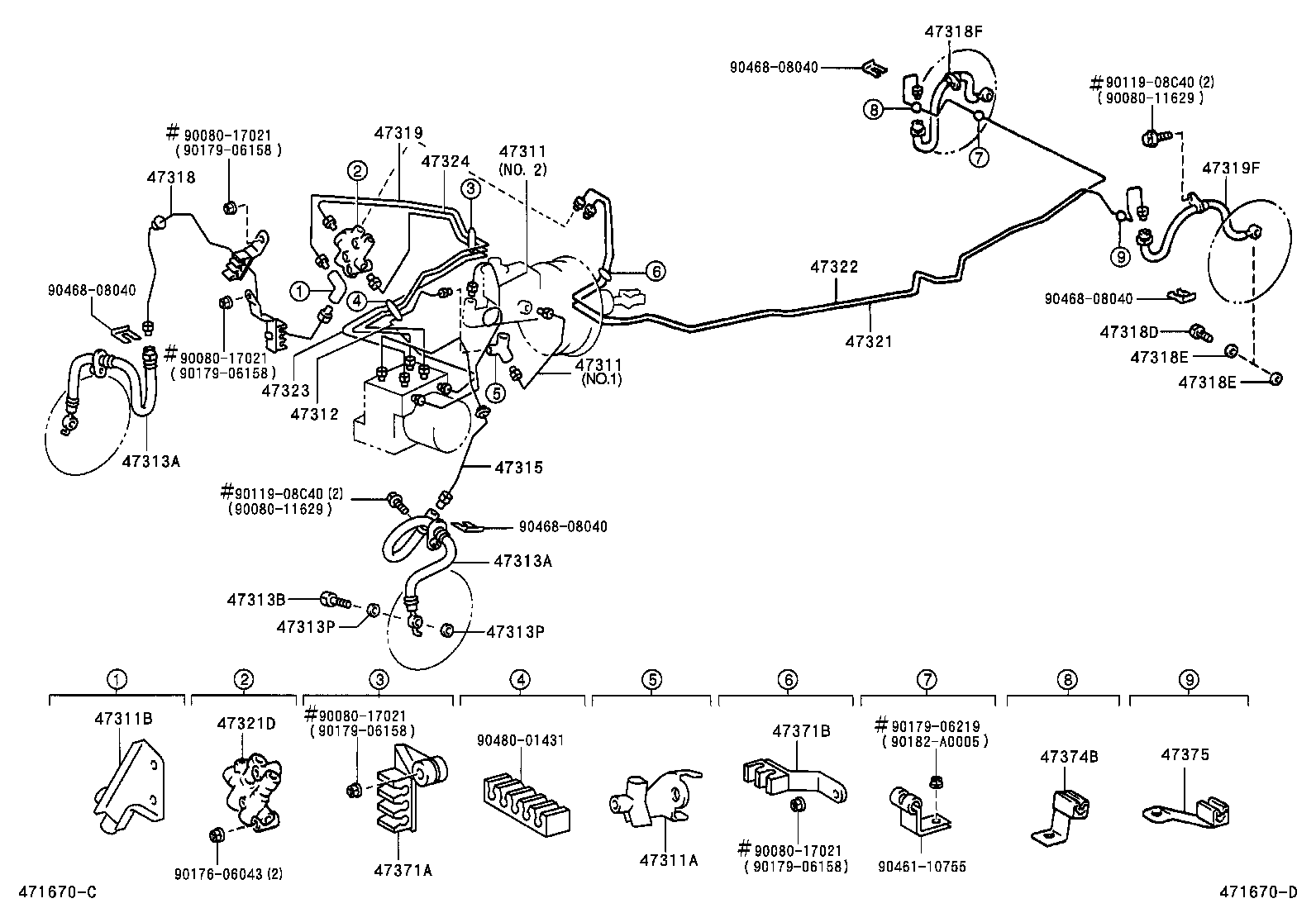

ILLUST NO. 1 OF 2(9908- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07041 |
MCX20 NO.2 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07051 |
MCX20 NO.1 |
1 | ||
| 47311-07031 |
MCX20 W(VSC),NO.2 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90904-13050 |
MCX20 W(VSC) |
1 | ||
| 90904-12071 |
MCX20 |
1 | ||
| 90904-12071 |
MCX20 |
1 | ||
| 90904-13050 |
MCX20 W(VSC) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12038 |
MCX20 |
1 | ||
| 90904-12038 |
MCX20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-07031 |
MCX20 |
1 | ||
| 47312-07021 |
MCX20 W(VSC) |
1 | ||
| 47312-07031 |
MCX20 |
1 | ||
| 47312-07021 |
MCX20 W(VSC) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94095 |
MCX20 LH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 90080-94094 |
MCX20 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCX20 |
2 | ||
| 90401-10015 |
MCX20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-07051 |
MCX20 |
1 | ||
| 47315-07041 |
MCX20 W(VSC) |
1 | ||
| 47315-07041 |
MCX20 W(VSC) |
1 | ||
| 47315-07051 |
MCX20 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-07021 |
MCX20 |
1 | ||
| 47318-07021 |
MCX20 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCX20 |
2 | ||
| 90401-10015 |
MCX20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCX20 |
4 | ||
| 90430-10074 |
MCX20 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94096 |
MCX20 |
1 | ||
| 90080-94096 |
MCX20 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-07061 |
MCX20 W(VSC) |
1 | ||
| 47319-07071 |
MCX20 |
1 | ||
| 47319-07071 |
MCX20 |
1 | ||
| 47319-07061 |
MCX20 W(VSC) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94097 |
MCX20 |
1 | ||
| 90080-94097 |
MCX20 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-07041 |
MCX20 |
1 | ||
| 47321-07041 |
MCX20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
MCX20 |
1 | ||
| 90412-10140 |
MCX20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-07041 |
MCX20 |
1 | ||
| 47322-07041 |
MCX20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-07061 |
MCX20 W(VSC) |
1 | ||
| 47323-07071 |
MCX20 |
1 | ||
| 47323-07071 |
MCX20 |
1 | ||
| 47323-07061 |
MCX20 W(VSC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-07061 |
MCX20 W(VSC) |
1 | ||
| 47324-07071 |
MCX20 |
1 | ||
| 47324-07071 |
MCX20 |
1 | ||
| 47324-07061 |
MCX20 W(VSC) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-41040 |
MCX20 |
1 | ||
| 47371-41040 |
MCX20 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-33090 |
MCX20 |
1 | ||
| 47371-33090 |
MCX20 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-32130 |
MCX20 |
1 | ||
| 47371-32130 |
MCX20 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-32140 |
MCX20 |
1 | ||
| 47371-32140 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11629 | ||||
| 90080-17021 | ||||
| 90119-08C40 | ||||
| 90176-06043 | ||||
| 90179-06158 | ||||
| 90179-06219 | ||||
| 90182-A0005 | ||||
| 90461-10755 | ||||
| 90468-08040 | ||||
| 90480-01431 | ||||

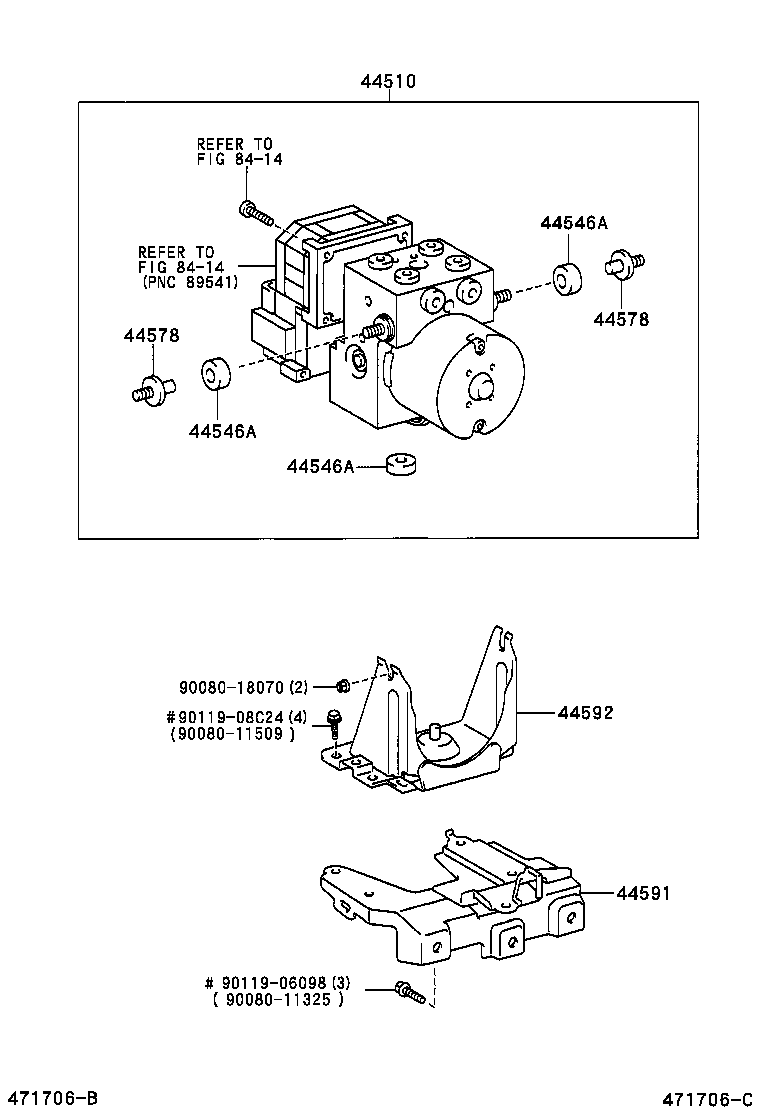

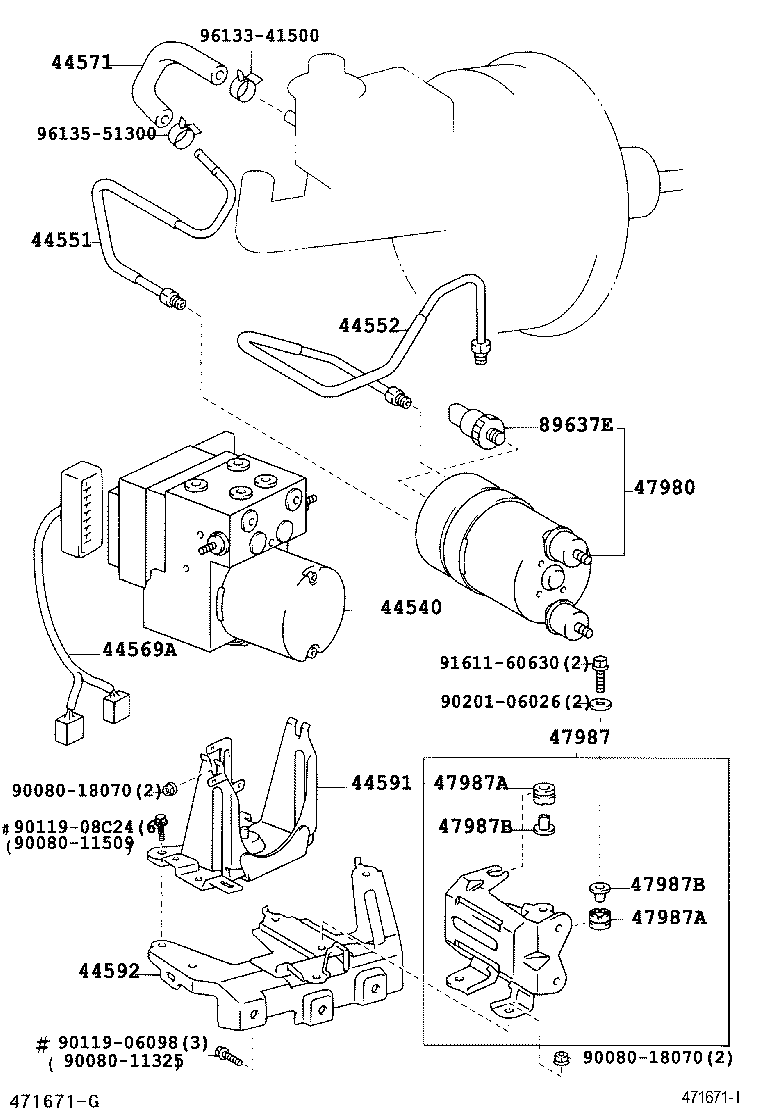

ILLUST NO. 2 OF 2(9908- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-07040 |
MCX20 |
1 | ||
| 44050-07040 |
MCX20 |
1 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-07020 |
MCX20 |
1 | ||
| 44551-07020 |
MCX20 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-07030 |
MCX20 |
1 | ||
| 44552-07030 |
MCX20 |
1 | ||
| 44569A - HARNESS, BRAKE ACTUATOR | ||||
| 44580-41010 |
MCX20 |
1 | ||
| 44580-41010 |
MCX20 |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-07010 |
MCX20 |
1 | ||
| 44571-07010 |
MCX20 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-07010 |
MCX20 |
1 | ||
| 44591-07020 |
MCX20 W(VSC) |
1 | ||
| 44591-07010 |
MCX20 |
1 | ||
| 44591-07020 |
MCX20 W(VSC) |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-07010 |
MCX20 |
1 | ||
| 44592-07020 |
MCX20 W(VSC) |
1 | ||
| 44592-07010 |
MCX20 |
1 | ||
| 44592-07020 |
MCX20 W(VSC) |
1 | ||
| 47980 - PUMP ASSY, BRAKE TRACTION | ||||
| 47980-07020 |
MCX20 |
1 | ||
| 47980-07020 |
MCX20 |
1 | ||
| 47987 - BRACKET, BRAKE TRACTION PUMP, NO.1 | ||||
| 47987-07010 |
MCX20 |
1 | ||
| 47987-07010 |
MCX20 |
1 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08010 |
MCX20 |
2 | ||
| 90385-08010 |
MCX20 |
2 | ||
| 47987A - BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90385-08010 |
MCX20 |
2 | ||
| 90385-08010 |
MCX20 |
2 | ||
| 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90561-06015 |
MCX20 |
2 | ||
| 90561-06015 |
MCX20 |
2 | ||
| 47987B - SPACER(FOR BRAKE TRACTION PUMP BRACKET) | ||||
| 90561-06015 |
MCX20 |
2 | ||
| 90561-06015 |
MCX20 |
2 | ||
| 89637E - SENSOR, OIL PRESSURE | ||||
| 89637-07010 |
MCX20 |
1 | ||
| 89637-07010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11325 | ||||
| 90080-11509 | ||||
| 90080-18070 | ||||
| 90119-06098 | ||||
| 90119-08C24 | ||||
| 90201-06026 | ||||
| 91611-60630 | ||||
| 96133-41500 | ||||
| 96135-51300 | ||||
ILLUST NO. 2 OF 2(9908- )
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-07050 |
MCX20 |
1 | ||
| 44050-07050 |
MCX20 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-06020 |
MCX20 |
3 | ||
| 44546-06020 |
MCX20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-06020 |
MCX20 |
3 | ||
| 44546-06020 |
MCX20 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-06020 |
MCX20 |
3 | ||
| 44546-06020 |
MCX20 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-06020 |
MCX20 |
2 | ||
| 44578-06020 |
MCX20 |
2 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-06020 |
MCX20 |
2 | ||
| 44578-06020 |
MCX20 |
2 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-07010 |
MCX20 |
1 | ||
| 44591-07020 |
MCX20 W(VSC) |
1 | ||
| 44591-07010 |
MCX20 |
1 | ||
| 44591-07020 |
MCX20 W(VSC) |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-07010 |
MCX20 |
1 | ||
| 44592-07020 |
MCX20 W(VSC) |
1 | ||
| 44592-07010 |
MCX20 |
1 | ||
| 44592-07020 |
MCX20 W(VSC) |
1 | ||
| Common parts | ||||
| 90080-11325 | ||||
| 90080-11509 | ||||
| 90080-18070 | ||||
| 90119-06098 | ||||
| 90119-08C24 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
