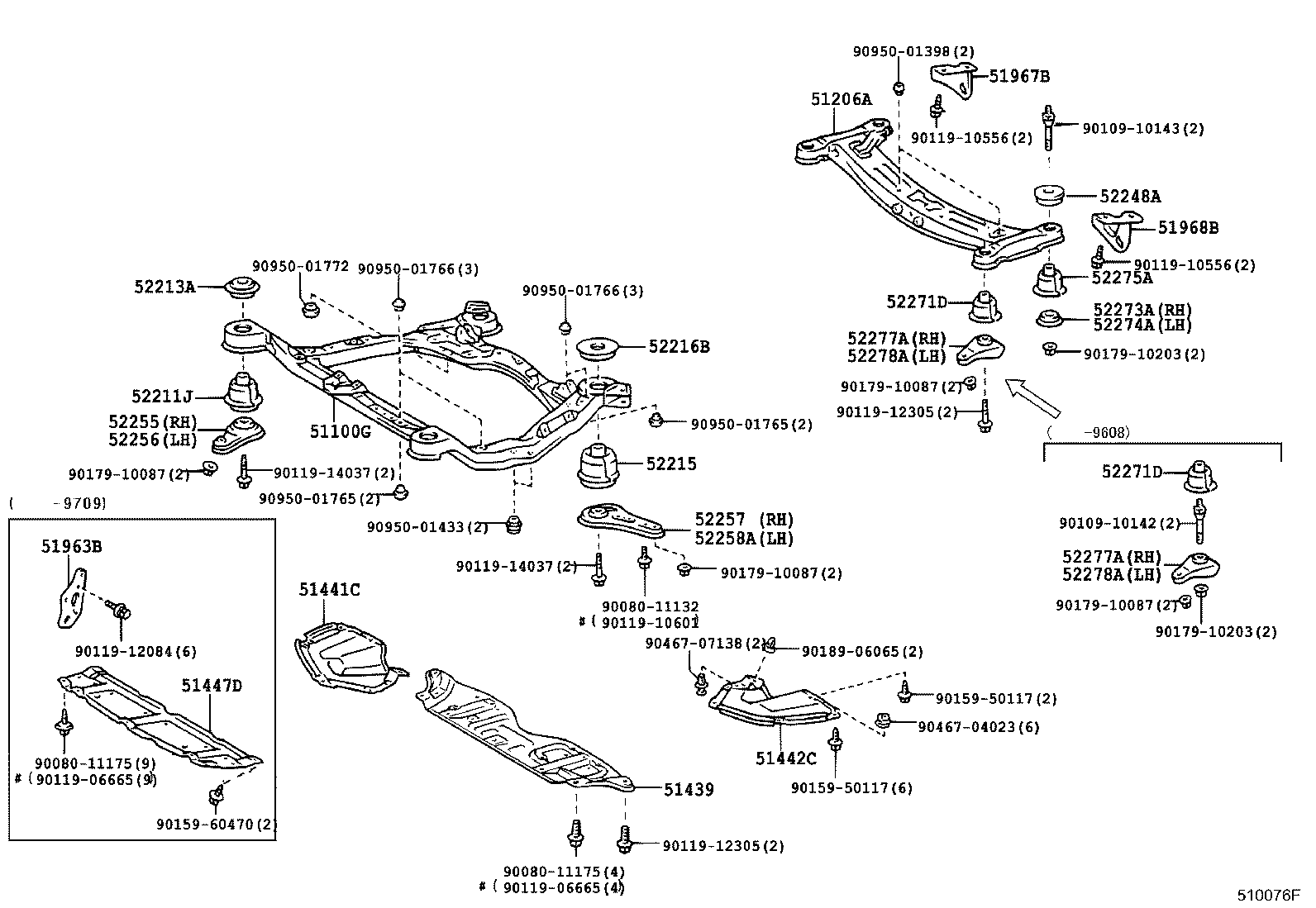

Toyota Avalon MCX10 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51100G - FRAME ASSY, FRONT
51100-06010	MCX10	09/1994 - 08/1997	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-06040	MCX10	08/1996 - 08/1997	1
51206-06011	MCX10	09/1994 - 08/1996	1
51439 - PLATE, ENGINE REAR SIDE SHUTTER
51439-33010	MCX10	09/1997 - 12/2999	1
51441C - COVER, ENGINE UNDER, RH
51441-AC010	MCX10	09/1994 - 12/2999	1
51442C - COVER, ENGINE UNDER, LH
51442-AC010	MCX10	09/1994 - 12/2999	1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-06010	MCX10	09/1994 - 09/1997	1
51963B - HOOK, TRANSPORT, FRONT RH
51963-AC010	MCX10	09/1994 - 09/1997	2
51967B - HOOK, TRANSPORT, REAR RH
51967-AA010	MCX10	09/1997 - 12/2999	1
51967-AC010	MCX10	09/1994 - 09/1997	1
51968B - HOOK, TRANSPORT, REAR LH
51968-06010	MCX10	09/1997 - 12/2999	1
51968-06020	MCX10	09/1994 - 09/1997	1
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-07010	MCX10	09/1994 - 12/2999	2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-07010	MCX10	09/1994 - 12/2999	2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-07010	MCX10	09/1994 - 12/2999	2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-07010	MCX10	09/1994 - 12/2999	2
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-33020	MCX10	09/1997 - 12/2999	1
52255-33010	MCX10	09/1994 - 09/1997	1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-33010	MCX10	09/1994 - 09/1997	1
52256-33020	MCX10	09/1997 - 12/2999	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-33010	MCX10	09/1994 - 05/1996	1
51023-33010	MCX10	05/1996 - 12/2999	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-33010	MCX10	09/1994 - 05/1996	1
51024-33010	MCX10	05/1996 - 12/2999	1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-06030	MCX10	09/1994 - 12/2999	2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-06030	MCX10	09/1994 - 12/2999	2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-32010	MCX10	09/1994 - 12/2999	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-32010	MCX10	09/1994 - 12/2999	1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-06030	MCX10	09/1994 - 12/2999	2
52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52203-33010	MCX10	09/1994 - 12/2999	1
52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52203-33010	MCX10	09/1994 - 12/2999	1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52204-33010	MCX10	09/1994 - 12/2999	1
52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52204-33010	MCX10	09/1994 - 12/2999	1
Common parts
90080-11132
90080-11175
90109-10142
90109-10143
90119-06665
90119-10556
90119-10601
90119-12084
90119-12305
90119-14037
90159-50117
90159-60470
90179-10087
90179-10203
90189-06065
90467-04023
90467-07138
90950-01398
90950-01433
90950-01765
90950-01766
90950-01772

MCX10L-AESNKK (1994)

(9409- )
