MCX10L-AESNKK (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1998
Engine
1MZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

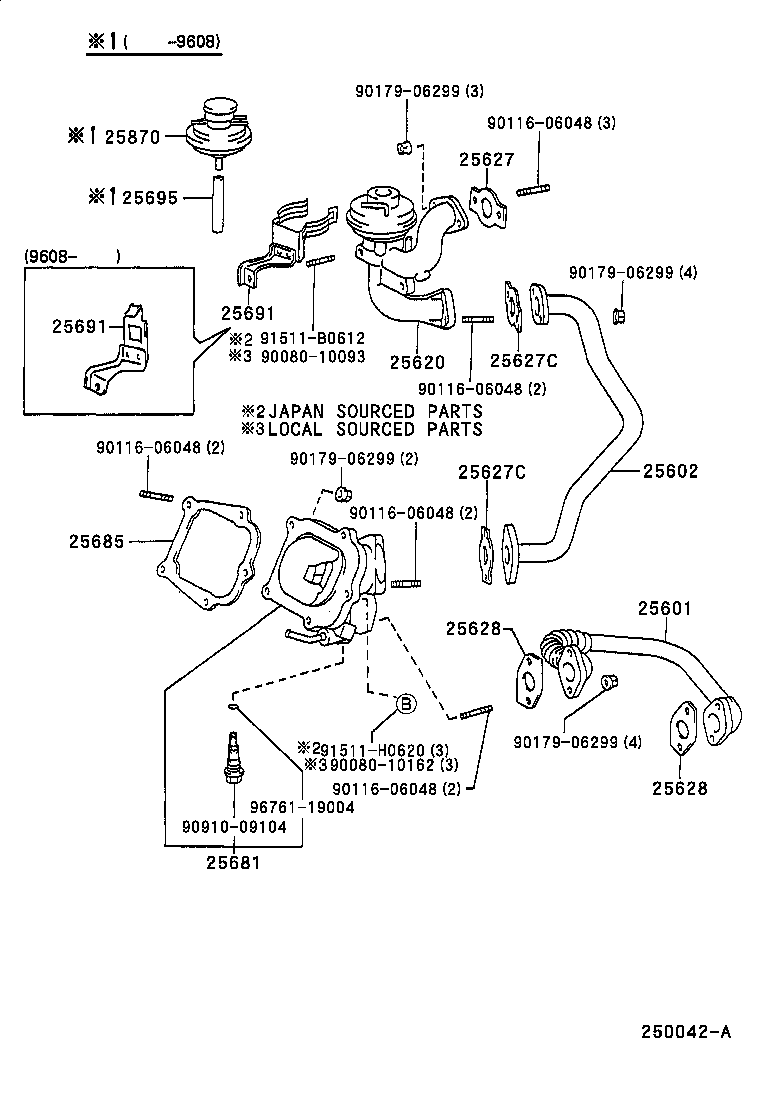

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25611-0A010 |
1MZFE..MCX10 |
1 | ||
| 25611-0A011 |
1MZFE..MCX10 |
1 | ||
| 25602 - PIPE SUB-ASSY, EGR, NO.2 | ||||
| 25612-0A010 |
1MZFE..MCX10 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-20010 |
1MZFE..MCX10 |
1 | ||
| 25620-20020 |
1MZFE..MCX10 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-0A010 |
1MZFE..MCX10 |
1 | ||
| 25627C - GASKET(FOR EGR PIPE NO.2) | ||||
| 25627-0A010 |
1MZFE..MCX10 |
2 | ||
| 25627C - GASKET(FOR EGR PIPE NO.2) | ||||
| 25627-0A010 |
1MZFE..MCX10 |
2 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-0A010 |
1MZFE..MCX10 |
2 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-0A010 |
1MZFE..MCX10 |
2 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 25681-20010 |
1MZFE..MCX10 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-0A010 |
1MZFE..MCX10 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-20030 |
1MZFE..MCX10 |
1 | ||
| 25691-20020 |
1MZFE..MCX10 |
1 | ||
| 25691-20010 |
1MZFE..MCX10 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-20030 |
1MZFE..MCX10 |
1 | ||
| 25691-20020 |
1MZFE..MCX10 |
1 | ||
| 25691-20010 |
1MZFE..MCX10 |
1 | ||
| 25695 - HOSE, EGR VACUUM MODULATOR | ||||
| 25695-20010 |
1MZFE..MCX10 |
1 | ||
| 25870 - VALVE ASSY, EGR VACUUM MODULATOR | ||||
| 25870-62020 |
1MZFE..MCX10 |
1 | ||
| Common parts | ||||
| 90080-10093 | ||||
| 90080-10162 | ||||
| 90116-06048 | ||||
| 90179-06299 | ||||
| 90910-09104 | ||||
| 91511-B0612 | ||||
| 91511-H0620 | ||||
| 96761-19004 | ||||
