MCX10L-AESNKA (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

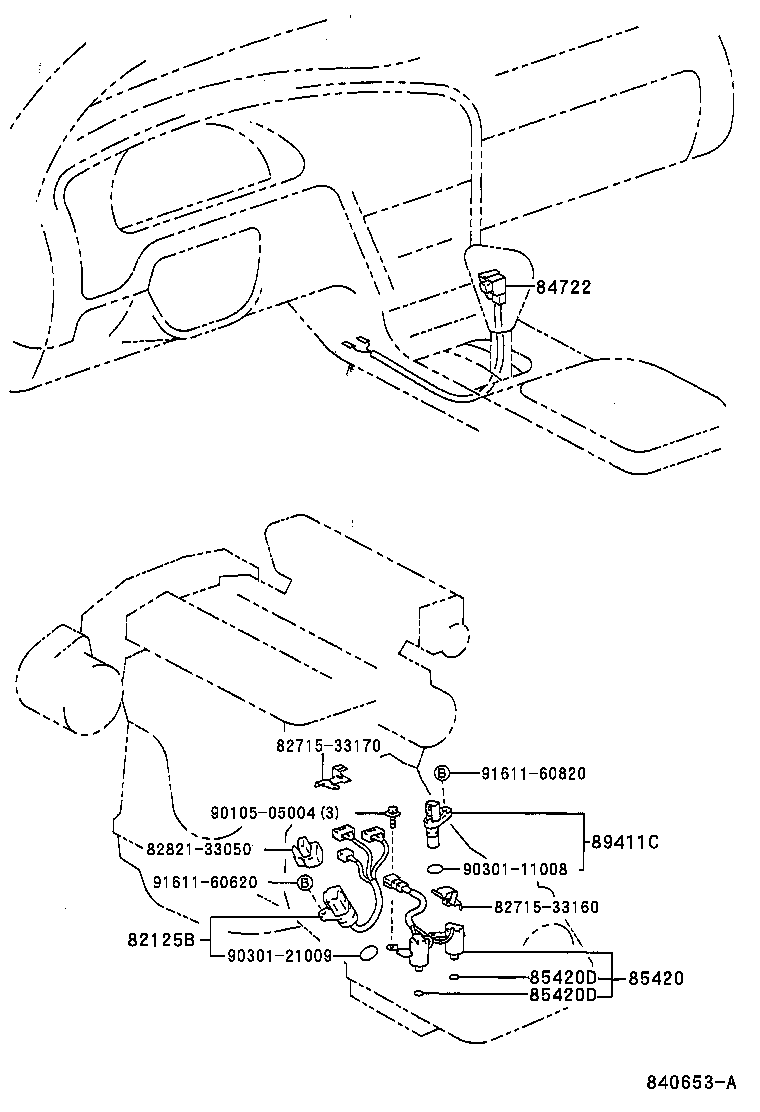

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-33010 |
MCX10 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-33010 |
MCX10 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCX10 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCX10 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89413-24010 |
MCX10 AISIN |
1 | ||
| 89411-33010 |
MCX10 TOYOTA |
1 | ||
| Common parts | ||||
| 82715-33160 | ||||
| 82715-33170 | ||||
| 82821-33050 | ||||
| 90105-05004 | ||||
| 90301-11008 | ||||
| 90301-21009 | ||||
| 91611-60620 | ||||
| 91611-60820 | ||||
