MCX10L-AEPGKK (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

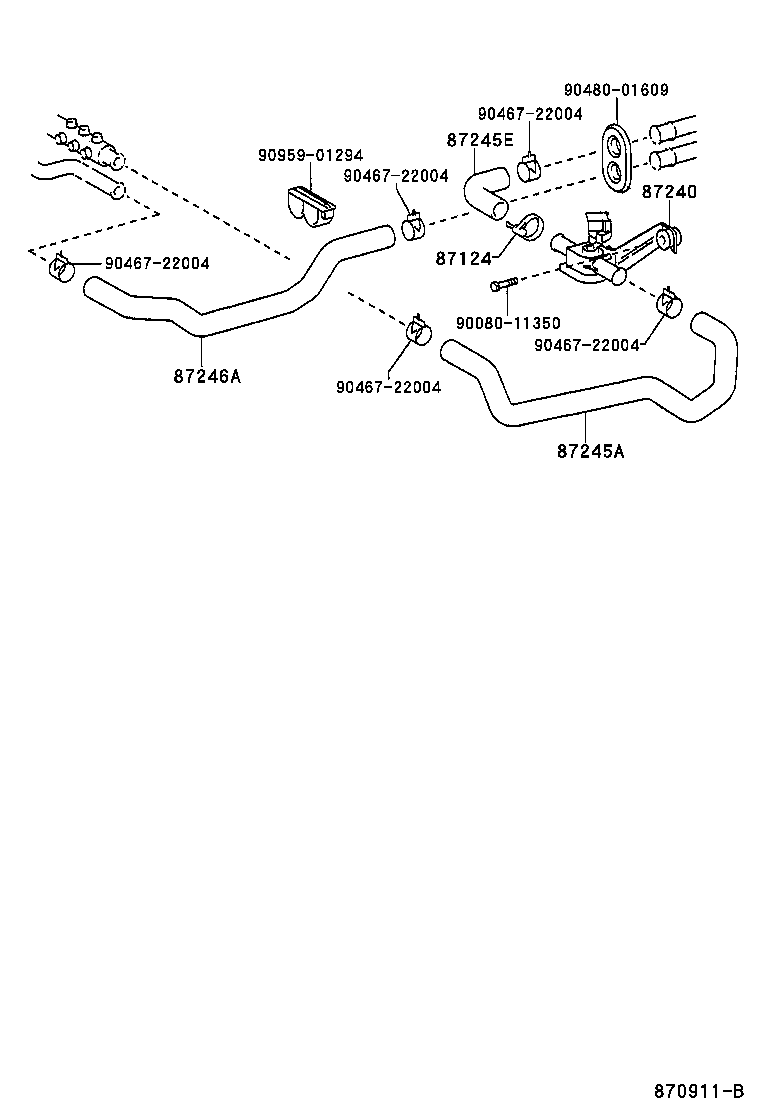

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87124 - CLAMP, HEATER | ||||
| 87124-28030 |
MCX10 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-06010 |
MCX10 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-06060 |
MCX10 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-06050 |
MCX10 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-06070 |
MCX10 |
1 | ||
| Common parts | ||||
| 90080-11350 | ||||
| 90467-22004 | ||||
| 90480-01609 | ||||
| 90959-01294 | ||||
