MCX10L-AEPGKK (1994)
Toyota Avalon

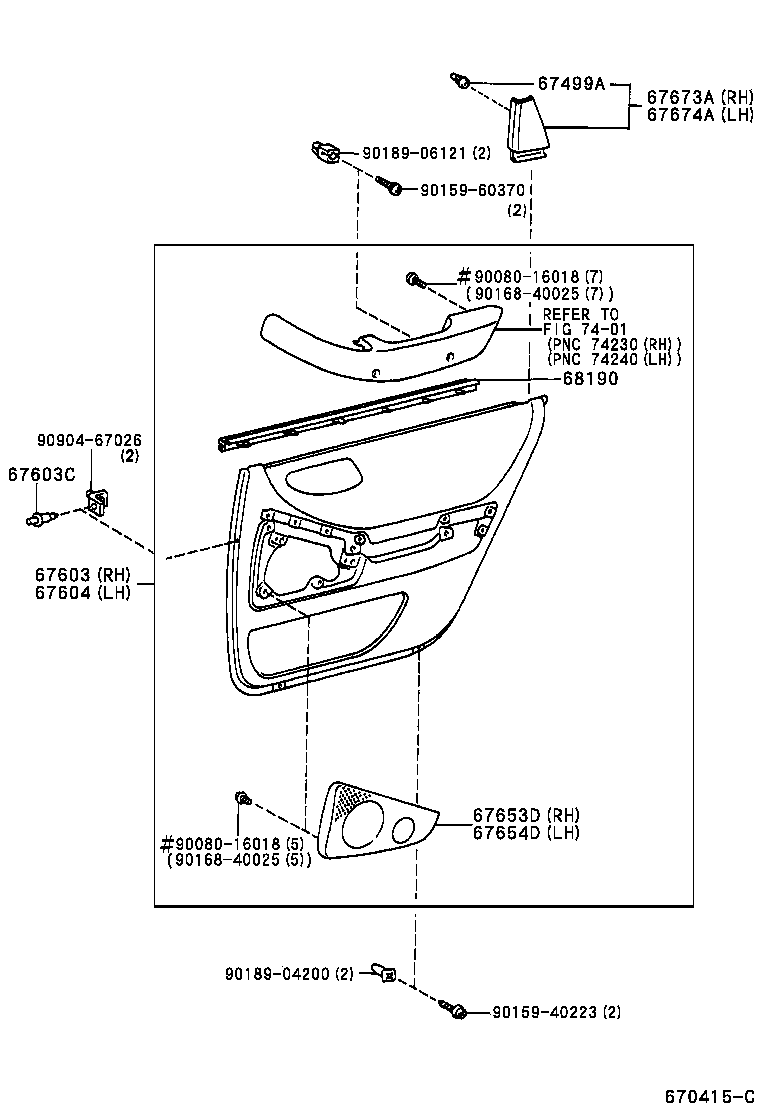

ILLUST NO. 1 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67499A - RETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-06010 |
MCX10 |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-AC030E1 |
MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA LEATHER PACKAGE,ADOBE,TRIM4# |
1 | ||
| 67630-AC020E0 |
MCX10..XLS QUARTZ,TRIM41 |
1 | ||
| 67630-AC010C0 |
MCX10..XL GRAY,TRIM2# |
1 | ||
| 67630-AC020C0 |
MCX10..XLS GRAY,TRIM2# |
1 | ||
| 67630-AC010E1 |
MCX10..XL ADOBE,TRIM42 |
1 | ||
| 67630-AC010E0 |
MCX10..XL QUARTZ,TRIM41 |
1 | ||
| 67630-AC030E0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA LEATHER PACKAGE,DK. ROSE,TRIM4# |
1 | ||
| 67630-AC010E6 |
MCX10..XL ROSE STONE,TRIM43 |
1 | ||
| 67630-AC020E1 |
MCX10..XLS ADOBE,TRIM42 |
1 | ||
| 67630-AC030E0 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,DK. ROSE,TRIM4# |
1 | ||
| 67630-AC030E1 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,ADOBE,TRIM4# |
1 | ||
| 67630-AC030C0 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67630-AC010C2 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67630-AC030L2 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,ROSE STONE,TRIM4# |
1 | ||
| 67630-AC010E5 |
MCX10..XL DK.ADOBE,TRIM42 |
1 | ||
| 67630-AC030L7 |
MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND LEATHER PACKAGE,SANDAL WOOD,TRIM44 |
1 | ||
| 67630-AC040C2 |
MCX10..XLS BLACK,TRIM2# |
1 | ||
| 67630-AC040E8 |
MCX10..XLS ROSE STONE,TRIM43 |
1 | ||
| 67630-AC040E5 |
MCX10..XLS DK. ADOBE,TRIM42 |
1 | ||
| 67630-AC030L4 |
MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND LEATHER PACKAGE,ROSE STONE,TRIM43 |
1 | ||
| 67630-AC030C0 |
MCX10..XLS LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67630-AC040L0 |
MCX10..XLS ROSE STONE,TRIM43 |
1 | ||
| 67630-AC060E3 |
MCX10..XL SANDAL WOOD,TRIM44 |
1 | ||
| 67630-AC060E1 |
MCX10..XL ROSE STONE,TRIM43 |
1 | ||
| 67630-AC040L2 |
MCX10..XLS SANDAL WOOD,TRIM44 |
1 | ||
| 67630-AC060C1 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E3 |
MCX10 QUARTZ,TRIM43 |
4 | ||
| 90467-07066A0 |
MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA IVORY,TRIM44 |
4 | ||
| 90467-0706622 |
MCX10 BLACK,TRIM2# |
4 | ||
| 90467-07066E4 |
MCX10 LT. ADOBE,TRIM42 |
4 | ||
| 90467-07066E3 |
MCX10 QUARTZ,TRIM41 |
4 | ||
| 90467-07066E3 |
MCX10..4HC;MCX10..4FC..CND;MCX10..4FC..XL..USA QUARTZ,TRIM43 |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-AC020C0 |
MCX10..XLS GRAY,TRIM2# |
1 | ||
| 67640-AC010C0 |
MCX10..XL GRAY,TRIM2# |
1 | ||
| 67640-AC010E0 |
MCX10..XL QUARTZ,TRIM41 |
1 | ||
| 67640-AC030E0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA LEATHER PACKAGE,DK. ROSE,TRIM4# |
1 | ||
| 67640-AC010E5 |
MCX10..XL DK.ADOBE,TRIM42 |
1 | ||
| 67640-AC010E1 |
MCX10..XL ADOBE,TRIM42 |
1 | ||
| 67640-AC030L2 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,ROSE STONE,TRIM4# |
1 | ||
| 67640-AC030E1 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,ADOBE,TRIM4# |
1 | ||
| 67640-AC020E1 |
MCX10..XLS ADOBE,TRIM42 |
1 | ||
| 67640-AC020E0 |
MCX10..XLS QUARTZ,TRIM41 |
1 | ||
| 67640-AC040E8 |
MCX10..XLS ROSE STONE,TRIM43 |
1 | ||
| 67640-AC010E6 |
MCX10..XL ROSE STONE,TRIM43 |
1 | ||
| 67640-AC040E5 |
MCX10..XLS DK. ADOBE,TRIM42 |
1 | ||
| 67640-AC030C0 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67640-AC030E1 |
MCX10..XLS..CND;MCX10..4HC..XL..USA;MCX10..4FC..XLS..USA LEATHER PACKAGE,ADOBE,TRIM4# |
1 | ||
| 67640-AC010C2 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67640-AC030C0 |
MCX10..XLS LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67640-AC060C1 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67640-AC030L4 |
MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND LEATHER PACKAGE,ROSE STONE,TRIM43 |
1 | ||
| 67640-AC040L0 |
MCX10..XLS ROSE STONE,TRIM43 |
1 | ||
| 67640-AC030E0 |
MCX10..XLS;MCX10..4HC..XL..USA LEATHER PACKAGE,DK. ROSE,TRIM4# |
1 | ||
| 67640-AC030L7 |
MCX10..4HC..XLS;MCX10..4HC..XL..USA;MCX10..4FC..XLS..CND LEATHER PACKAGE,SANDAL WOOD,TRIM44 |
1 | ||
| 67640-AC060E1 |
MCX10..XL ROSE STONE,TRIM43 |
1 | ||
| 67640-AC040C2 |
MCX10..XLS BLACK,TRIM2# |
1 | ||
| 67640-AC060E3 |
MCX10..XL SANDAL WOOD,TRIM44 |
1 | ||
| 67640-AC040L2 |
MCX10..XLS SANDAL WOOD,TRIM44 |
1 | ||
| 67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH | ||||
| 67653-AC020E0 |
MCX10..XLS DK. ROSE,TRIM41 |
1 | ||
| 67653-AC010E3 |
MCX10..XL LT. ADOBE,TRIM42 |
1 | ||
| 67653-AC020E0 |
MCX10..XLS DK. ROSE,TRIM43 |
1 | ||
| 67653-AC010E2 |
MCX10..XL QUARTZ,TRIM41 |
1 | ||
| 67653-AC020C0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67653-AC010C1 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67653-AC020E1 |
MCX10..XLS ADOBE,TRIM42 |
1 | ||
| 67653-AC010E2 |
MCX10..XL QUARTZ,TRIM43 |
1 | ||
| 67653-AC020A0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA LEATHER PACKAGE,IVORY,TRIM44 |
1 | ||
| 67653-AC010A0 |
MCX10..XL IVORY,TRIM44 |
1 | ||
| 67653-AC020E0 |
MCX10..4HC..XLS;MCX10..4FC..XLS..CND DK. ROSE,TRIM43 |
1 | ||
| 67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH | ||||
| 67654-AC010E3 |
MCX10..XL LT. ADOBE,TRIM42 |
1 | ||
| 67654-AC020C0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA LEATHER PACKAGE,BLACK,TRIM2# |
1 | ||
| 67654-AC020E0 |
MCX10..XLS DK. ROSE,TRIM41 |
1 | ||
| 67654-AC010E2 |
MCX10..XL QUARTZ,TRIM43 |
1 | ||
| 67654-AC020E0 |
MCX10..XLS DK. ROSE,TRIM43 |
1 | ||
| 67654-AC020E1 |
MCX10..XLS ADOBE,TRIM42 |
1 | ||
| 67654-AC010C1 |
MCX10..XL BLACK,TRIM2# |
1 | ||
| 67654-AC010E2 |
MCX10..XL QUARTZ,TRIM41 |
1 | ||
| 67654-AC010A0 |
MCX10..XL IVORY,TRIM44 |
1 | ||
| 67654-AC020E0 |
MCX10..4HC..XLS;MCX10..4FC..XLS..CND DK. ROSE,TRIM43 |
1 | ||
| 67654-AC020A0 |
MCX10..XLS..CND;MCX10..4HC..XL..USA LEATHER PACKAGE,IVORY,TRIM44 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-AC010 |
MCX10 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-AC010 |
MCX10 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-AC010 |
MCX10 RH |
1 | ||
| 68240-AC010 |
MCX10 LH |
1 | ||
| Common parts | ||||
| 90080-16018 | ||||
| 90159-40223 | ||||
| 90159-60370 | ||||
| 90168-40025 | ||||
| 90189-04200 | ||||
| 90189-06121 | ||||
| 90904-67026 | ||||
| Linked diagrams | ||||
| 7401 | ||||

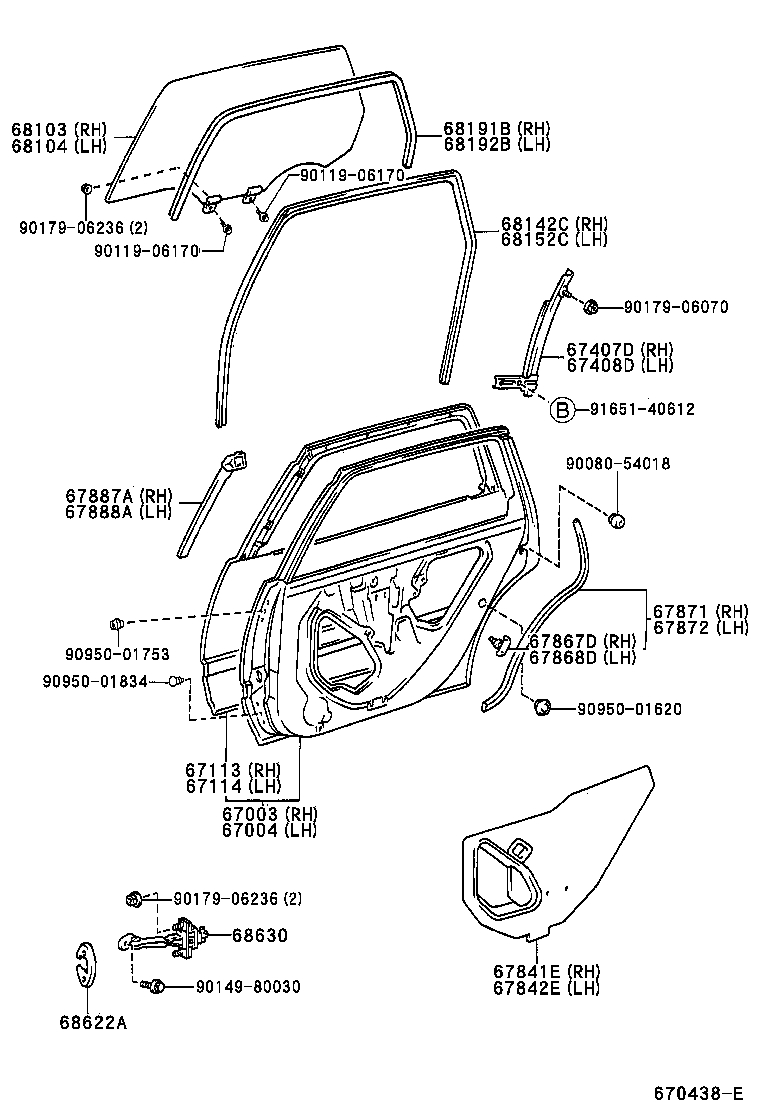

ILLUST NO. 2 OF 2(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-07010 |
MCX10 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-07010 |
MCX10 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-07010 |
MCX10 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-07010 |
MCX10 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-AC010 |
MCX10 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-AC010 |
MCX10 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67805-AC010 |
MCX10 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67806-AC010 |
MCX10 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-AC010 |
MCX10 |
9 | ||
| 67868-12050 |
MCX10 |
9 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
MCX10 |
9 | ||
| 67868-AC010 |
MCX10 |
9 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-AC010 |
MCX10 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-AC010 |
MCX10 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-AC010 |
MCX10 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-AC010 |
MCX10 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-AC030 |
MCX10 *TT,T=3.5,GREEN |
1 | ||
| 68103-AC020 |
MCX10 *TEM,T=3.5,BRONZE |
1 | ||
| 68103-AC010 |
MCX10 *TEM,T=3.5,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-AC020 |
MCX10 *TEM,T=3.5,BRONZE |
1 | ||
| 68104-AC010 |
MCX10 *TEM,T=3.5,GREEN |
1 | ||
| 68104-AC030 |
MCX10 *TT,T=3.5,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-AC010 |
MCX10 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-AC010 |
MCX10 |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-AC010 |
MCX10 |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-AC010 |
MCX10 |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68623-AC010 |
MCX10 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-07010 |
MCX10 RH |
1 | ||
| 68640-07010 |
MCX10 LH |
1 | ||
| Common parts | ||||
| 90080-54018 | ||||
| 90119-06170 | ||||
| 90149-80030 | ||||
| 90179-06070 | ||||
| 90179-06236 | ||||
| 90950-01620 | ||||
| 90950-01753 | ||||
| 90950-01834 | ||||
| 91651-40612 | ||||
