MCX10L-AEPGKK (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

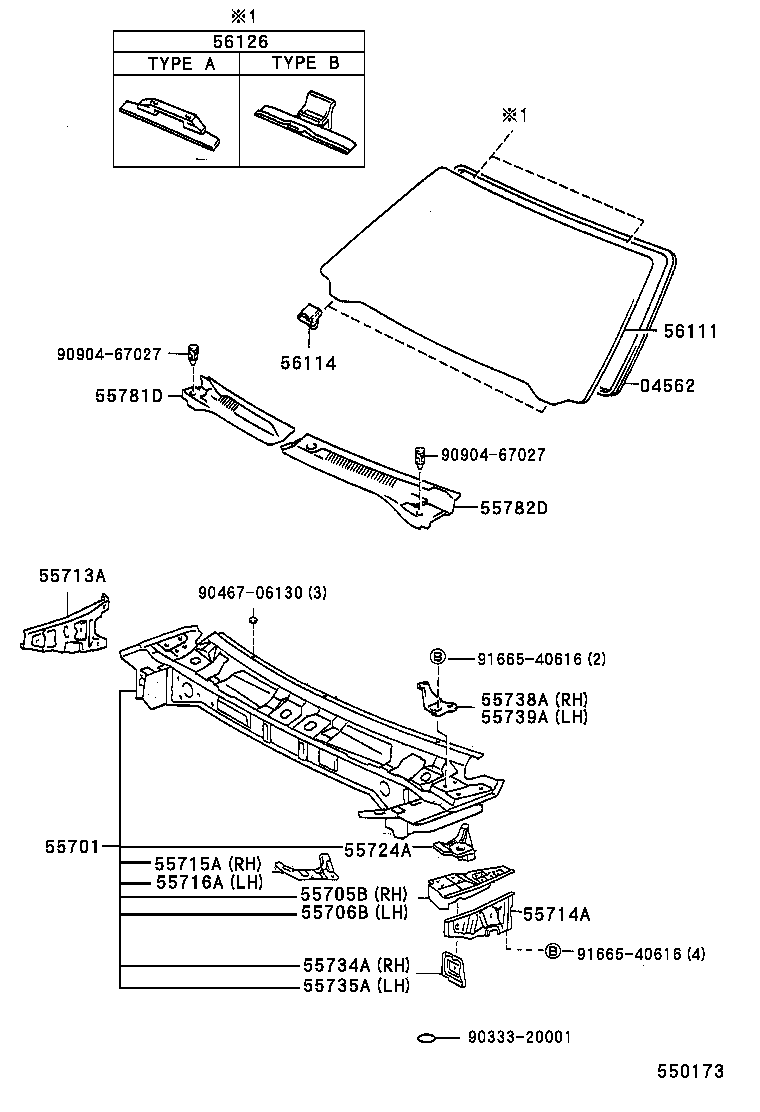

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
MCX10 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-07010 |
MCX10 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-07010 |
MCX10 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-07010 |
MCX10 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-07010 |
MCX10 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-07010 |
MCX10 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-33010 |
MCX10 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-33010 |
MCX10 |
1 | ||
| 55724A - REINFORCEMENT, COWL TOP SIDE, LH | ||||
| 55724-07010 |
MCX10 |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-06010 |
MCX10 (L) |
1 | ||
| 55734-33010 |
MCX10 (J) |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55735-06010 |
MCX10 (L) |
1 | ||
| 55735-33010 |
MCX10 (J) |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-07010 |
MCX10 |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-07010 |
MCX10 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-41010 |
MCX10 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-41010 |
MCX10 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-AC010 |
MCX10 *TL,T=4.8,BLUE |
1 | ||
| 56101-AC020 |
MCX10 *TL,T=4.8,BRONZE |
1 | ||
| 56101-AC080 |
MCX10 *TL,T=4.8,GREEN |
1 | ||
| 56101-AC040 |
MCX10 *TL,T=4.8,GREEN |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-06010 |
MCX10 |
2 | ||
| 56126 - SPACER, WINDSHIELD GLASS, NO.2 | ||||
| 56126-30010 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 56126-22030 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90467-06130 | ||||
| 90904-67027 | ||||
| 91665-40616 | ||||
