MCX10L-AEPGKA (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9709- )

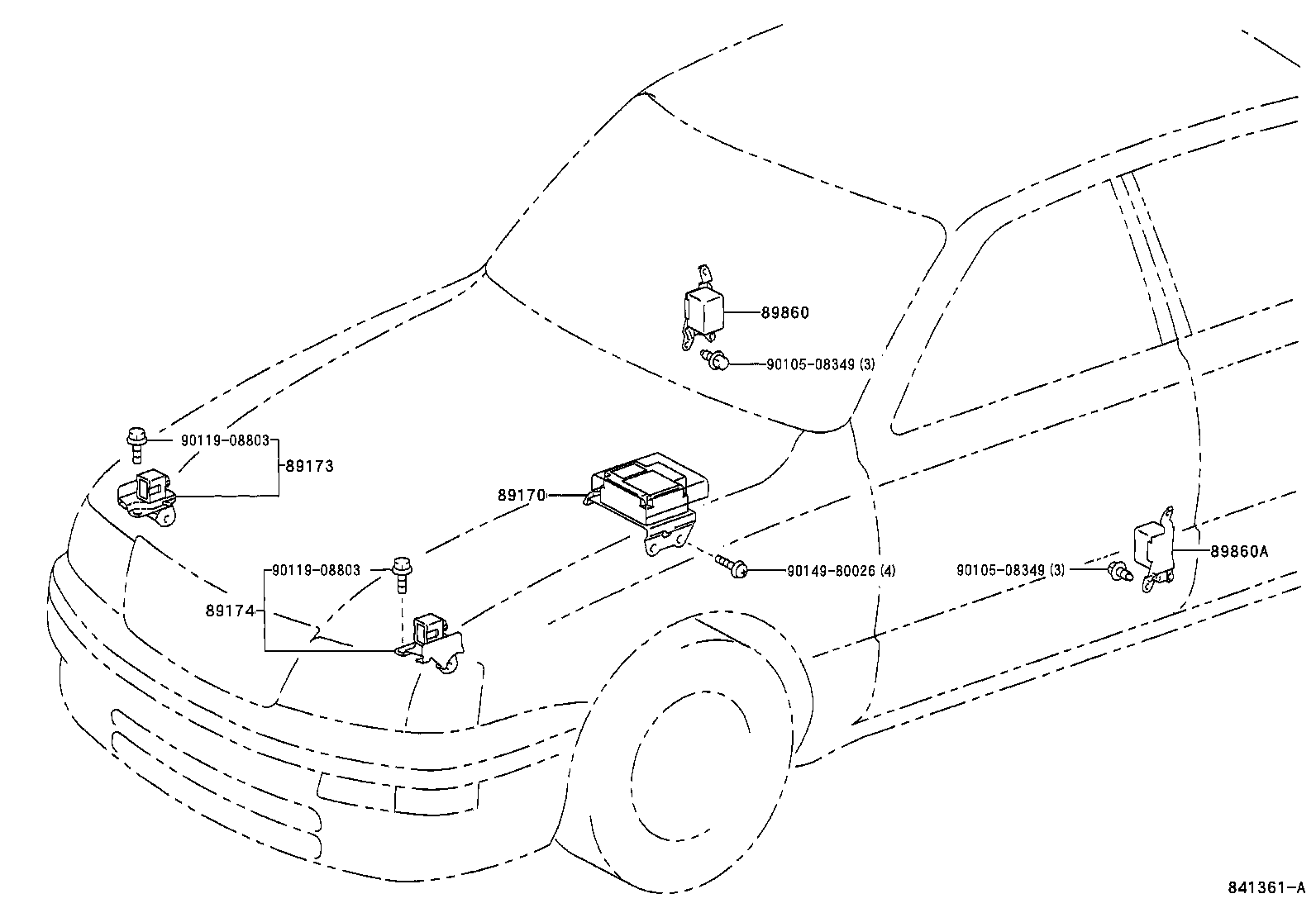

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-41010 |
MCX10 (J) |
1 | ||
| 89170-07110 |
MCX10 W(SIDE AIR BAG) |
1 | ||
| 89170-07040 |
MCX10 |
1 | ||
| 89170-07010 |
MCX10 (L) |
1 | ||
| 89170-07100 |
MCX10 |
1 | ||
| 89170-07050 |
MCX10 W(SIDE AIR BAG) |
1 | ||
| 89173 - SENSOR, AIR BAG, FRONT | ||||
| 89173-39195 |
MCX10 |
1 | ||
| 89174 - SENSOR, AIR BAG | ||||
| 89174-39065 |
MCX10 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-07010 |
MCX10 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-07010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90105-08349 | ||||
| 90119-08803 | ||||
| 90149-80026 | ||||
(9409-9709)

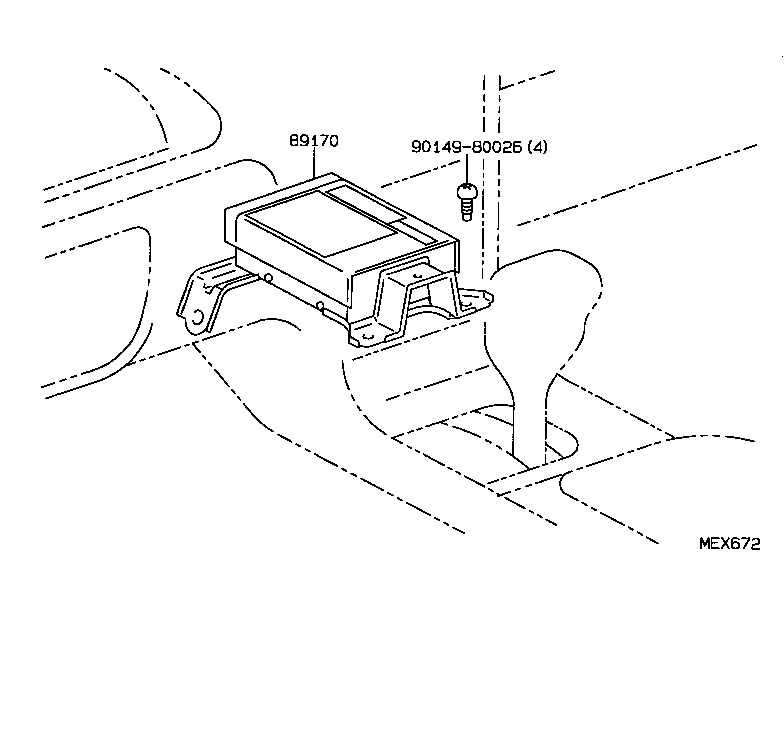

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-41010 |
MCX10 (J) |
1 | ||
| 89170-07110 |
MCX10 W(SIDE AIR BAG) |
1 | ||
| 89170-07040 |
MCX10 |
1 | ||
| 89170-07010 |
MCX10 (L) |
1 | ||
| 89170-07100 |
MCX10 |
1 | ||
| 89170-07050 |
MCX10 W(SIDE AIR BAG) |
1 | ||
| Common parts | ||||
| 90149-80026 | ||||
