MCX10L-AEPGKA (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

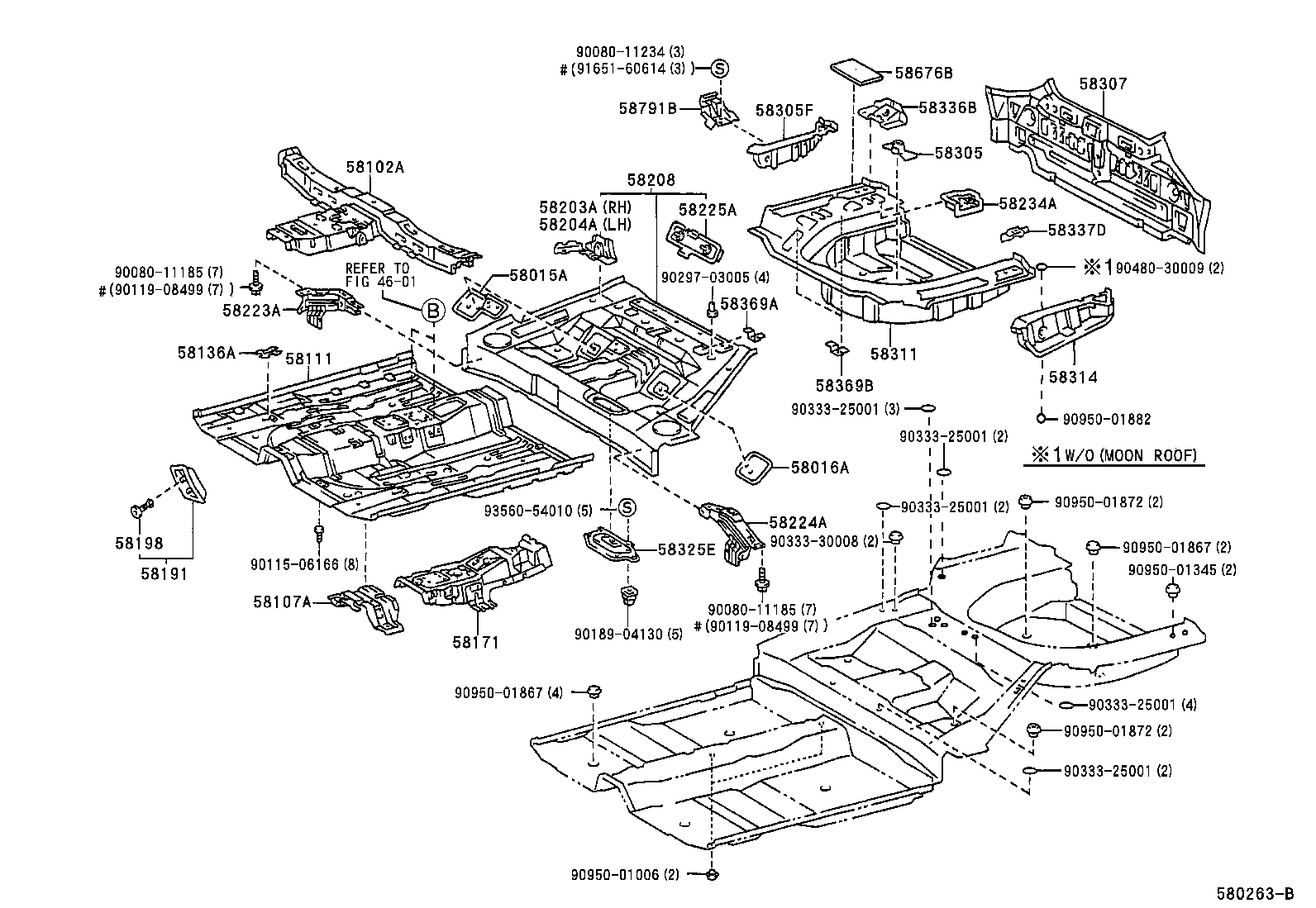

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-33010 |
MCX10 |
1 | ||
| 58015-06010 |
MCX10 |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58015-06010 |
MCX10 |
1 | ||
| 58016-33010 |
MCX10 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-07020 |
MCX10..4FC |
1 | ||
| 58102-07040 |
MCX10..4FC |
1 | ||
| 58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1 | ||||
| 58107-07010 |
MCX10 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-07010 |
MCX10 |
1 | ||
| 58111-07021 |
MCX10 |
1 | ||
| 58111-07020 |
MCX10 |
1 | ||
| 58111-07011 |
MCX10 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-33010 |
MCX10 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-07020 |
MCX10..4FC |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-06010 |
MCX10 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-06010 |
MCX10 |
2 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58213-33010 |
MCX10 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58214-33010 |
MCX10 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-06050 |
MCX10 |
1 | ||
| 58211-07021 |
MCX10 |
1 | ||
| 58211-07020 |
MCX10 |
1 | ||
| 58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH | ||||
| 58223-33010 |
MCX10 |
1 | ||
| 58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH | ||||
| 58224-33010 |
MCX10 |
1 | ||
| 58225A - BRACKET, CENTER MOUNTING | ||||
| 58225-07010 |
MCX10 |
1 | ||
| 58225-41010 |
MCX10 |
1 | ||
| 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER | ||||
| 58234-41010 |
MCX10 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-33010 |
MCX10 |
1 | ||
| 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 58305-07010 |
MCX10 |
1 | ||
| 58305-06010 |
MCX10 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-07010 |
MCX10 |
1 | ||
| 58307-07020 |
MCX10 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-33010 |
MCX10 W(7 SPEAKER) |
1 | ||
| 58311-06010 |
MCX10 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-07010 |
MCX10 |
1 | ||
| 58314-06010 |
MCX10 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-06011 |
MCX10 |
1 | ||
| 58325-06010 |
MCX10 |
1 | ||
| 58325-06020 |
MCX10 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-33010 |
MCX10 |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-06010 |
MCX10 |
2 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-06010 |
MCX10 |
2 | ||
| 58676B - PAD, REAR FLOOR SILENCER, NO.1 RH | ||||
| 58676-33010 |
MCX10 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-32060 |
MCX10 |
1 | ||
| Common parts | ||||
| 90080-11185 | ||||
| 90080-11234 | ||||
| 90115-06166 | ||||
| 90119-08499 | ||||
| 90189-04130 | ||||
| 90297-03005 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90480-30009 | ||||
| 90950-01006 | ||||
| 90950-01345 | ||||
| 90950-01867 | ||||
| 90950-01872 | ||||
| 90950-01882 | ||||
| 91651-60614 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 4601 | ||||
