MCX10L-AEPGKA (1994)
Toyota Avalon
Production
Sep 1994
-
Aug 1999
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

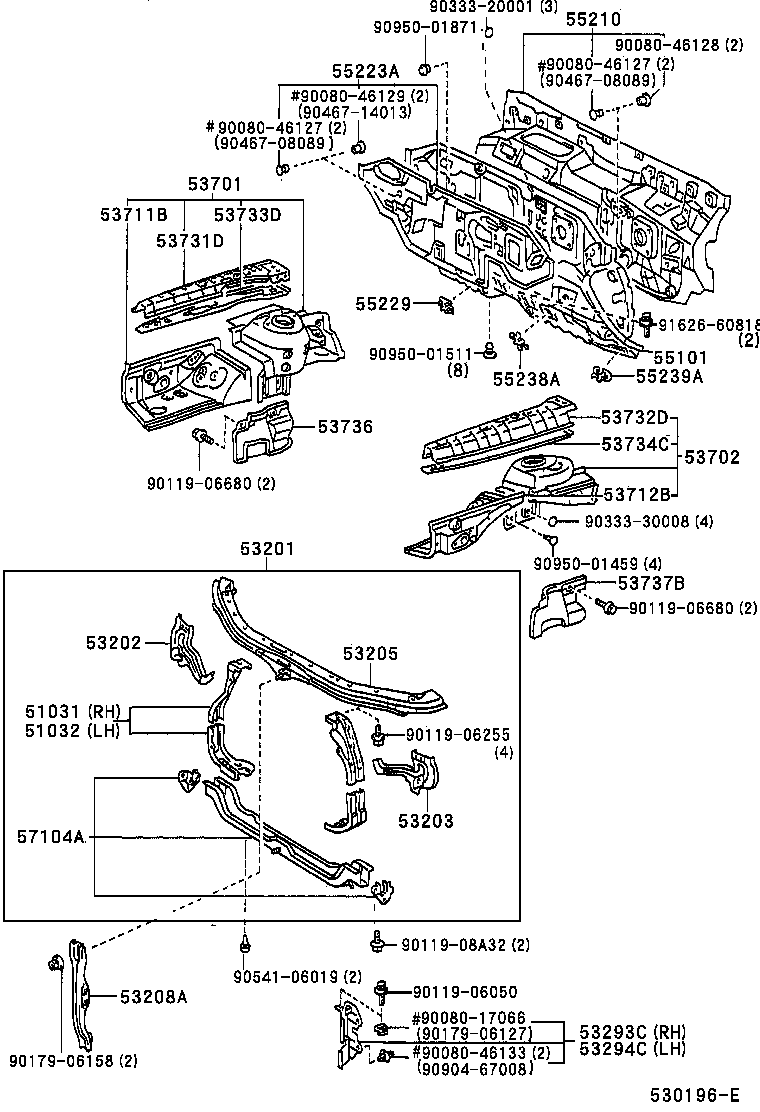

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51031 - GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH | ||||
| 51031-07010 |
MCX10 |
1 | ||
| 51032 - GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH | ||||
| 51032-07010 |
MCX10 |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-07900 |
MCX10 |
1 | ||
| 53201-07901 |
MCX10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-07010 |
MCX10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-07010 |
MCX10 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-07010 |
MCX10 |
1 | ||
| 53205-07020 |
MCX10 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-07010 |
MCX10 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-06010 |
MCX10 |
1 | ||
| 53293-AA010 |
MCX10 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-06010 |
MCX10 |
1 | ||
| 53294-AA010 |
MCX10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-06030 |
MCX10 |
1 | ||
| 53701-06041 |
MCX10 |
1 | ||
| 53701-06040 |
MCX10 |
1 | ||
| 53701-06042 |
MCX10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-06040 |
MCX10 |
1 | ||
| 53702-06010 |
MCX10 |
1 | ||
| 53702-06041 |
MCX10 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-06040 |
MCX10 |
1 | ||
| 53711-06900 |
MCX10 |
1 | ||
| 53711-06041 |
MCX10 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-06010 |
MCX10 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-06011 |
MCX10 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-06011 |
MCX10 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-06900 |
MCX10 (L) |
1 | ||
| 53733-33900 |
MCX10 (J) |
1 | ||
| 53733-06900 |
MCX10 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-06900 |
MCX10 (L) |
1 | ||
| 53734-33900 |
MCX10 (J) |
1 | ||
| 53734-06900 |
MCX10 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-06010 |
MCX10 |
1 | ||
| 53736-06020 |
MCX10 |
1 | ||
| 53736-08010 |
MCX10 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-08010 |
MCX10 |
1 | ||
| 53737-06010 |
MCX10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-07010 |
MCX10 |
1 | ||
| 55101-07030 |
MCX10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-AC010 |
MCX10 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-AC010 |
MCX10..XLS |
1 | ||
| 55223-AC010 |
MCX10 |
1 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-33010 |
MCX10 |
1 | ||
| 55238A - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-33010 |
MCX10 |
3 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-33010 |
MCX10 |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-33010 |
MCX10 |
1 | ||
| 57104-33020 |
MCX10 |
1 | ||
| Common parts | ||||
| 90080-17066 | ||||
| 90080-46127 | ||||
| 90080-46128 | ||||
| 90080-46129 | ||||
| 90080-46133 | ||||
| 90119-06050 | ||||
| 90119-06255 | ||||
| 90119-06680 | ||||
| 90119-08A32 | ||||
| 90179-06127 | ||||
| 90179-06158 | ||||
| 90333-20001 | ||||
| 90333-30008 | ||||
| 90467-08089 | ||||
| 90467-14013 | ||||
| 90541-06019 | ||||
| 90904-67008 | ||||
| 90950-01459 | ||||
| 90950-01511 | ||||
| 90950-01871 | ||||
| 91626-60818 | ||||
