MCX10L-AEPGKA (1994)
Toyota Avalon

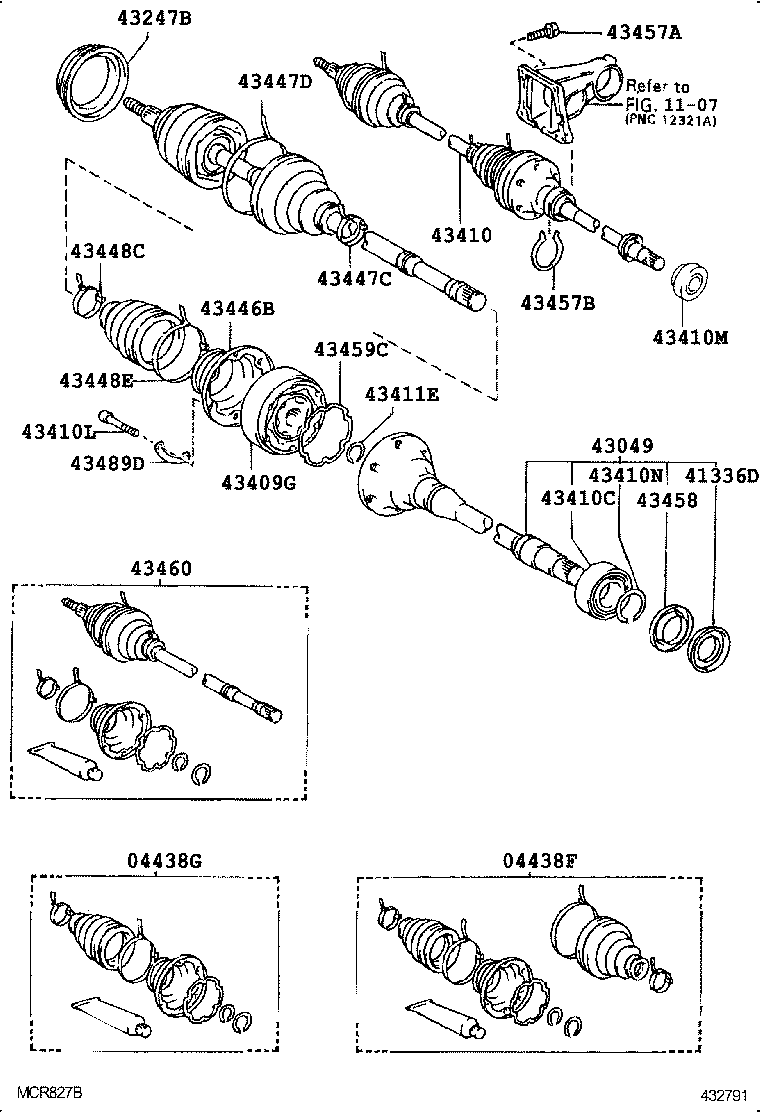

(9409-9610)
RH,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-06060 |
MCX10 |
1 | ||
| 04438-06100 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06060 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06100 |
MCX10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06090 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06050 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 |
1 | ||
| 04438-06050 |
MCX10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
MCX10 |
1 | ||
| 43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE | ||||
| 43049-06020 |
MCX10 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-06010 |
MCX10 |
1 | ||
| 43247-06020 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43247-06010 |
MCX10..USA;MCX10..XL..CND W(*66) |
1 | ||
| 43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH | ||||
| 43409-06010 |
MCX10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-06080 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43410-06170 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43410-06080 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43410-06070 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43410-06170 |
MCX10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-41001 |
MCX10 |
1 | ||
| 43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH) | ||||
| 90080-11034 |
MCX10 |
6 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40010 |
MCX10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCX10 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90080-52036 |
MCX10 |
1 | ||
| 43446B - COVER, FRONT AXLE INBOARD JOINT, RH | ||||
| 43446-03020 |
MCX10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90080-46084 |
MCX10 |
1 | ||
| 42345-06060 |
MCX10 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90080-46109 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46106 |
MCX10 |
1 | ||
| 90080-46106 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 90080-46084 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46238 |
MCX10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46173 |
MCX10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCX10 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCX10 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCX10 |
1 | ||
| 43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43459-06010 |
MCX10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09340 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43470-09170 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43470-09180 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43470-09180 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH | ||||
| 43489-03010 |
MCX10 |
3 | ||
| Linked diagrams | ||||
| 1107 | ||||

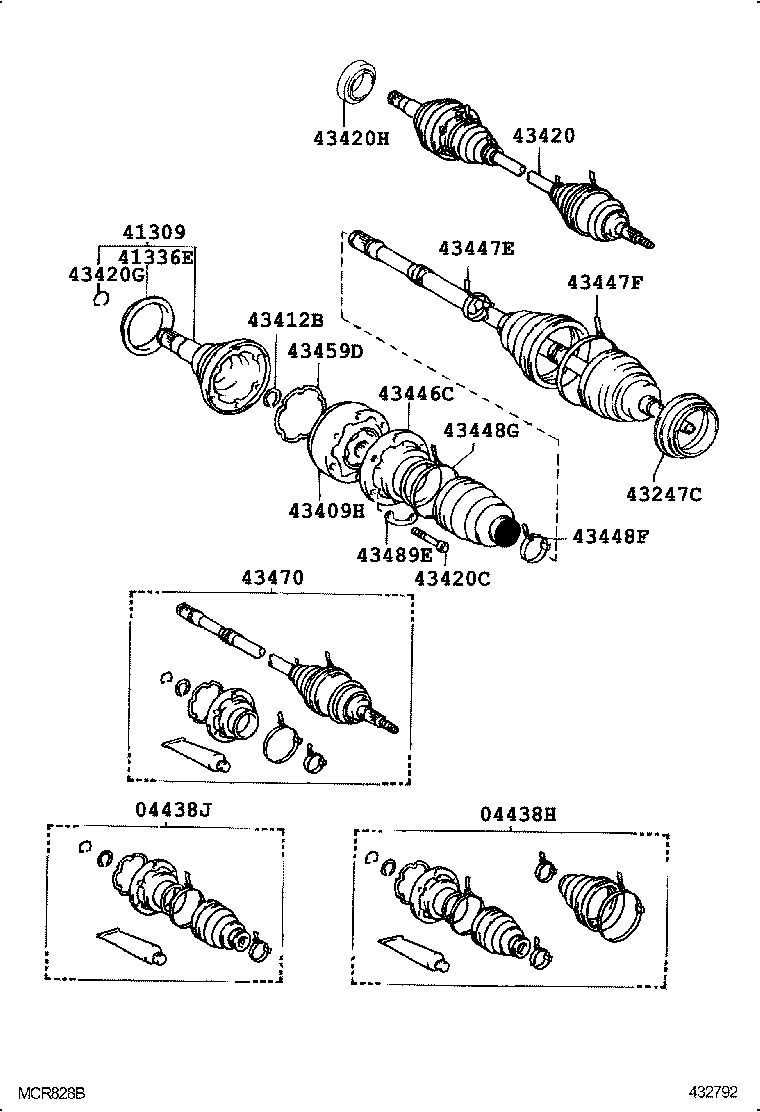

(9409-9610)
LH,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-06100 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06060 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06100 |
MCX10 |
1 | ||
| 04438-06060 |
MCX10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06050 |
MCX10 |
1 | ||
| 04438-06050 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 |
1 | ||
| 41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-06020 |
MCX10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCX10 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-06020 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43247-06010 |
MCX10 |
1 | ||
| 43247-06010 |
MCX10..USA;MCX10..XL..CND W(*66) |
1 | ||
| 43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH | ||||
| 43409-06010 |
MCX10 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90080-52036 |
MCX10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-06070 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43420-06170 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43420-06080 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43420-06170 |
MCX10 |
1 | ||
| 43420-06080 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH) | ||||
| 90080-11034 |
MCX10 |
6 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCX10 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50011 |
MCX10 |
1 | ||
| 43446C - COVER, FRONT AXLE INBOARD JOINT, LH | ||||
| 43446-03020 |
MCX10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06060 |
MCX10 |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06070 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46084 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 90080-46238 |
MCX10 |
1 | ||
| 90080-46106 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46106 |
MCX10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46173 |
MCX10 |
1 | ||
| 43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43459-06010 |
MCX10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09180 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43470-09340 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43470-09340 |
MCX10 |
1 | ||
| 43470-09170 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43470-09180 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH | ||||
| 43489-03010 |
MCX10 |
3 | ||

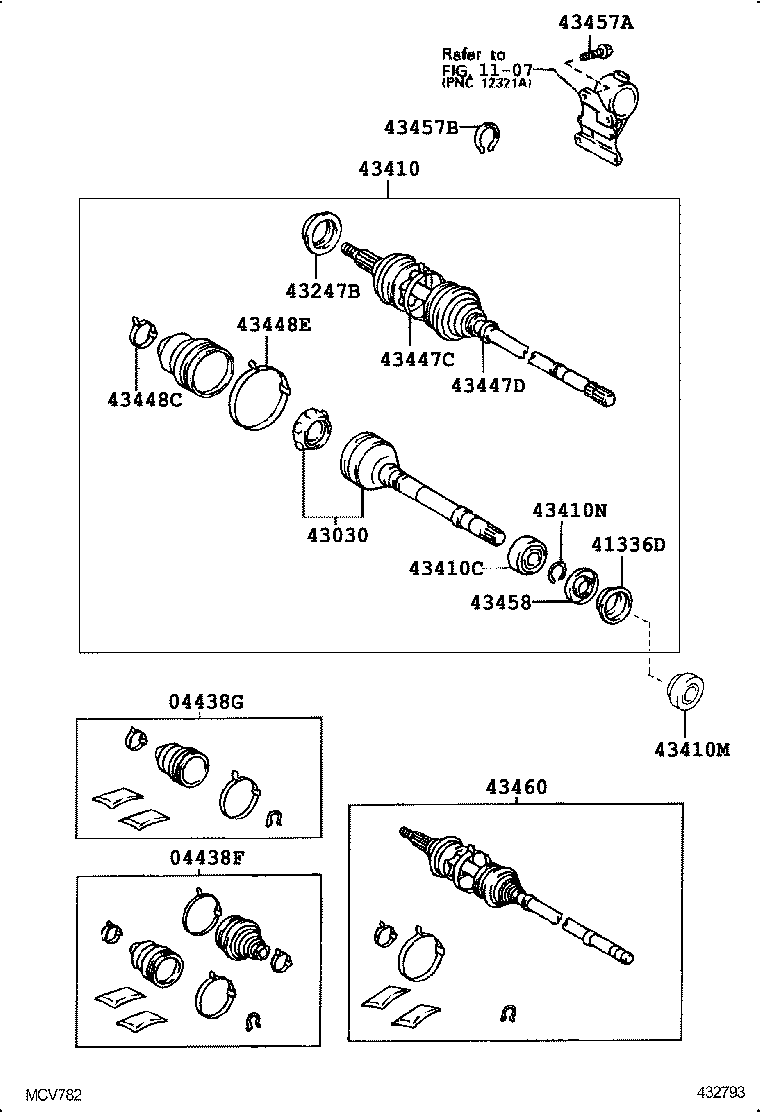

(9608- )
RH,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-06060 |
MCX10 |
1 | ||
| 04438-06100 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06060 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06100 |
MCX10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06090 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06050 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 |
1 | ||
| 04438-06050 |
MCX10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
MCX10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-06040 |
MCX10 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-06010 |
MCX10 |
1 | ||
| 43247-06020 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43247-06010 |
MCX10..USA;MCX10..XL..CND W(*66) |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-06080 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43410-06170 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43410-06080 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43410-06070 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43410-06170 |
MCX10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90369-41001 |
MCX10 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-40010 |
MCX10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCX10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90080-46084 |
MCX10 |
1 | ||
| 42345-06060 |
MCX10 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90080-46109 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46106 |
MCX10 |
1 | ||
| 90080-46106 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 90080-46084 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46238 |
MCX10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46173 |
MCX10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCX10 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCX10 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCX10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09340 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43470-09170 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43470-09180 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43470-09180 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||

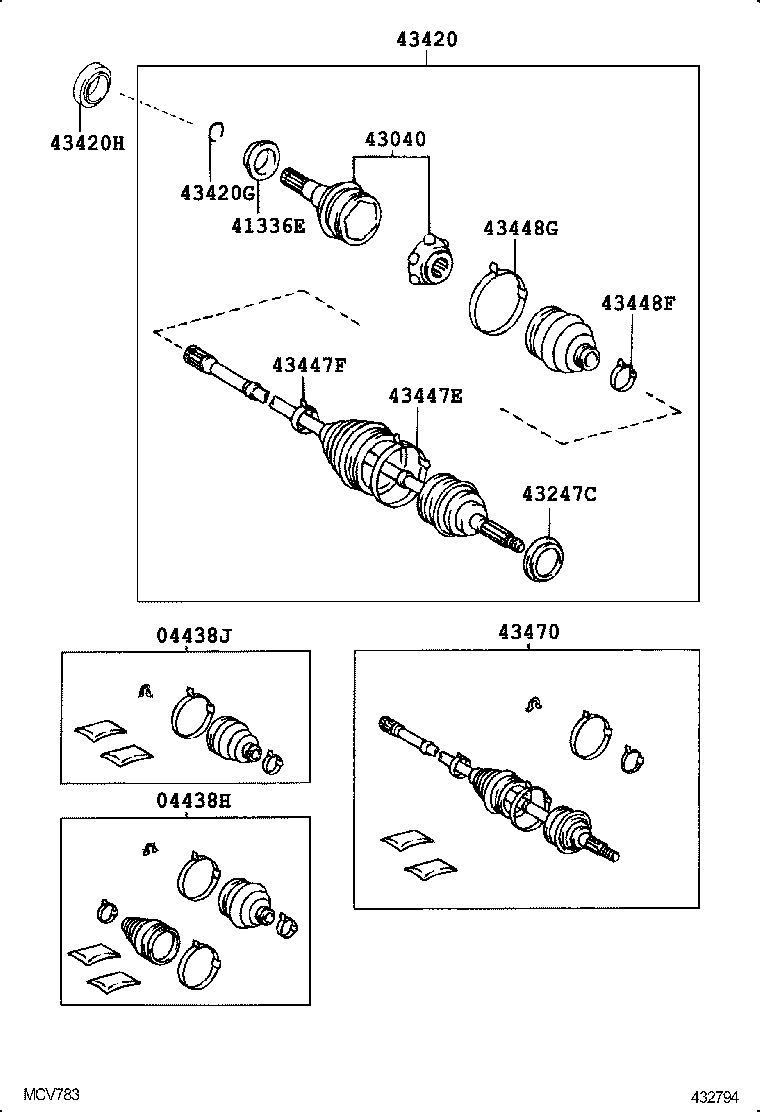

(9608- )
LH,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-06100 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06060 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06100 |
MCX10 |
1 | ||
| 04438-06060 |
MCX10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06050 |
MCX10 |
1 | ||
| 04438-06050 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 04438-06090 |
MCX10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCX10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-06050 |
MCX10 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-06020 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43247-06010 |
MCX10 |
1 | ||
| 43247-06010 |
MCX10..USA;MCX10..XL..CND W(*66) |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-06070 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43420-06170 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43420-06080 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43420-06170 |
MCX10 |
1 | ||
| 43420-06080 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCX10 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50011 |
MCX10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06060 |
MCX10 |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06070 |
MCX10 |
1 | ||
| 42345-06070 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46109 |
MCX10 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46084 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 90080-46084 |
MCX10 |
1 | ||
| 90080-46238 |
MCX10 |
1 | ||
| 90080-46106 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90080-46106 |
MCX10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90080-46173 |
MCX10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09180 |
MCX10..USA;MCX10..XL..CND W(ABS) |
1 | ||
| 43470-09340 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 43470-09340 |
MCX10 |
1 | ||
| 43470-09170 |
MCX10..USA;MCX10..XL..CND |
1 | ||
| 43470-09180 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
