GSX50L-AEZSBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )GSX50

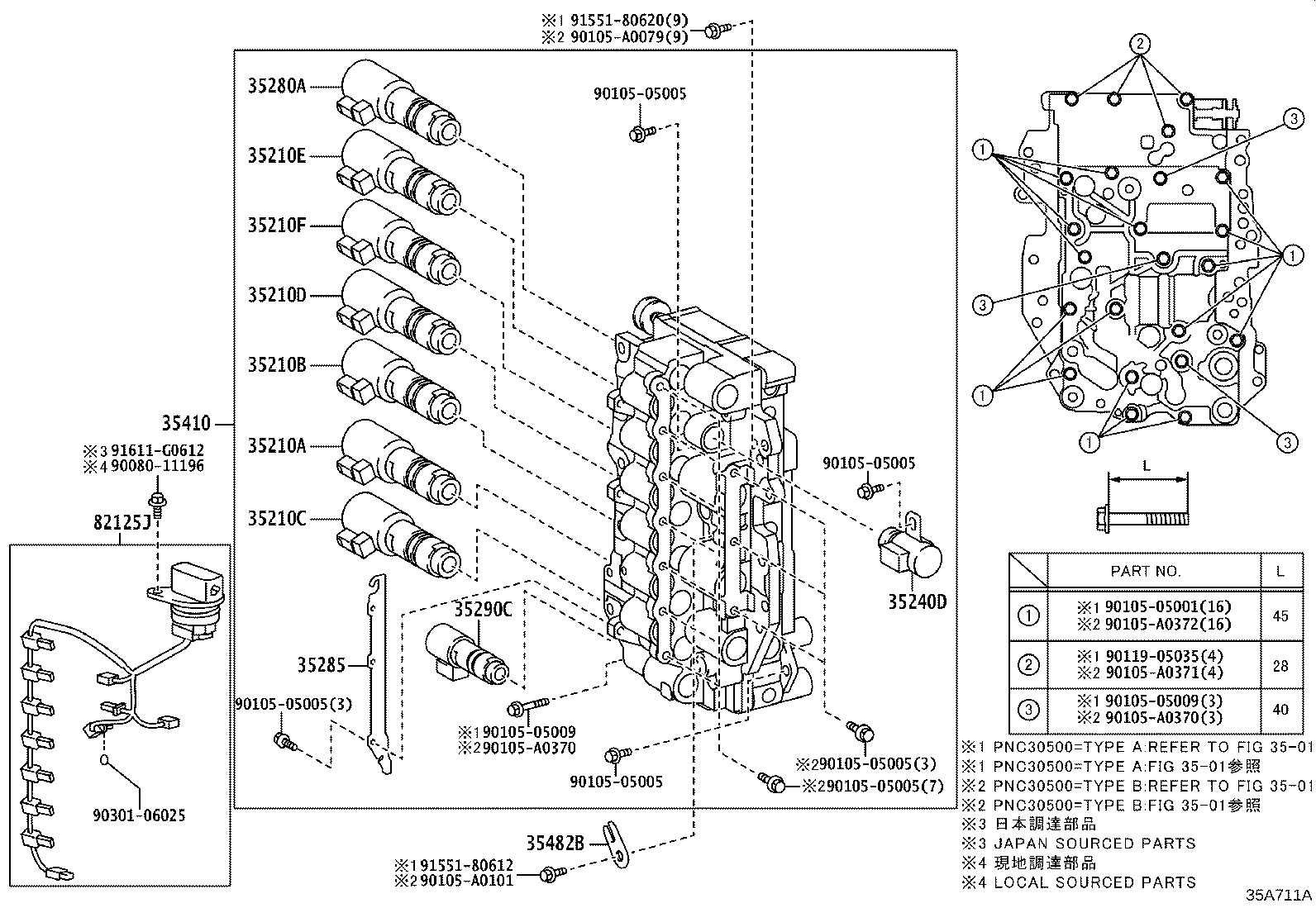

Click highlighted areas on diagram

UA80E

diagram 35210A 35210B 35210C 35210D 35210E 35210F 35240D 35280A 35285 35290C 35410 35482B 82125J 9008011196 9010505001 9010505005 9010505005 9010505005 9010505005 9010505005 9010505005 9010505009 9010505009 90105A0079 90105A0101 90105A0370 90105A0370 90105A0371 90105A0372 9011905035 9030106025 9155180612 9155180620 91611G0612
Part # Description Qty Price
35210A - VALVE, SOLENOID(SL1)
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210B - VALVE, SOLENOID(SL3)
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35210C - VALVE, SOLENOID(SL2)
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35210D - VALVE, SOLENOID(SL4)
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210E - VALVE, SOLENOID(SL5)
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210F - VALVE, SOLENOID(SL6)
35210-48020

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35210-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35240D - VALVE, SOLENOID(SL)
35240-48020

GSX50

 1
35280A - VALVE, SOLENOID(SLU)
35280-48030

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35280-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35285 - PLATE, SOLENOID LOCK
35285-06020

GSX50

TYPE B:REFER 35-01

 1
35285-48030

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35290C - VALVE, SOLENOID(SLT)
35290-48030

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35290-06010

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-06050

GSX50

TYPE B:REFER 35-01

 1
35410-48090

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35482B - CLAMP, TEMPERATURE SENSOR
35482-73010

GSX50

 1
82125J - WIRE, TRANSMISSION
82125-33171

AXXA55,GSX50

(J)

 1
82125-06281

AXXA55,GSX50

(L)

 1
Common parts
90080-11196
90105-05001
90105-05005
90105-05009
90105-A0079
90105-A0101
90105-A0370
90105-A0371
90105-A0372
90119-05035
90301-06025
91551-80612
91551-80620
91611-G0612
