GSX50L-AEZSBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804- )

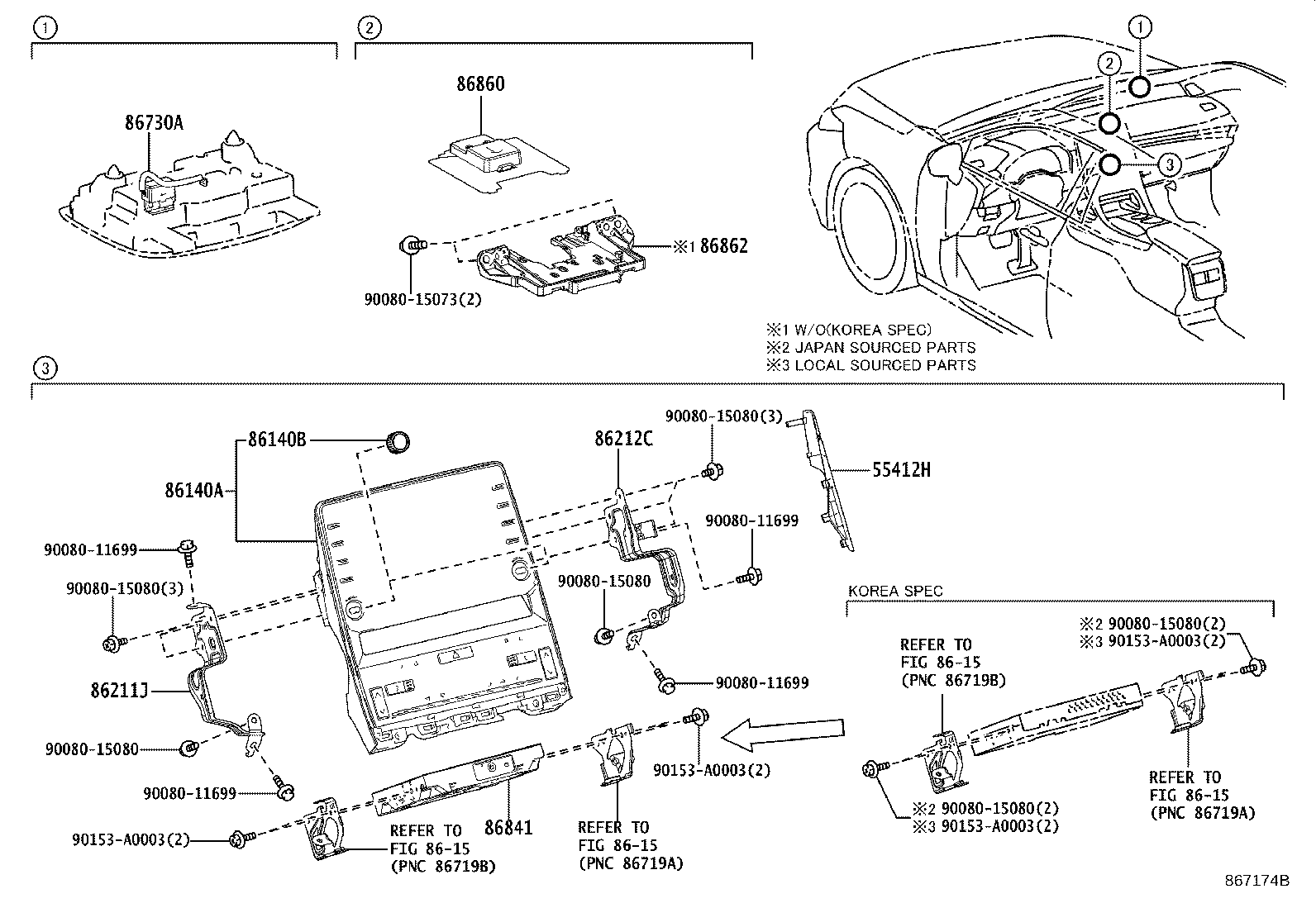

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412H - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-07030 |
AXXH50,GSX50 |
1 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-07200 |
GSX50..LIMD,TOU PIONEER |
1 | ||
| 86140-07201 |
GSX50..LIMD,TOU PIONEER |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25302 |
AXXH50,GSX50 |
2 | ||
| 86211J - BRACKET, RADIO RECEIVER, NO.1 | ||||
| 86211-07030 |
AXXH50,GSX50 |
1 | ||
| 86212C - BRACKET, RADIO RECEIVER, NO.2 | ||||
| 86212-07060 |
AXXH50,GSX50 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-06080 |
AXXH50,GSX50 |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-07051 |
AXXH50,GSX50..LIMD,TOU |
1 | ||
| 86840-07050 |
AXXH50,GSX50..LIMD,TOU |
1 | ||
| 86840-0R013 |
AXXH50,GSX50..LIMD,TOU |
1 | ||
| 86840-07052 |
AXXH50,GSX50..LIMD,TOU |
1 | ||
| 86840-0R012 |
AXXH50,GSX50..LIMD,TOU |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86880-06010 |
AXXH50,GSX50 |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-58020 |
AXXH50,GSX50 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15073 | ||||
| 90080-15080 | ||||
| 90153-A0003 | ||||
| Linked diagrams | ||||
| 8615 | ||||
