GSX50L-AEZSBA (2018)
Toyota Avalon
Production
Apr 2018
-
Aug 2020
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1804- )

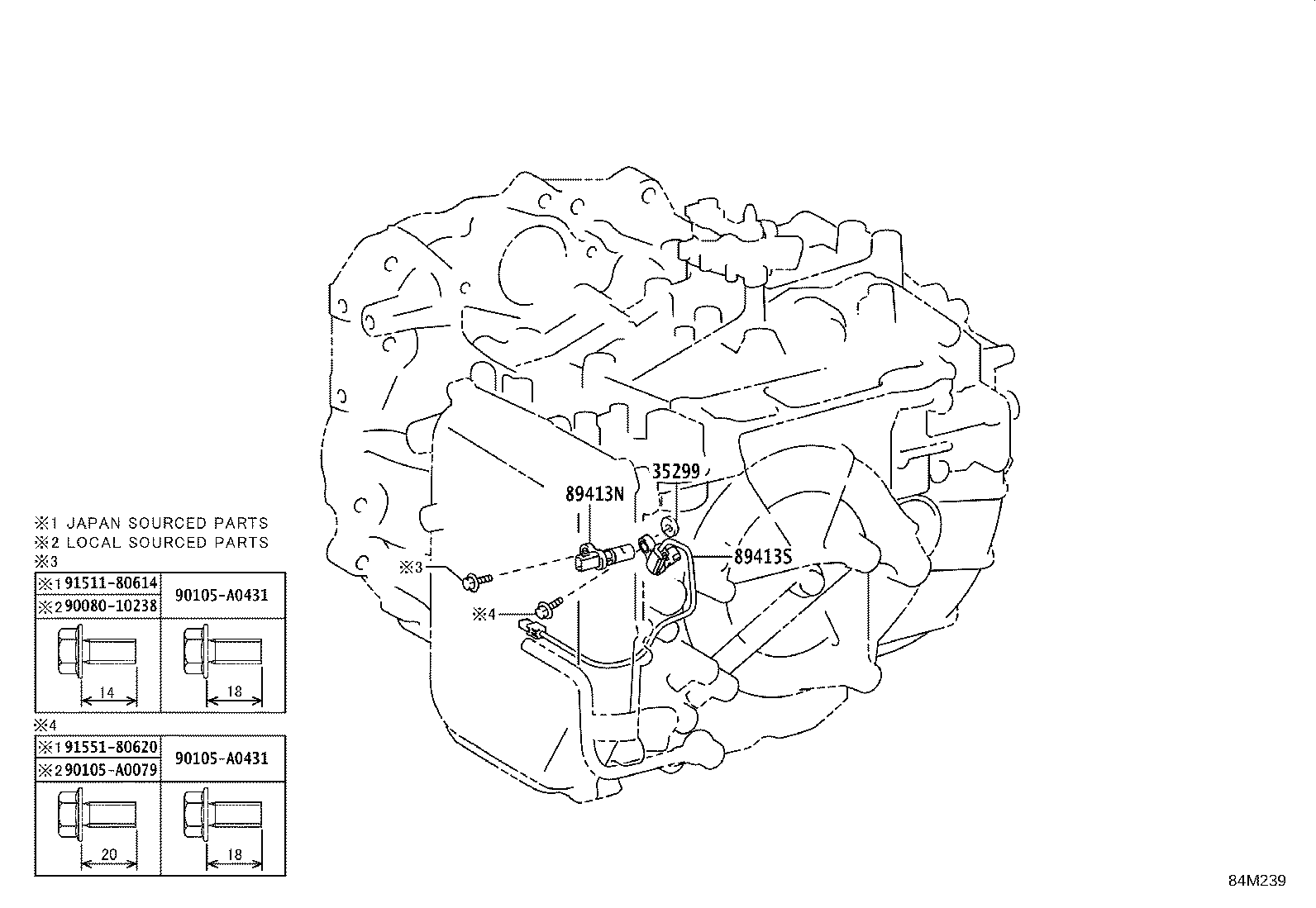

Click highlighted areas on diagram
UA80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35299 - SPACER, TRANSMISSION REVOLUTION SENSOR | ||||
| 35469-33020 |
GSX50 |
1 | ||
| 89413N - SENSOR, TRANSMISSION REVOLUTION, (NT) | ||||
| 89413-33041 |
GSX50 (J) |
1 | ||
| 89413-06021 |
GSX50 (L) |
1 | ||
| 89413-33040 |
GSX50 |
1 | ||
| 89413S - SENSOR, TRANSMISSION REVOLUTION (NC) | ||||
| 89413-33050 |
GSX50 |
1 | ||
| 89413-33051 |
GSX50 (J) |
1 | ||
| 89413-06031 |
GSX50 (L) |
1 | ||
| Common parts | ||||
| 90080-10238 | ||||
| 90105-A0079 | ||||
| 90105-A0431 | ||||
| 91511-80614 | ||||
| 91551-80620 | ||||
