GSX50L-AEZSBA (2018)

Toyota Avalon

Production Apr 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

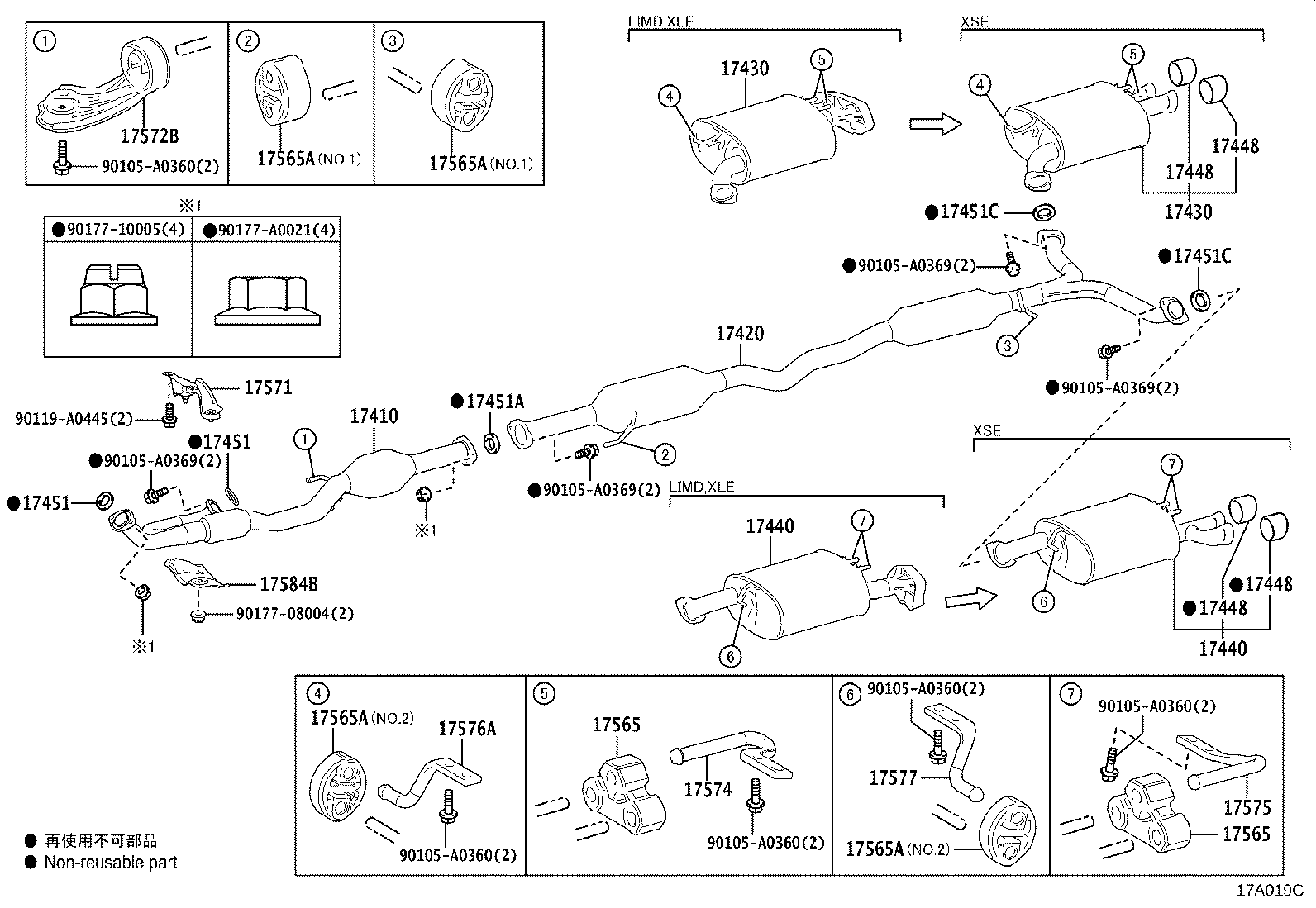

(1804- )2GRFKS

Click highlighted areas on diagram

diagram 17410 17420 17430 17430 17440 17440 17448 17448 17448 17448 17451 17451 17451A 17451C 17451C 17565 17565 17565A 17565A 17565A 17565A 17571 17572B 17574 17575 17576A 17577 17584B 90105A0360 90105A0360 90105A0360 90105A0360 90105A0360 90105A0369 90105A0369 90105A0369 90105A0369 90119A0445 9017708004 9017710005 90177A0021
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0P380

2GRFKS..GSX50

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0P510

2GRFKS..GSX50..TOU

 1
17420-0P511

2GRFKS..GSX50..TOU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P580

2GRFKS..GSX50..TOU

 1
17430-0P581

2GRFKS..GSX50..TOU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P580

2GRFKS..GSX50..TOU

 1
17430-0P581

2GRFKS..GSX50..TOU

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-0P180

2GRFKS..GSX50..TOU

 1
17440-0P181

2GRFKS..GSX50..TOU

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-0P180

2GRFKS..GSX50..TOU

 1
17440-0P181

2GRFKS..GSX50..TOU

 1
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17451 - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GSX50

(J)

 1
90080-43036

2GRFKS..GSX50

(L)

 1
17451 - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GSX50

(J)

 1
90080-43036

2GRFKS..GSX50

(L)

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-A6004

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17451C - GASKET, EXHAUST PIPE, NO.3
90917-A6003

2GRFKS..GSX50

 2
17451C - GASKET, EXHAUST PIPE, NO.3
90917-A6003

2GRFKS..GSX50

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-F0010

2GRFKS..GSX50

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-F0010

2GRFKS..GSX50

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0P250

2GRFKS..GSX50

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-0P170

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-0P140

2GRFKS..GSX50

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0P200

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-0P150

2GRFKS..GSX50..TOU

 1
17584-0P150

2GRFKS..GSX50..TOU

(L)

 1
17584-31050

2GRFKS..GSX50..TOU

(J)

 1
Common parts
90105-A0360
90105-A0369
90119-A0445
90177-08004
90177-10005
90177-A0021

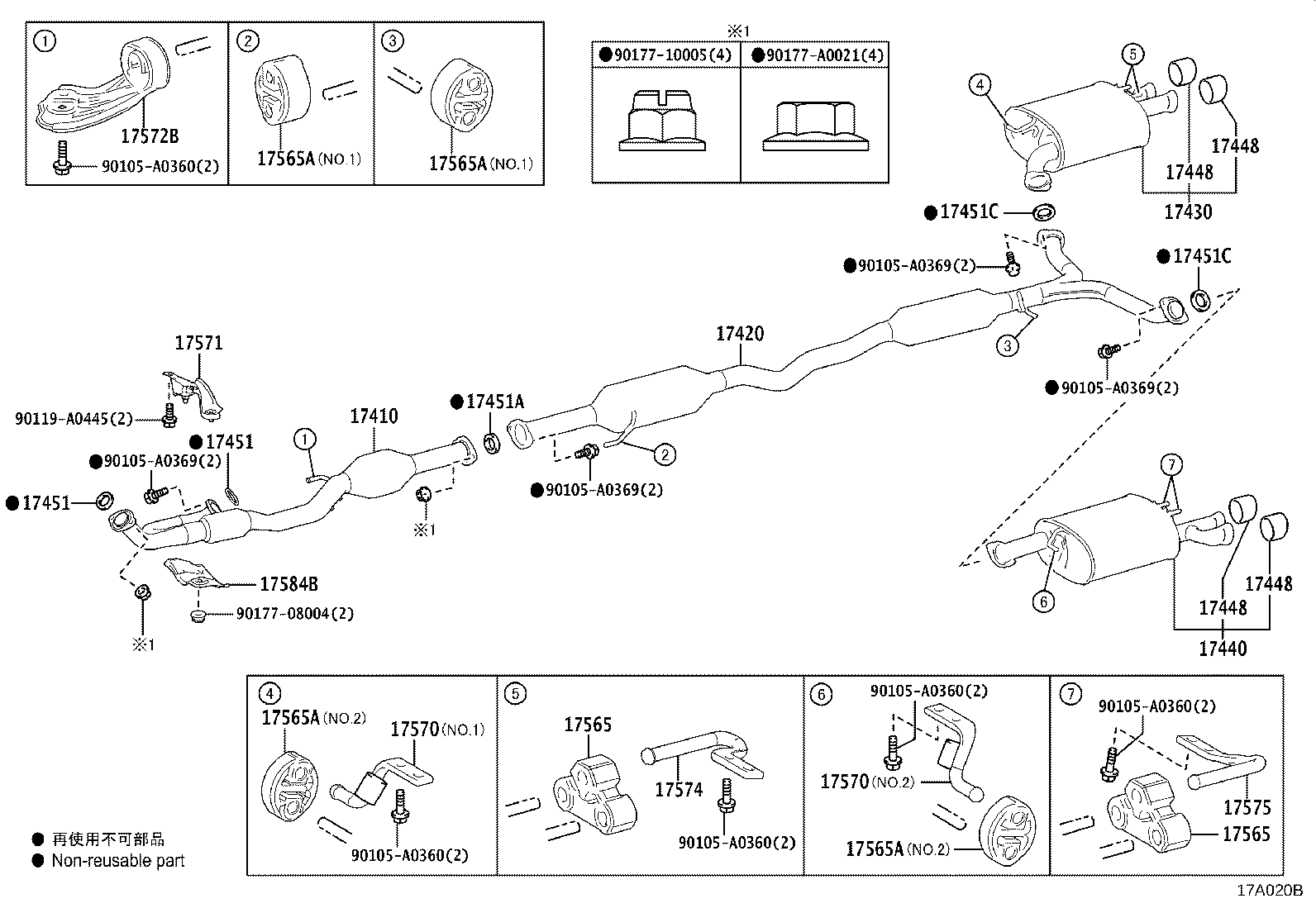

(1804- )2GRFKS..TOU,XSE

Click highlighted areas on diagram

SPORT

diagram 17410 17420 17430 17440 17448 17448 17448 17448 17451 17451 17451A 17451C 17451C 17565 17565 17565A 17565A 17565A 17565A 17570 17570 17571 17572B 17574 17575 17584B 90105A0360 90105A0360 90105A0360 90105A0360 90105A0360 90105A0369 90105A0369 90105A0369 90105A0369 90119A0445 9017708004 9017710005 90177A0021
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0P380

2GRFKS..GSX50

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0P510

2GRFKS..GSX50..TOU

 1
17420-0P511

2GRFKS..GSX50..TOU

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0P580

2GRFKS..GSX50..TOU

 1
17430-0P581

2GRFKS..GSX50..TOU

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-0P180

2GRFKS..GSX50..TOU

 1
17440-0P181

2GRFKS..GSX50..TOU

 1
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17448 - BAFFLE, TAIL PIPE
17448-31160

2GRFKS..GSX50..TOU,XSE

 4
17451 - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GSX50

(J)

 1
90080-43036

2GRFKS..GSX50

(L)

 1
17451 - GASKET, EXHAUST PIPE
90917-06089

2GRFKS..GSX50

(J)

 1
90080-43036

2GRFKS..GSX50

(L)

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-A6004

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17451C - GASKET, EXHAUST PIPE, NO.3
90917-A6003

2GRFKS..GSX50

 2
17451C - GASKET, EXHAUST PIPE, NO.3
90917-A6003

2GRFKS..GSX50

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-F0010

2GRFKS..GSX50

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17566-F0010

2GRFKS..GSX50

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P051

2GRFKS..GSX50

NO.2

 2
17565-0P041

2GRFKS..GSX50

NO.1

 2
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-31040

2GRFKS..GSX50..TOU

NO.1

 1
17570-31050

2GRFKS..GSX50..TOU

NO.2

 1
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-31040

2GRFKS..GSX50..TOU

NO.1

 1
17570-31050

2GRFKS..GSX50..TOU

NO.2

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0P250

2GRFKS..GSX50

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-0P170

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-0P140

2GRFKS..GSX50

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-0P200

A25AFXS,2GRFKS..AXXH50,GSX50

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-0P150

2GRFKS..GSX50..TOU

 1
17584-0P150

2GRFKS..GSX50..TOU

(L)

 1
17584-31050

2GRFKS..GSX50..TOU

(J)

 1
Common parts
90105-A0360
90105-A0369
90119-A0445
90177-08004
90177-10005
90177-A0021
